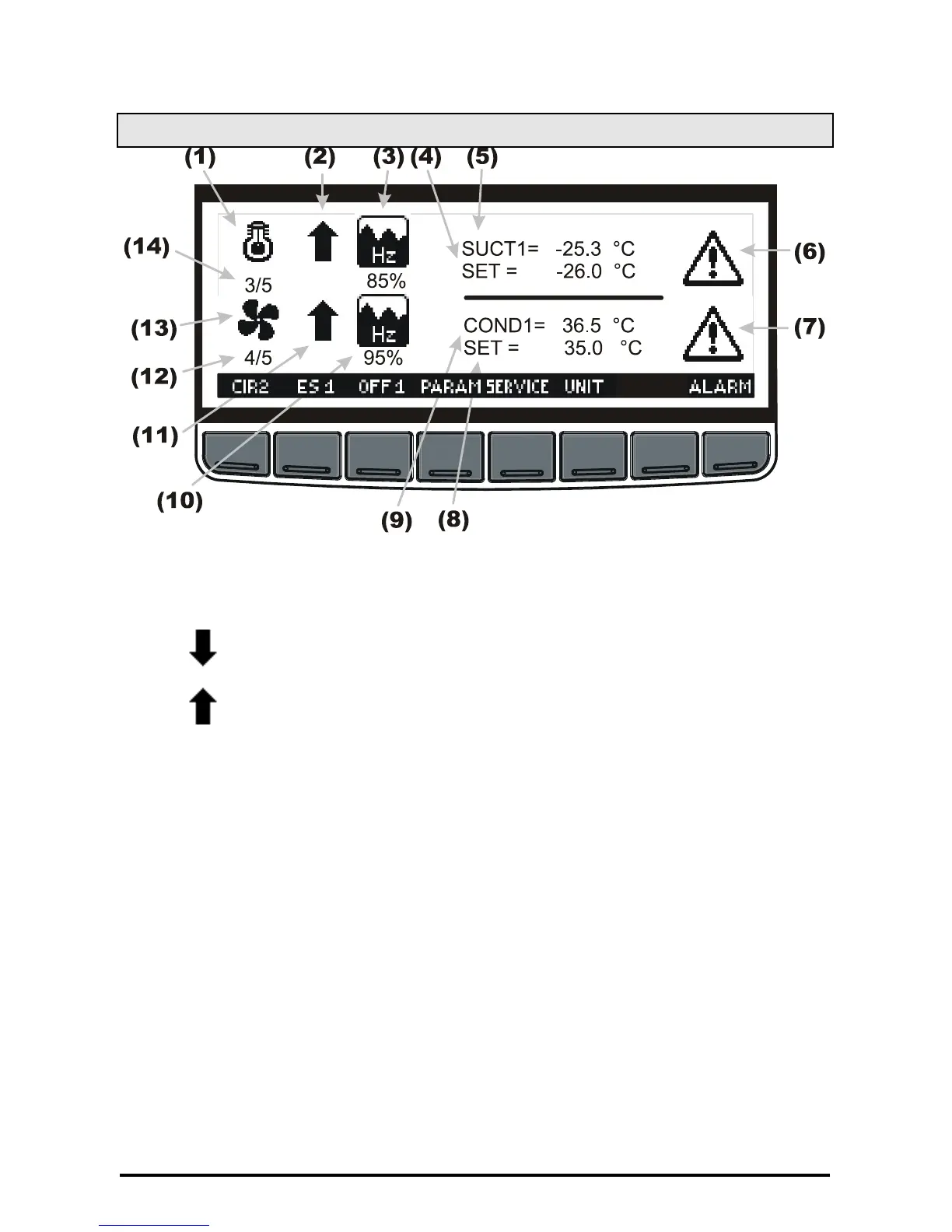

3.2 Display visualization
(1) Symbol of compressor: it’s present for the following configuration of the parameter C0.
C0 = 1A0D; 1A1D, 2A0D, 2A1D, “2A2D
(2) Status of the suction section:
The pressure (temperature) is below the regulation band and the capacity of the plant
is decreasing
The pressure (temperature) is above the regulation band and the capacity of the plant
is increasing
(3) Analog output status for frequency compressor: it’s present only if a frequency
compressor is used. It displays the percentage of the analog output driving the inverter.
Not present if the “free” analog output is used.
(4) Suction pressure (temperature) set point: : it’s present for the following configuration of
the parameter C0: 1A0D; 1A1D, 2A0D, 2A1D, “2A2D
(5) Current value of suction pressure (temperature): it’s present for the following
configuration of the parameter C0: 1A0D; 1A1D, 2A0D, 2A1D, “2A2D
(6) Alarm: it’s display when an alarm happens in suction section
(7) Alarm: it’s display when an alarm happens in delivery section
(8) Delivery pressure (temperature) set point: it’s present for the following configuration of
the parameter C0: 0A1D; 1A1D, 0A2D, 1A2D, “2A2D
(9) Current value of delivery pressure (temperature): it’s present for the following
configuration of the parameter C0: 0A1D; 1A1D, 0A2D, 1A2D, “2A2D
