1592021021 XC1008-1011-1015D GB A5 r.1.5A 12.10.2009 XC1008-1011-1015D 16/66
4.2 How to program an instrument using a HOT KEY
The XC1000D uses a standard Dixell HOT KEY (cod. DK00000100).
4.2.1 How to program the HOT KEY.
1. Program one controller with the front keypad.
2. When the controller is ON, insert the “Hot key”. Enter the SERVICE menu and push the UPL
key. The display will shows the message “PLEASE WAIT”.
3. The instrument will shows during 10sec:
“END”: the programming phase is ended successfully
the “ERROR” message is displayed for failed programming. In this case push again the UPL
key if you want to restart the upload again.
4.2.2 How to program an instument using a HOT KEY
1. Switch off the controller or enter the SERVICE menu.
2. Insert a programmed “Hot Key” into the 5 PIN receptacle
3. Turn the controller on, or push the DOL key of the SERVICE menu.
4. Automatically the parameter list of the “Hot Key” is downloaded into the Controller memory,
the “doL” message is blinking. The display will shows the message “PLEASE WAIT”.
4. The instrument will shows during 10sec:
“END”: the programming phase is ended successfully.
Remove the “Hot Key”, the XC1000D will restart working with the new parameters.
NOTE: until the “Hot Key” is inserted, the instrument doesn’t start the regulation.
the “ERROR” message is displayed for failed programming. In this case push again the UPL
key if you want to restart the upload again.After 10 seconds the instrument will restart working
with the new parameters.
4.3 How to see the values of analog outputs
Procedure:
1. Enter the SERVICE menu
2. Select ANALOG OUTPUTS sub-menu
3. Push the SET key.

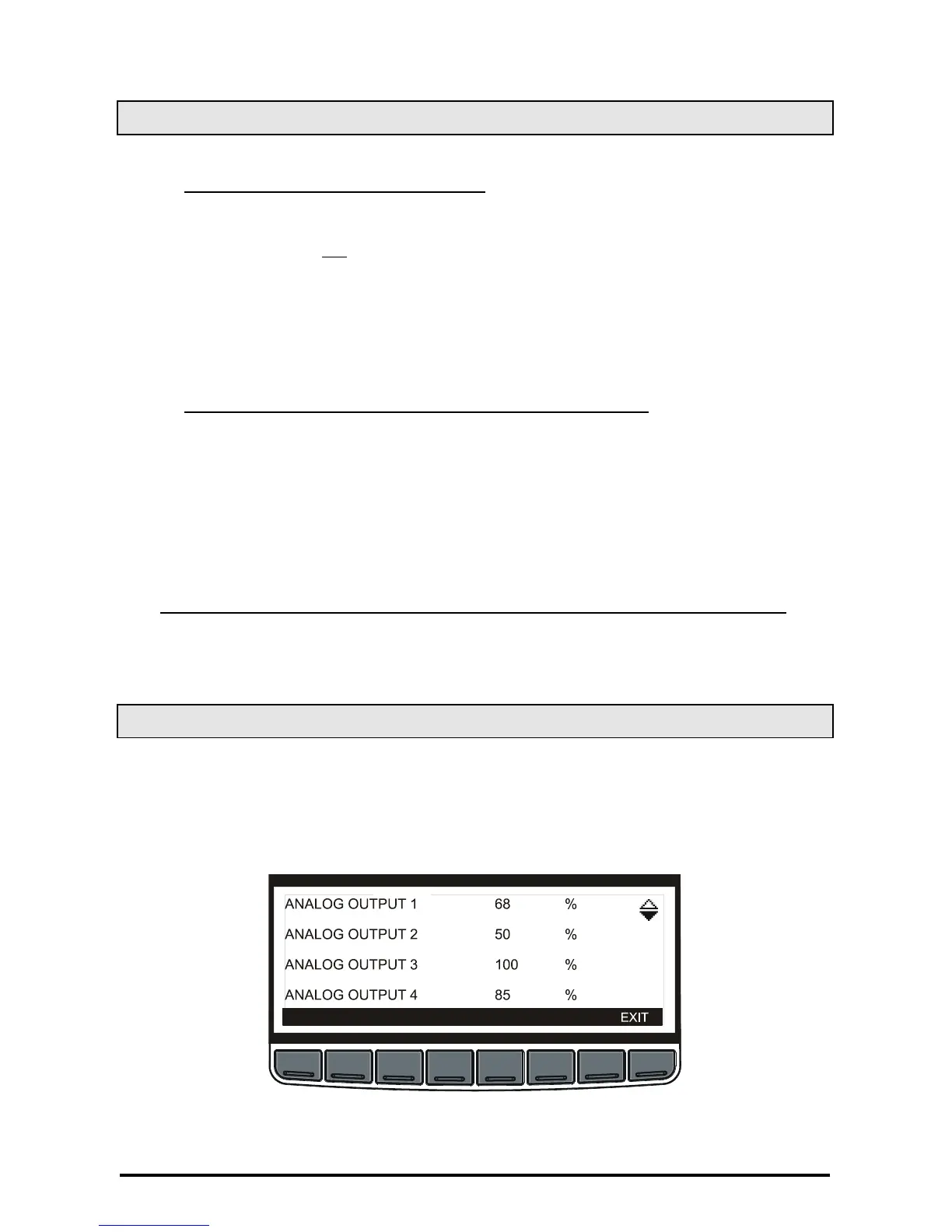

The ANALOG OUTPUTS sub-menu displays the status of the analog outputs of the controller, with
the following layout:
