Emerson XC1008D User Manual

1592021021 XC1008-1011-1015D GB A5 r.1.5A 12.10.2009 XC1008-1011-1015D 48/66
EX.

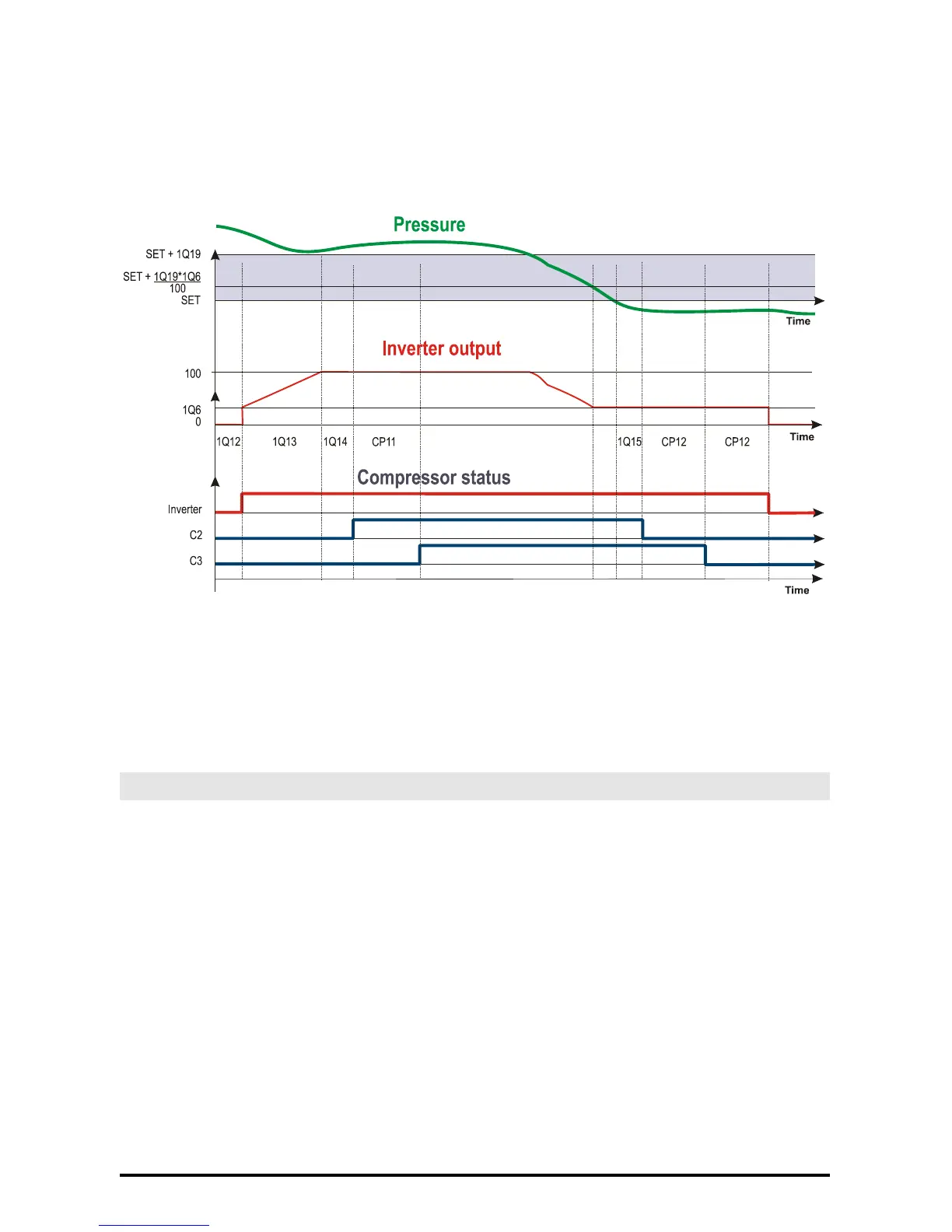

3 compressors, 1 frequency compressor,
C1 = FRQ1 C37 = db 1Q8 = 100
C2 = CPR1 1Q2 = CPR
C3 = CPR1 1Q7 = 100
where
1Q6 Minimum value for analog out.1
0 ÷ 100 %
1Q12 Regulation delay after entering the regulation band
0 ÷ 255 (sec)
1Q14 Analog output 1 permanency at 100% before load activation
0 ÷ 255 (sec)
1Q15 Delay between pressure (temperature) goes down the set point and start of
analog output 1 decreasing
0 ÷ 255 (sec)
CP11 2 different load start delay
0 ÷ 99.5 (min.1sec)
CP12 2 different load off delay
0 ÷ 99.5 (min.1sec)
