Electrical

Schematics

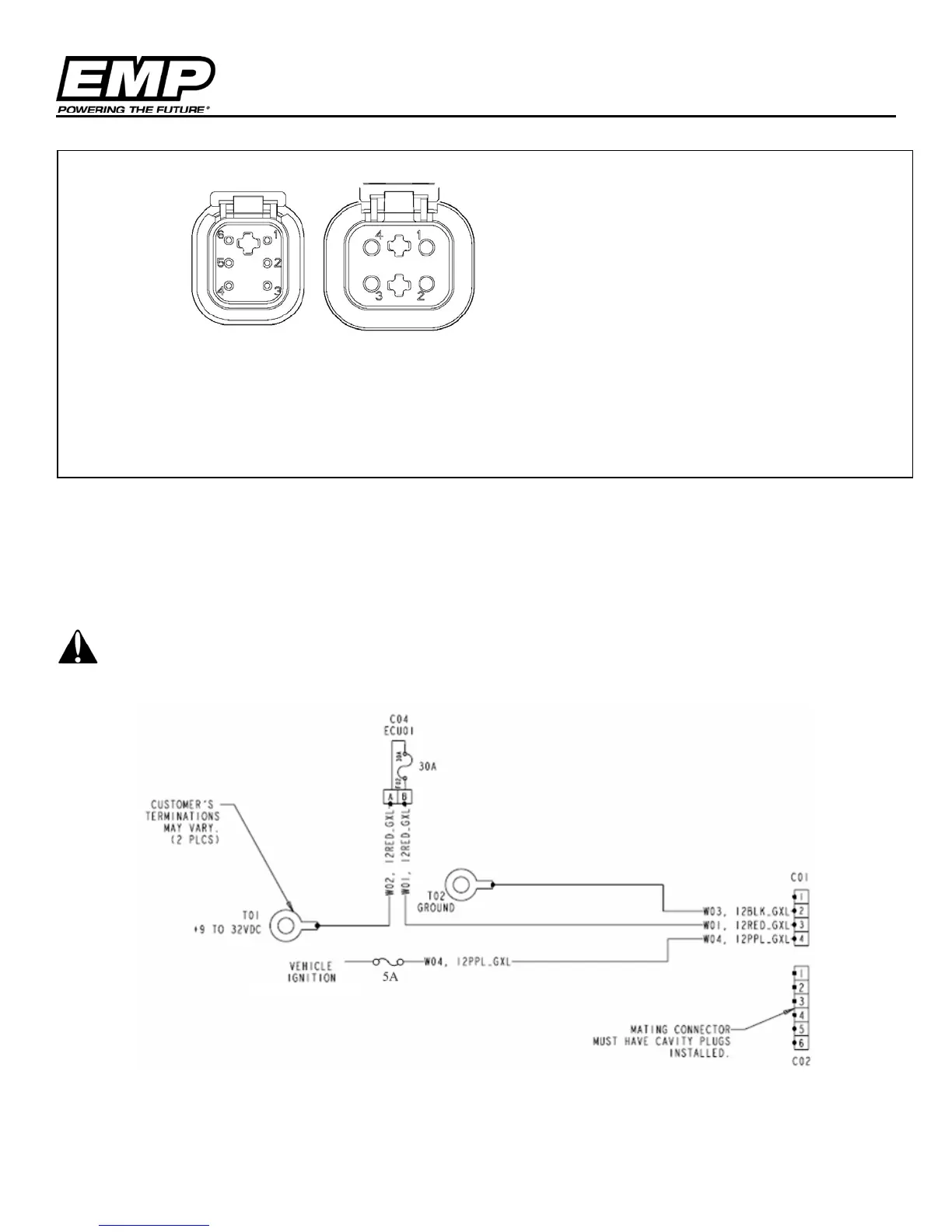

Controller Connectors

Mating Connectors

The mating connectors and pins are available from EMP in kit #3170001077 for the 6 pin and #3170001078 for

the 4 pin connector.

IF CAN OR SERIAL TTL CONTROL IS NOT USED THE 6 PIN DTM CONNECTOR MUST BE BLOCKED OFF TO

PREVENT ENTRY OF WATER OR DIRT WHICH WILL RESULT IN DAMAGE TO THE PUMP. A BLOCK OFF PLUG,

EMP P/N 3250001030 CAN BE PURCHASED.

Sample Wiring Schematic

NOTE:

These represent the controller connectors – not the mating harness

connectors.

NOTE: Addressing and motor status message information can be found in our

J1939 Motor Control Document, 9980010068

1 – CANH

2 – CAN SHIELD

3 – SERIAL GND

4 – SERIAL TX

5 – SERIAL RX

6 – CANL

1 – TEMP INPUT OR CAN ADDRESS

2 – GND

3 – BATT

4 - IGNITION
