Appendix A, WP29 and WP32 Testing
© 2013 EMP, Inc 22
Inlet Pressure Measurement Test Procedure
1. Install Instrumented WP29 and WP32 into the system.
a. If a non-instrumented WP29 and WP32 is to be used with an external sensor, ensure the
sensor is located within 2 inches of the pump inlet and 4 inches from the last bend in the
supply plumbing.
2. Application Simulation:
a. The pump shall be tested under the worst case conditions for the intended application.
b. If used in a pressurized system, test with the system pressure cap open to atmosphere
c. If used in a system where supplemental flow is provided, test at the minimum anticipated
supplemental system operation.
d. If possible, test at the highest anticipated fluid temperature.
3. Operate the pump using the service tool manual control, press F2 to connect
4. Once connected, go to the “Dash” by selecting F3 or the F3-Dash button on the service tool banner.

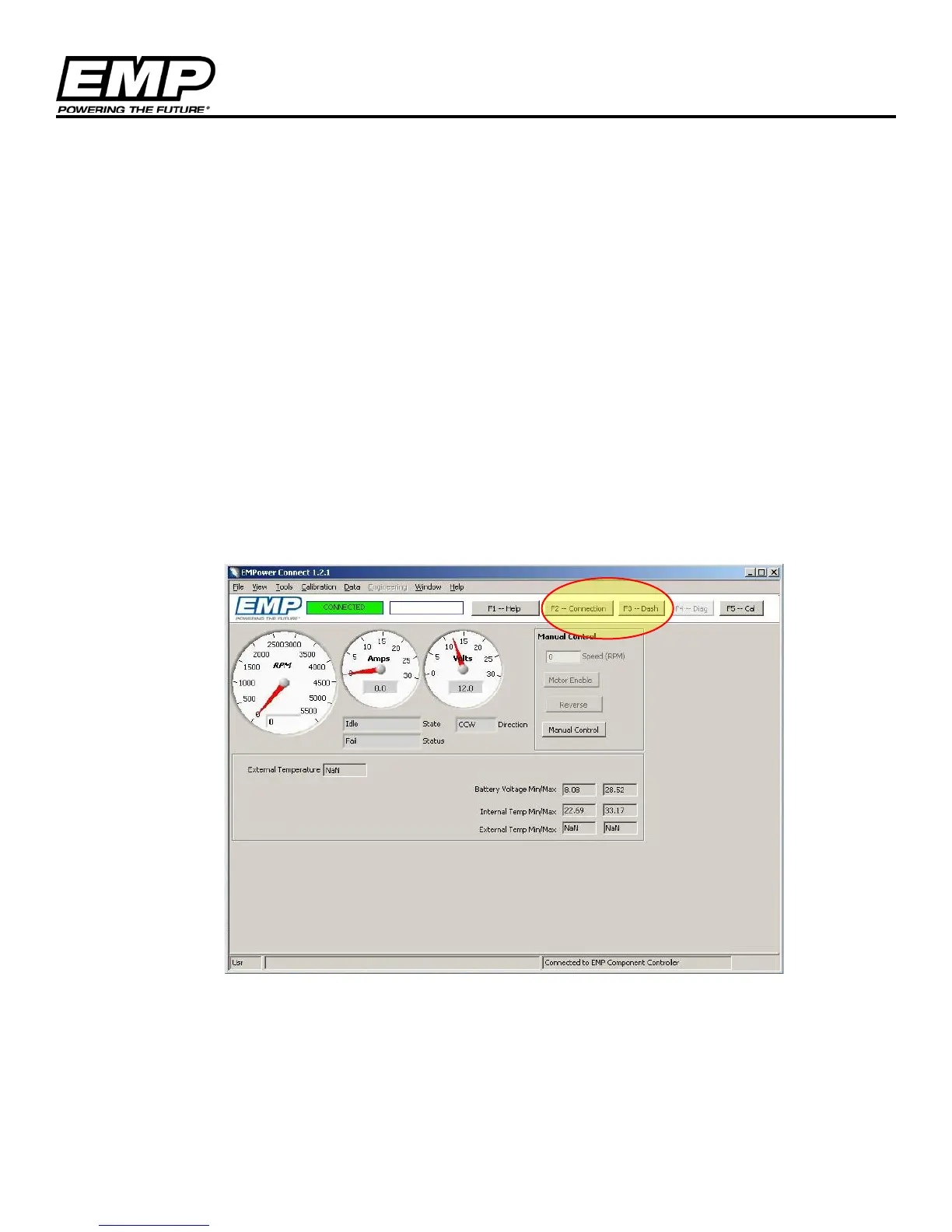

This will provide the following screen for the component control.
