EMP WP29 - Appendix A, WP29 and WP32 Installation Testing; Equipment Required for WP29 and WP32 Data Collection

Appendix A, WP29 and WP32 Testing
© 2013 EMP, Inc 21
Appendix A, WP29 and WP32 Installation Testing
The information provided in this document supplements the Installation Approval document and provides
detailed information for service tool use with the WP29 and WP32. The information within this document may
be helpful in developing unique system calibrations and mapping the operation of the cooling system.
Equipment Required for WP29 and WP32 Data Collection
1. Computer with the EMPower Connect service tool software installed.
2. Computer Interface Hardware with the WP29 and WP32
a. Using DLA: EMP Harness 3180001080 (may need power for DLA)
b. Using an EMP TTL: Service Tool EMP Kit # 7500038001
3. Data Acquisition Equipment Capabilities:
Pump Inlet Pressure
Required
-15 psi to 30 psi
Pump Outlet Pressure
Recommended
0 psi to 50 psi
Pump Inlet or Outlet
Temperature
Required
0°C to 100°C
EMP Service Tool
Required
Pump Speed Control,
Pump Current
Measurement,
Pump Voltage
Circuit Flow
Optional
Ensure Flow meter does
not generate a restriction in
the system.

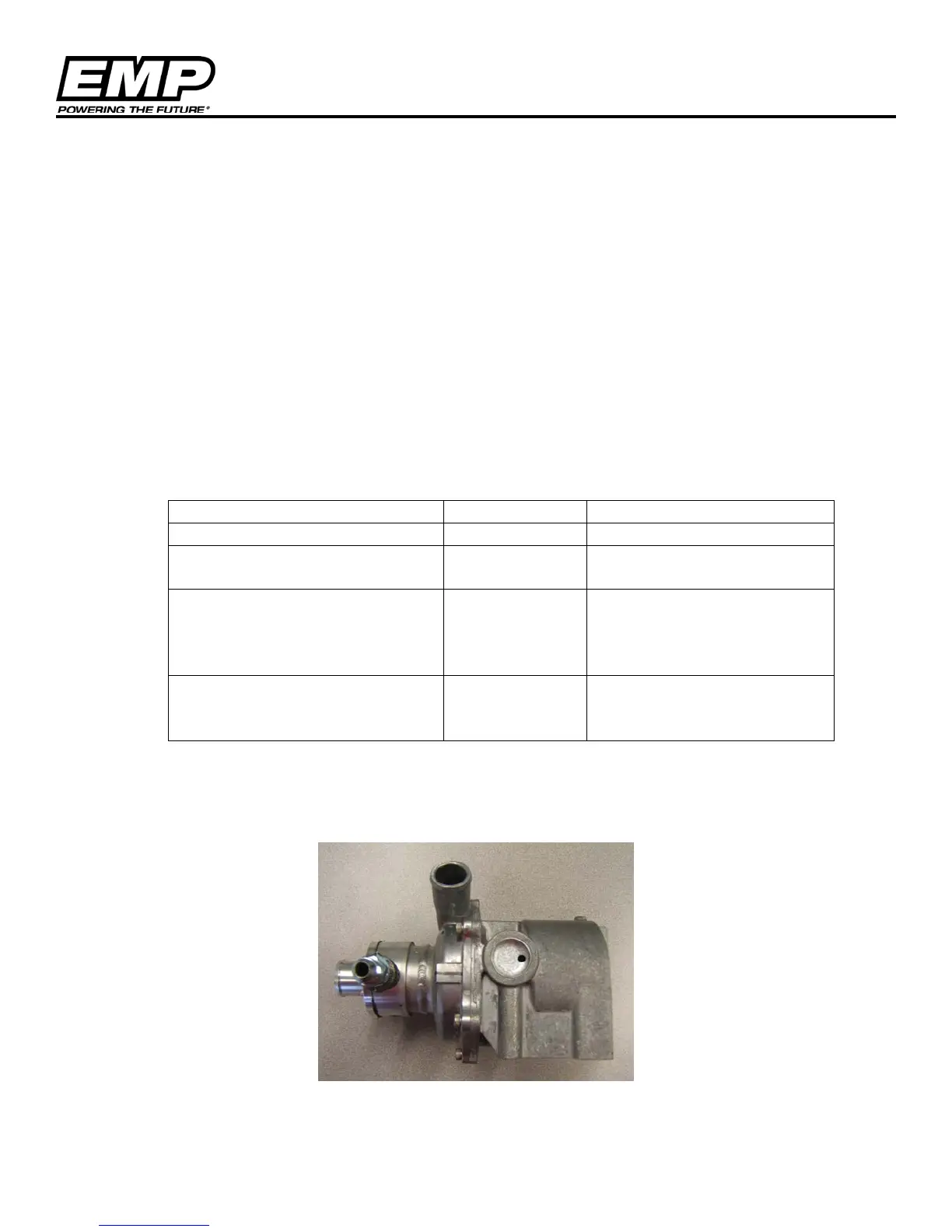

4. For inlet pressure measured within one inch of the pump inlet, a special test pump with an
instrumented inlet is available from EMP for installation approval testing. Contact EMP Engineering
for access to the test pump (shown below).
