Orientation
© 2013 EMP, Inc 17
Installation
Orientation Specific
For orientation specific pumps, acceptable pump orientations are tied to the individual pump part numbers.
The part number includes the motor stator for the appropriate voltage, the controller circuit board, and the vent
port configuration.

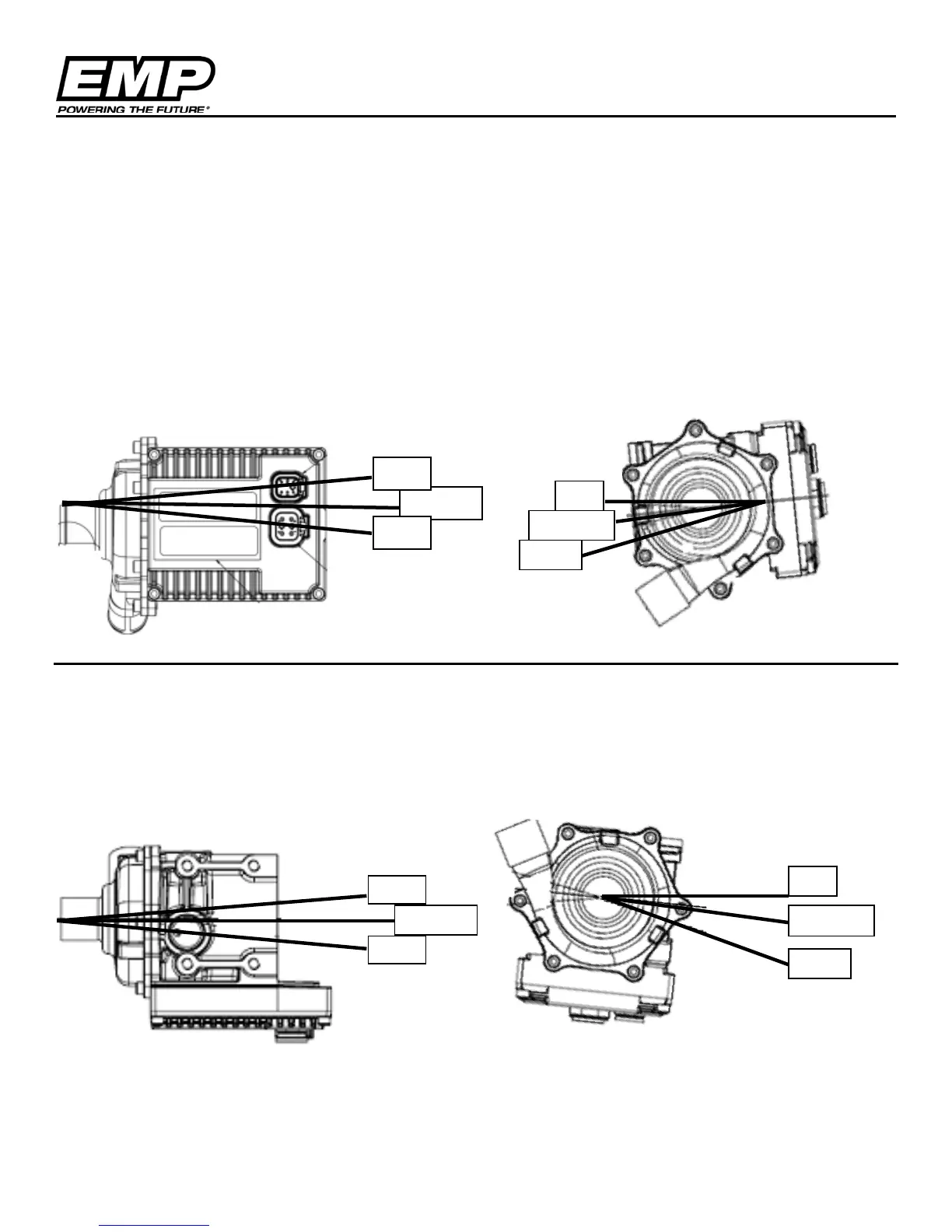

Vertical Controller Orientation
Part numbers for this orientation include:
1030002275, 1030002278, 1030002280, 1030002283, 1030002285, 1030002287, 1030085013, 1030085016,
1030085018, 1030085019, 1030085021, 1030085023
Horizontal Controller Orientation
Part numbers for this orientation include:
1030002276, 1030002277, 1030002279, 1030002284, 1030002286, 1030002288, 1030085014, 1030085015,
1030085017, 1030085020, 1030085022, 1030085024
0°
-5°Nom
-15°
0° Nom
10°
-10°
0° Nom
10°
-10°
0°
-5°Nom
-15°
