Appendix A, WP29 and WP32 Testing
© 2013 EMP, Inc 23

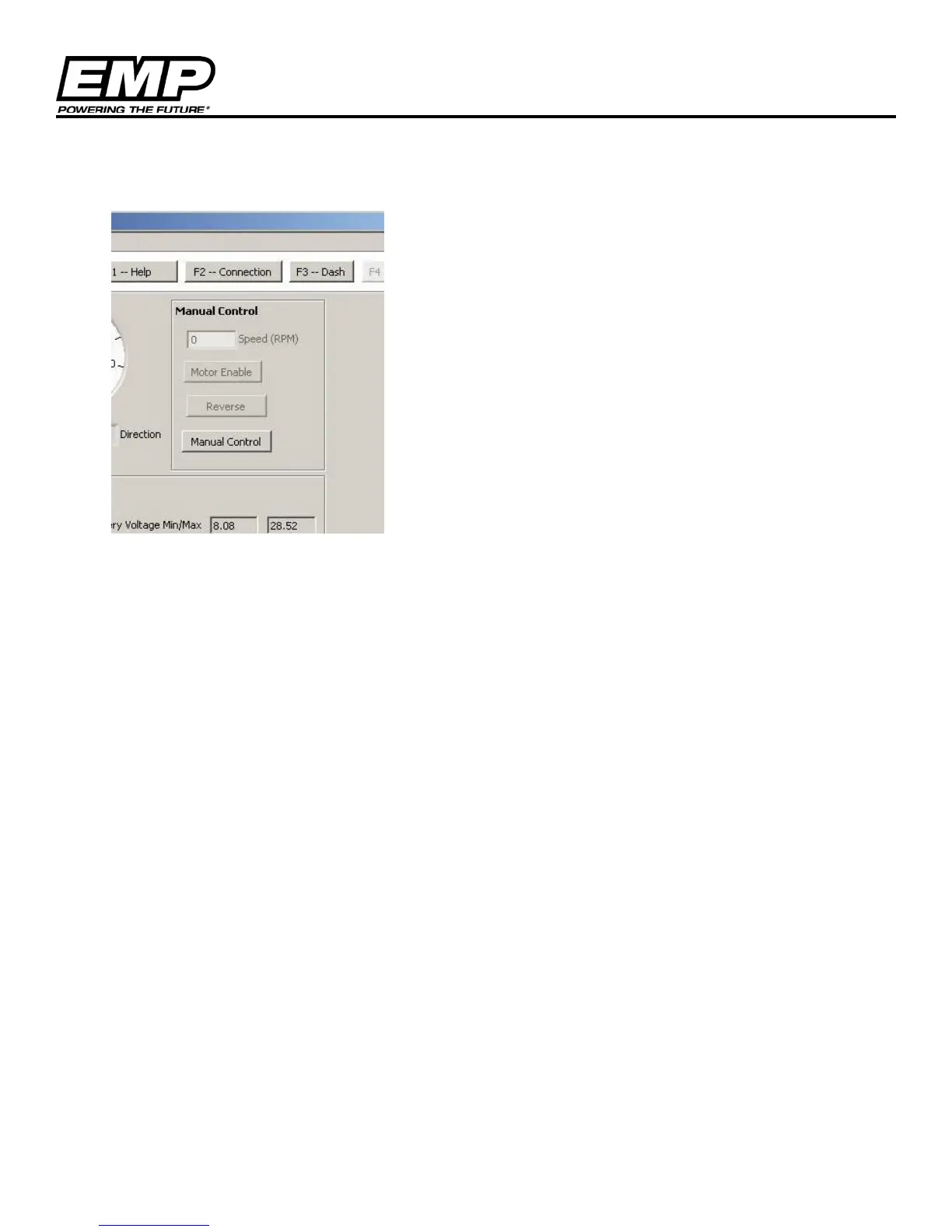

5. To manually control the WP29 and WP32 pump speed:
Step 1 Select “Manual Control” button
Step 2 Select “Motor Enable” button
Step 3 Enter pump test point speed
Press the enter button
Step 4 Record Test Data on the Installation Data Sheet
Step 5 Adjust pump speed for the next data point and record test
data. Repeat step5 until matrix is complete.
Step 6 Select “Manual Control” button to return to normal
operation. Motor Enable and Reverse will be grey as shown in
the image.
6. Record the requested test information in the data sheets below.
