2. Hardware Installation
2.1 System Requirements
z Pentium III 266 MHz processor or higher
z 128 MB RAM minimum
z 20 MB of free disk space minimum
z RJ45 Ethernet Port
2.2 Package Contents
z ENDLS-A2+WIGX2 modem
z RJ-45 Ethernet cable
z RJ-11 Phone cable
z Power Adapter
z Quick Installation Guide
z One External Antenna (for detachable model)

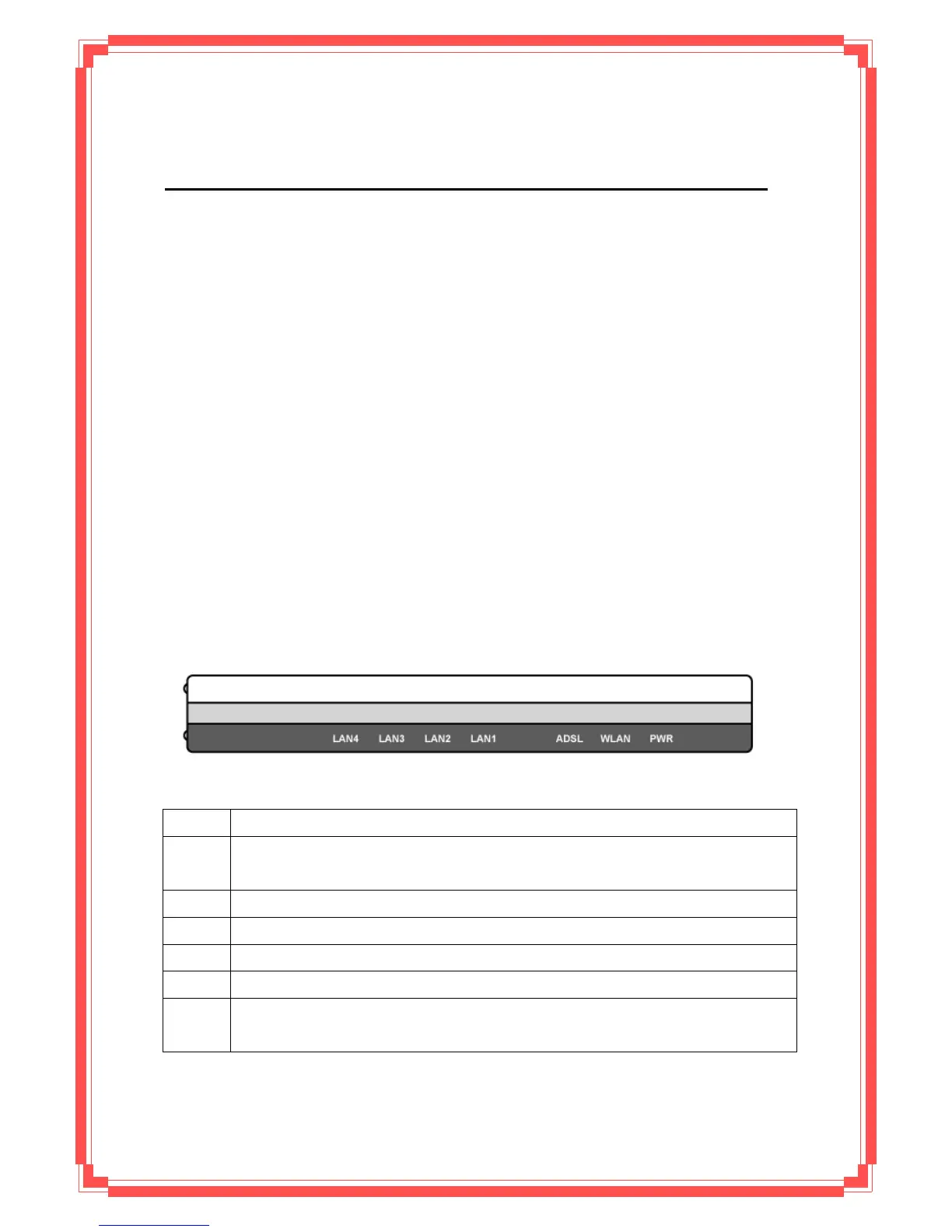

2.3 Front Panel Indicators and Description
Front panel of the ENDLS-A2+WIGX2 router has LED indicators to display router’s
operating status.
Descriptions of LED status
PWR When an active power adapter is connected with this router, this LED will light up.
WLAN
When WLAN card installed properly, this LED will be flashing. When transferring data,
the LED will be steadily.
LAN4 When port 4 connection with PC or Switch / Hub is established, this LED will light up.
LAN3 When port 3 connection with PC or Switch / Hub is established, this LED will light up.
LAN2 When port 2 connection with PC or Switch / Hub is established, this LED will light up.
LAN1 When port 1 connection with PC or Switch / Hub is established, this LED will light up.
ADSL
When connection with Internet (ADSL Connected) is established, this LED will light up.
When this LED is flashing: NO ADSL physical connection
