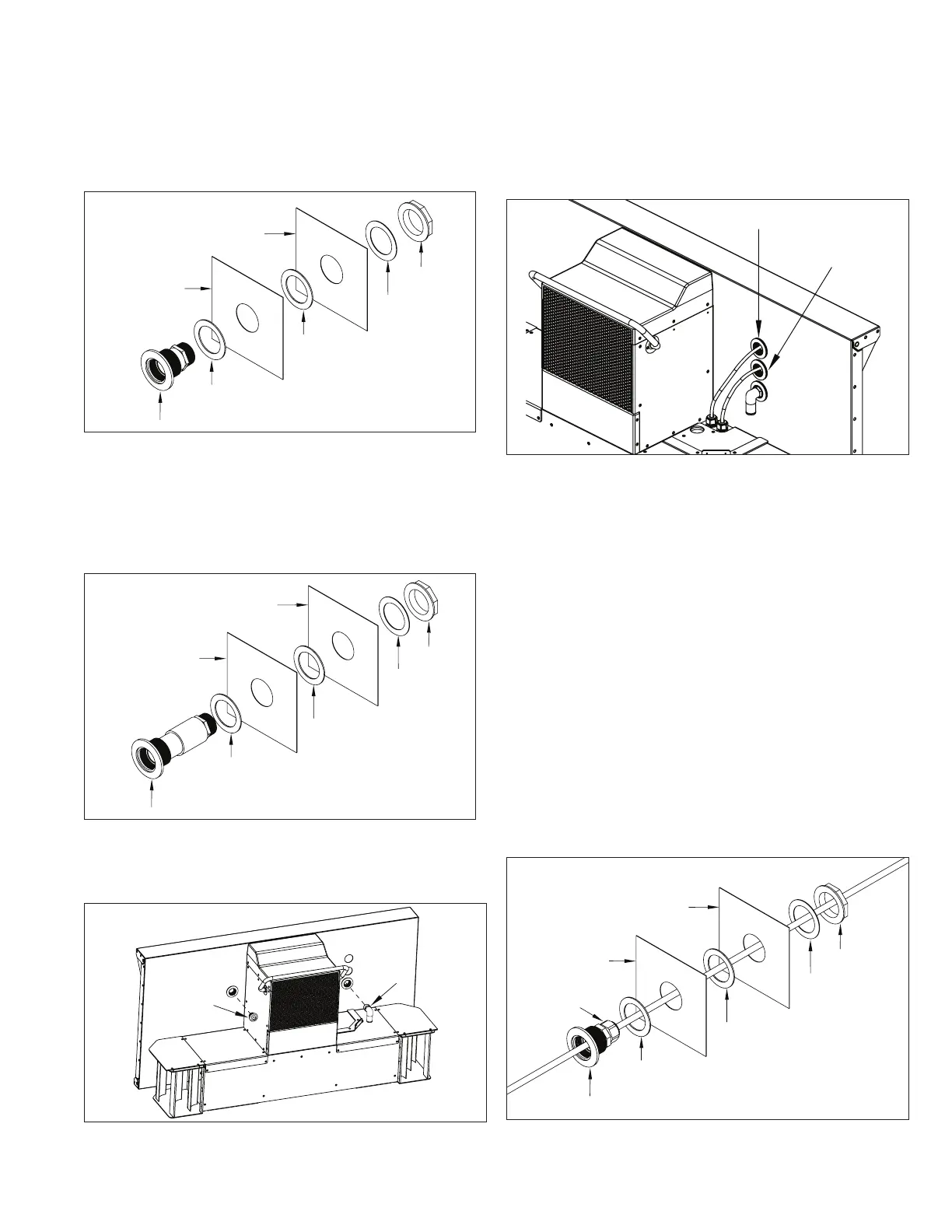

Install the Water Quality System Suction and Return Thru-
Wall Assemblies.
Insert the Suction Thru-Wall Assembly (C) through the liner
(A) and pool wall (B) making sure the Black Gaskets (D) are
installed between the fitting and the liner, and the liner
and pool wall. Install the Cork Gasket (E) on the back of
the fitting before threading on the Lock Nut (F) (Fig. 14).
A
C
D
D
E
F
B
Fig. 14
Insert the Return Thru-Wall Assembly (C) through the liner
(A) and pool wall (B) making sure the Black Gaskets (D) are
installed between the fitting and the liner, and the liner
and pool wall. Install the Cork Gasket (E) on the back of
the fitting before threading on the Lock Nut (F) (Fig. 15)
D
D
F
C
E
A
B
Fig. 15
Attach an Insert Elbow (A) into the Suction Thru-Wall and
the Eye Ball Fitting (B) into the Return Thru-Wall (Fig. 16).
B
A
Fig. 16
Remove the Locknut (F) and Cork Gasket (E) from each
Thru-Wall Fitting (C), shown in Fig. 18, that is pre-attached
to each Hydraulic Hose. Feed the hoses through the wall.
The hose with the red tape wrapped around the fitting
is the low-pressure hose and should be inserted into the
lower of the two hole cut outs in the pool wall for the
hoses (A). The high-pressure hose is to be inserted into the
upper hole (B) as shown in Fig. 17.
B
A
Fig. 17
Install the Thru-Wall fittings for the hoses as shown in Fig.
18. Insert the Thru-Wall Fitting (C) through the liner (A)
and pool wall (B) making sure the Black Gaskets (D) are
installed between the fitting and the liner, and the liner
and pool wall. Install the Cork Gasket (E) on the back of
the fitting before threading on the Lock Nut (F). Once the
fitting is installed, tighten the Cord Grip Fitting (G) on the
back side of the pool wall.
NOTE: If installing an Endless™ Elite or Dual Propulsion
Pool, then the Thru-Wall Fittings WILL NOT be pre-
attached to the hoses and need to be assembled. Glue
a Bushing Reducer into the back of each Thru-Wall
Fitting. Apply Teflon tape or thread sealant to the Cord
Grip Fitting and then thread the fitting into the Bushing
Reducer. Install the Thru-Wall Fittings as shown in
Fig. 18. Feed the two sets of hydraulic hoses into the
appropriate Thru-Wall Fittings and then tighten the Cord
Grip Fittings on the back side of the pool wall.
D
D
F
C
E
A
B
G
Fig. 18
