22. 22. Electrical Wiring - 50Hz Electrical Wiring - 50Hz (U.K. and countries with a similar power supply)(U.K. and countries with a similar power supply)
ALL ELECTRICAL CONNECTIONS SHOULD BE MADE BY A LICENSED ELECTRICIAN.
NOTE: The following instructions are intended for Single Phase equipment. If Three Phase equipment was ordered,
refer to the Three Phase Equipment Supplemental Guide at this time.
ELECTRICAL REQUIREMENTS
MODEL HP
ELECTRICAL
REQUIREMENTS
MINIMUM
WIRE SIZE
RESULTS
ORIGINAL 5 HP (1) 220V 32A RCD 6mm²
If wired as recommended, the
Water Quality System (WQS)
shares power with the Hydraulic
Power Unit for the Hydrodrive™.
When the Hydrodrive™ is turned
ON, the WQS heater will be turned
off.
The optional Treadmill operates
independently.
PERFORMANCE 5 HP (1) 220V 32A RCD 6mm²
ELITE 7.5 HP (1) 220V 45A RCD 10mm²
DUAL PROPULSION 5 HP (2) 220V 32A RCD 6mm²
OPTIONAL TREADMILL 5 HP (1) 220V 32A RCD 6mm²
United States wire color-coding is different than international color-coding. The wires have a colored sleeve to
conform to the international color codes:
WIRE COLOR US WIRE TYPE (60Hz) INT. WIRE TYPE (50Hz)
BLACK with BROWN SLEEVE HOT OR LIVE (120V) HOT OR LIVE (220V)
RED with BLUE SLEEVE HOT OR LIVE (120V) NEUTRAL
GREEN with GREEN/YELLOW SLEEVE GROUND EARTH

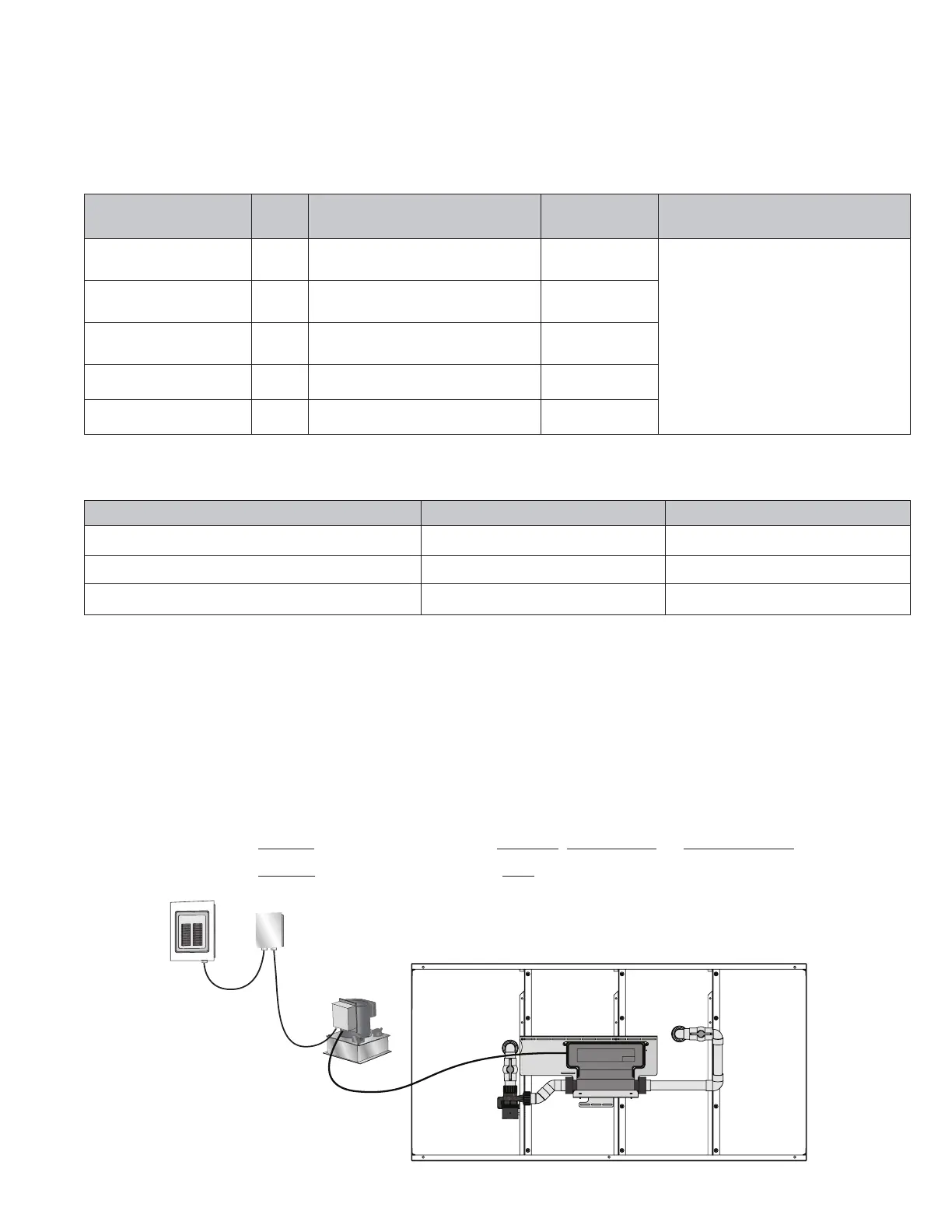

HYDRAULIC POWER UNIT & HEATER-CONTROLLER WIRING
This product MUST be installed with a Residual Current Device (RCD) that has a rated residual operating current not
exceeding 30mA. An electrical shut off (A) MUST be installed between the Main Breaker Panel (B) and within 5’ (1,5m) of
the intended location of the Hydraulic Power Unit (C). Connect the pre-attached electrical whip (D), located on the left
side of the Hydraulic Power Unit Controller, to the power supply. An additional electrical whip (E) containing 4 wires is
provided to supply power from the Hydraulic Power Unit Controller to the Water Quality System Heater-Controller (F)
as shown in Figure 47. When wired as recommended, the system will redistribute power as needed so that the Water
Quality System and Hydrodrive™ System will not consume more amperage than the breaker will allow. Refer to the
appropriate wiring instructions for the Endless™ Pool that was purchased:
Refer to the wiring on Page 27 if installing the Endless™ Original, Performance, or Dual Propulsion Pool.
Refer to the wiring on Page 28 if installing the Endless™ Elite Pool.
A
D
C
E
F
Fig. 47
