18

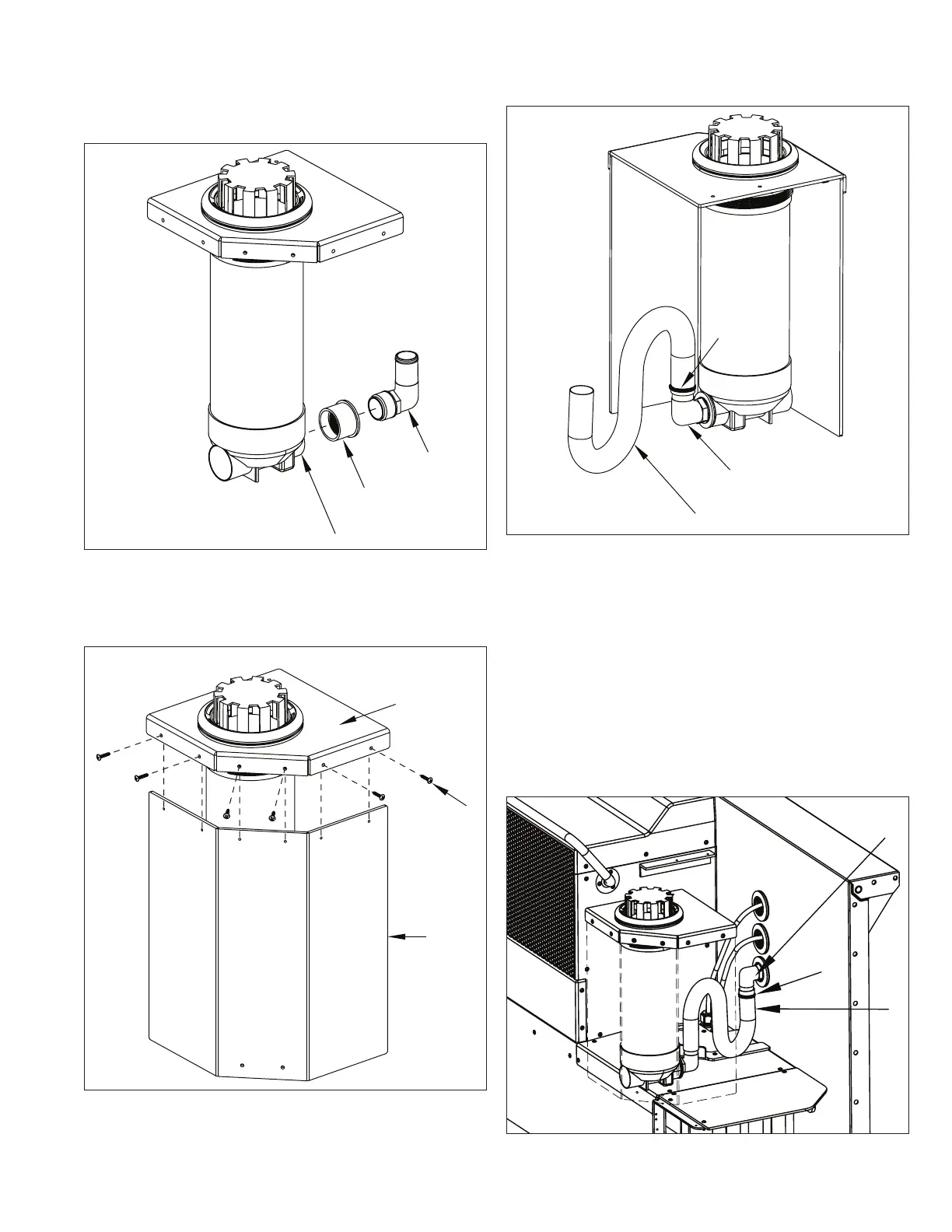

Attach the PVC fittings to the bottom of the skimmer
assembly as shown in Figure 31. Glue the Bushing Reducer
(A) into the “OUT” port (B) at the bottom of the skimmer.
Apply Teflon Tape to the threads of the Insert Elbow (C)
and then thread the elbow into the reducer.
A
C
Fig. 31
Attach the Skimmer Shroud Body (A) to the Shroud Lid (B)
using the provided 1” (25mm) screws (C) (Fig. 32).
A
C
B
Fig. 32
Connect the Heavy Duty Flex Hose (A) to the Insert Elbow.
Secure the hose to the elbow with the Hose Clamp (C)
(Fig. 33).
A
B
C
Fig. 33
The next step is best accomplished with a helper. Carefully
lift and position the skimmer assembly into the pool.
Attach the other end of the Heavy Duty Flex (A) Hose to
the Insert Elbow (B) that’s attached to the suction thru-wall
assembly (Fig. 34). The Skimmer Housing may need to be
rotated to accomplish this. The excess flex hose should be
tucked behind the skimmer shroud. Make sure there are no
kinks in the hose. Secure the hose using the Hose Clamp (C).
NOTE: If installing an Endless™ Dual Propulsion Pool,
then the skimmer assembly will be attached to the right
housing.
B
A
C
Fig. 34
