FieldCare and Field Data Manager
FieldCare
Configuration and asset management software based on FDT/DTM technology
• Complete device configuration when connected via FXA291 and service interface
• Access to a number of configuration parameters and identification, measuring and diagnostic data
when connected via HART modem
• Logbooks can be downloaded in CSV format or binary format for "Field Data Manager" software
Field Data Manager
Visualization software and database for measuring, calibration and configuration data
• SQL database which is protected against manipulation
• Functions to import, save and print out logbooks
• Load curves to display measured values
A0016009

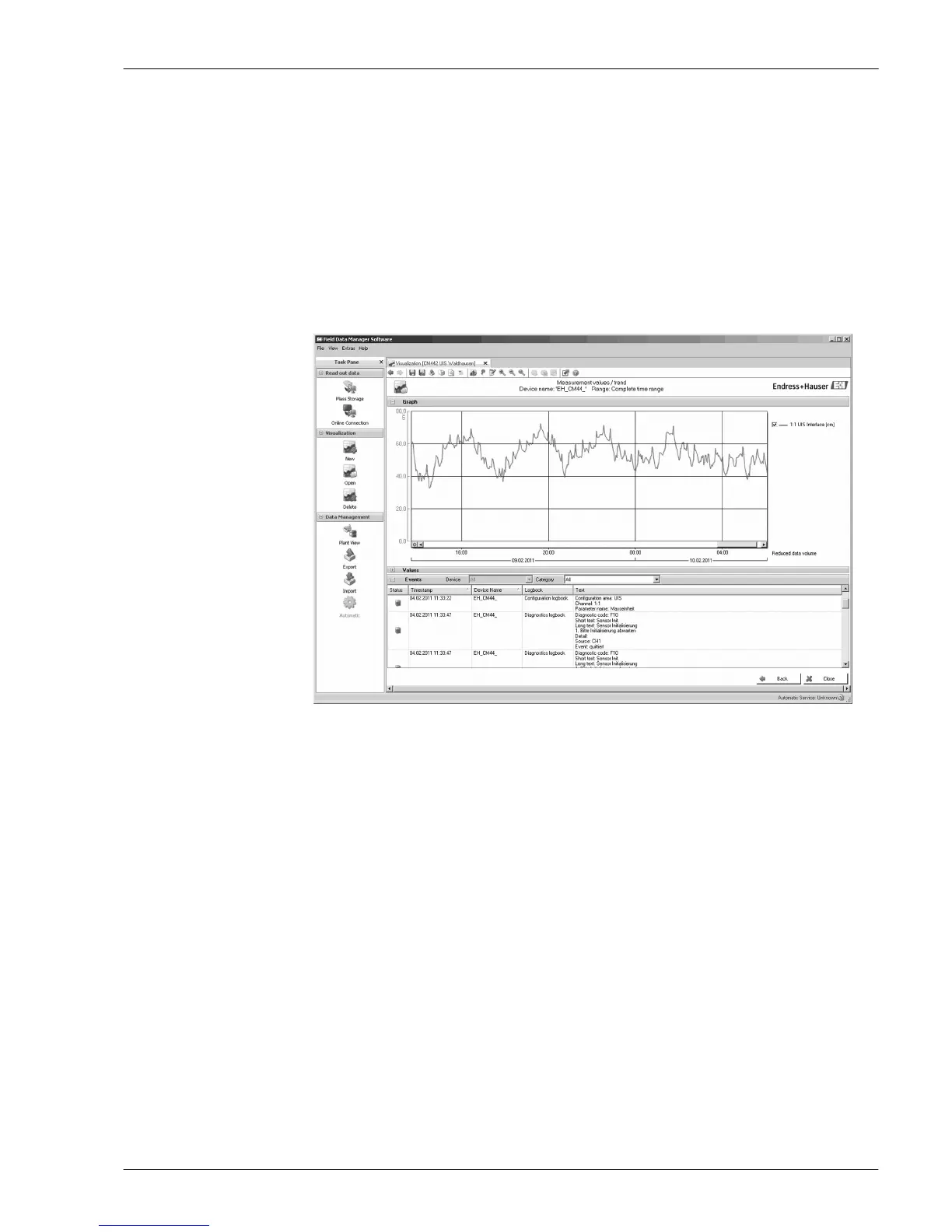

12 Field Data Manager: Load curves
Virtual process values (mathematical functions)
In addition to "real" process values, which are provided by connected physical sensors or analog
inputs, mathematical functions can be used to calculate a maximum of 6 "virtual" process values.
The "virtual" process values can be:
• Output via a current output or a Fieldbus
• Used as a regulating control variable
• Assigned as a measured variable to a limit contactor
• Used as a measured variable to trigger cleaning
• Displayed in user-defined measuring menus.
The following mathematical functions are possible:
• pH calculation based on two conductivity values acc. to VGB 405 RL, e.g. in boiler feed water
• Difference between two measured values from different sources, e.g. for membrane monitoring
• Differential conductivity , e.g. monitoring the efficiency of ion exchangers
• Degassed conductivity, e.g. for process controls in power plants
• Redundancy for monitoring two or three redundantly measuring sensors
• rH calculation based on the measured values of a pH and an ORP sensor
