Levelflex M FMP40 and FMP45 Commissioning
33
6.3 Basic Setup
The Basic Setup of the device has to be performed with a special FieldCare DTM which is delivered
with the device. The setup is not inteded to be made via the display VU 331 or via any other digital
communication!
In order to perform the basic calibration via FieldCare, please proceed as follows:
• connect the FXA191 (HART Commubox) with the device
• start FieldCare and define a new project.
• Add a HART Comm DTM to the project.
• Add the FMP4x Interface HART DTM.
• Extablish an on-line communication to the device by pressing .
• Start the parametrization by opening th "on-line parametrization".

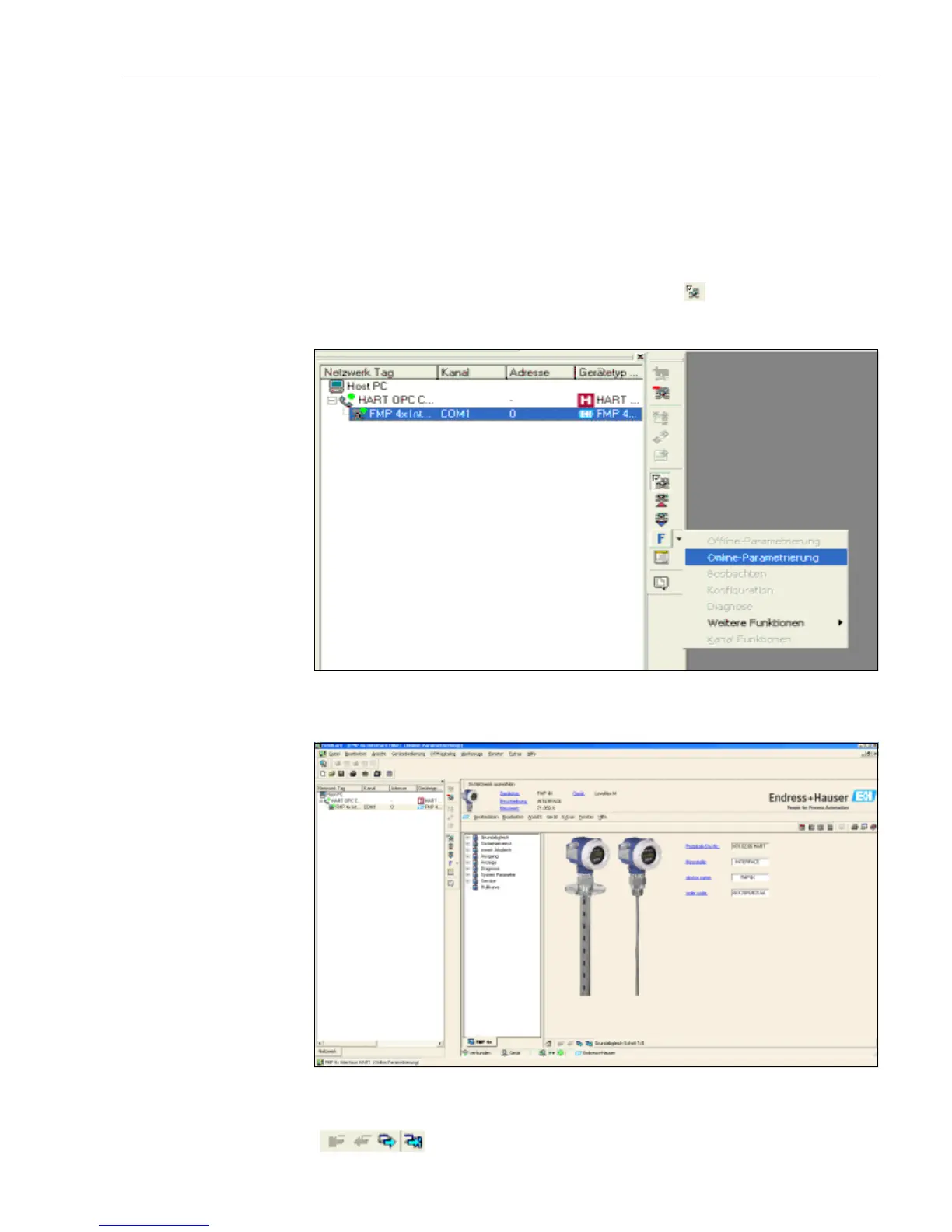

L00-FMP4xxxx-19-00-00-de-002
On the screen, the following picture will appear:
L00-FMP4xxxx-19-00-00-de-004
Please use the flash buttoms to go through the basic calibration step by step.
