Endress+Hauser Proline Prosonic Flow 93 Brief Operating Instructions

Proline Prosonic Flow 93 Installation
Endress+Hauser
15
3.7.2 Mounting the holder with strapping bands
For sensor: Prosonic Flow 93P and Prosonic Flow 93W (DN 15 to 65 / ½ to 2½")
For mounting on a pipe with a nominal diameter of DN  32 (1¼").
1. Disconnect the sensor from the sensor holder.
2. Position the sensor holder on the pipe.
3. Wrap the strapping bands around the sensor holder and pipe without twisting them.
4. Guide the strapping bands through the strapping band locks
(tensioning screw is pushed up).
5. Tighten the strapping bands as tight as possible by hand.
6. Set the sensor holder to the desired position.
7. Push down the tensioning screw and tighten the strapping bands so that they cannot slip.
8. Where necessary, shorten the strapping bands and trim the cut edges.
#
Warning!
Risk of injury. To avoid sharp edges, trim the cut edges after shortening the strapping
bands.
A0011525

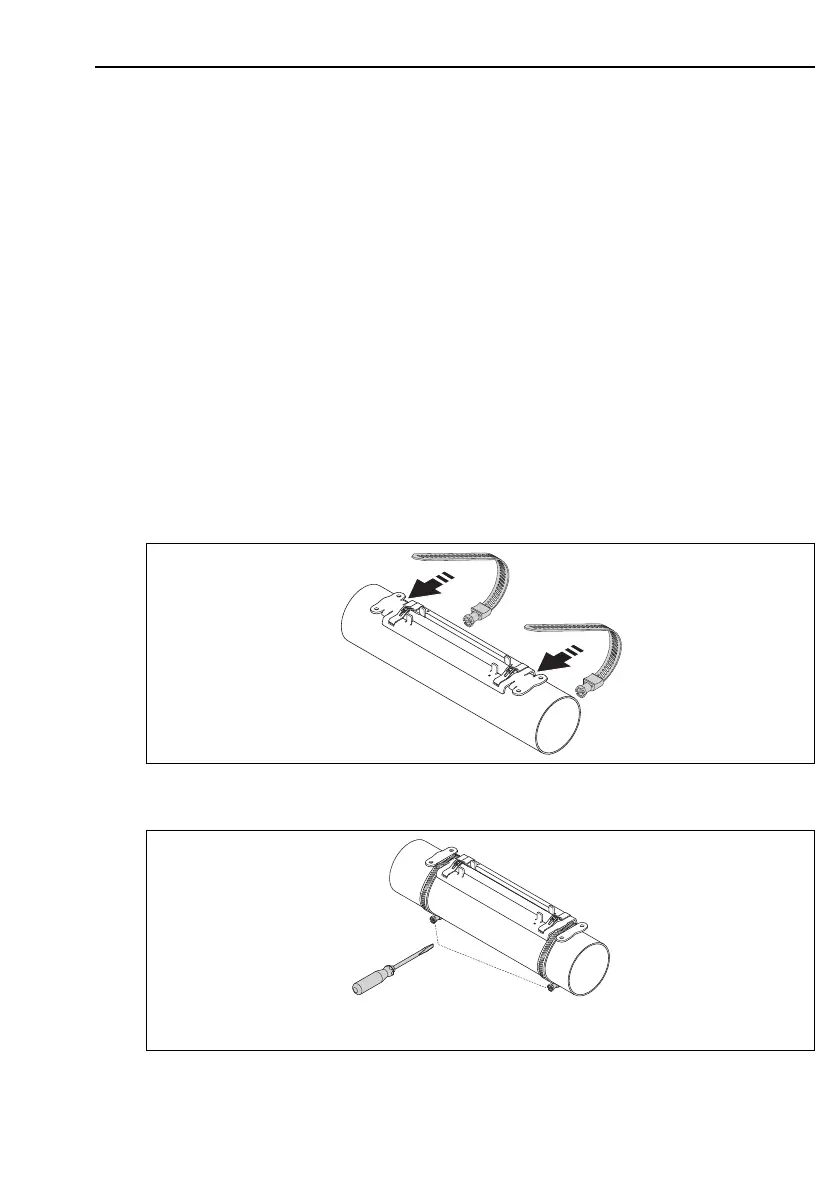

Fig. 4: Positioning the holder and mounting the strapping bands
A0011526
Fig. 5: Tightening the tensioning screws of the strapping bands
