Installation Proline Prosonic Flow 93
20 Endress+Hauser
A0011527

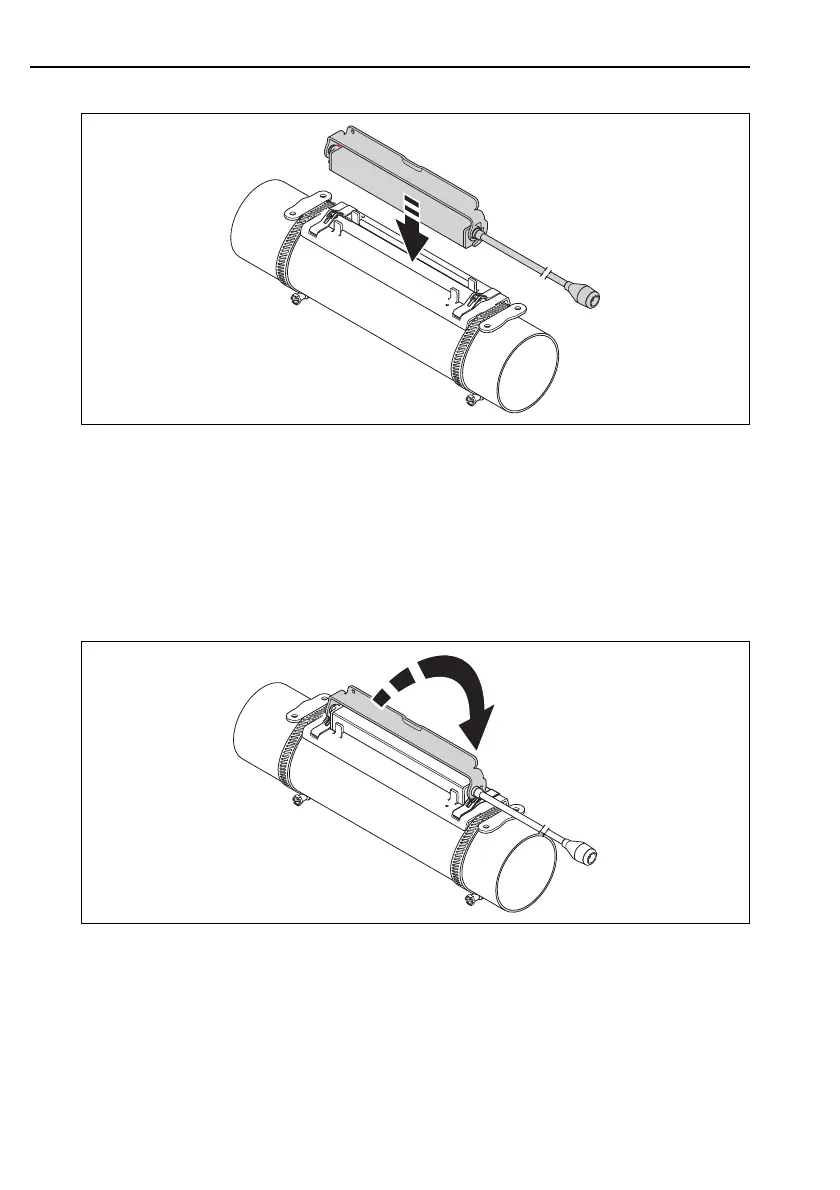

Fig. 10: Fitting the sensor housing
4. Engage the bracket to fix the sensor housing in place on the holder.
!
Note!
– If necessary, the holder and sensor housing can be secured with a screw/nut or a
lead-seal (not part of the scope of supply).
– The bracket can only be released using an auxiliary tool.
A0011528
Fig. 11: Setting the distance between the sensors as per the value for the sensor distance
5. Connect the connecting cable to the adapter cable.
This completes the mounting process. The sensors can now be connected to the transmitter via
the connecting cables ä 30.
