Installation Proline Prosonic Flow 93
28 Endress+Hauser
5. Coat the contact surfaces of the sensors with an even layer of coupling fluid approx. 1 mm
(0.04") thick, going from the groove through the center to the opposite edge.
A0011373

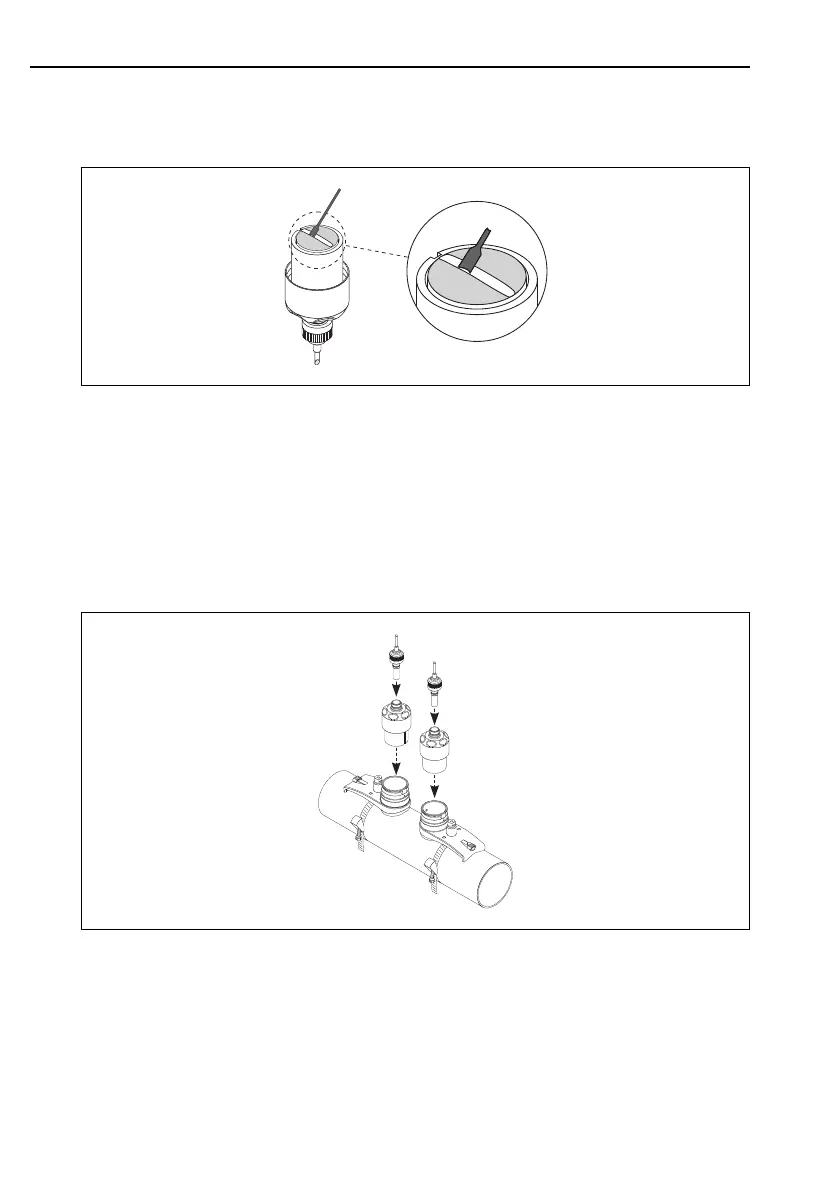

Fig. 23: Coating the contact surfaces of the sensor with coupling fluid
6. Insert the sensor into the sensor holder.
7. Fit the sensor cover on the sensor holder and turn until:
– The sensor cover engages with a click
– The arrows (Å / Æ "close") are pointing towards one another.
8. Screw the connecting cable into the individual sensor.
A0011376
Fig. 24: Connecting the connecting cable
This completes the mounting process. The sensors can now be connected to the transmitter via
the connecting cables ä 30.
