Wiring Proline Prosonic Flow 93
32 Endress+Hauser
A0008654

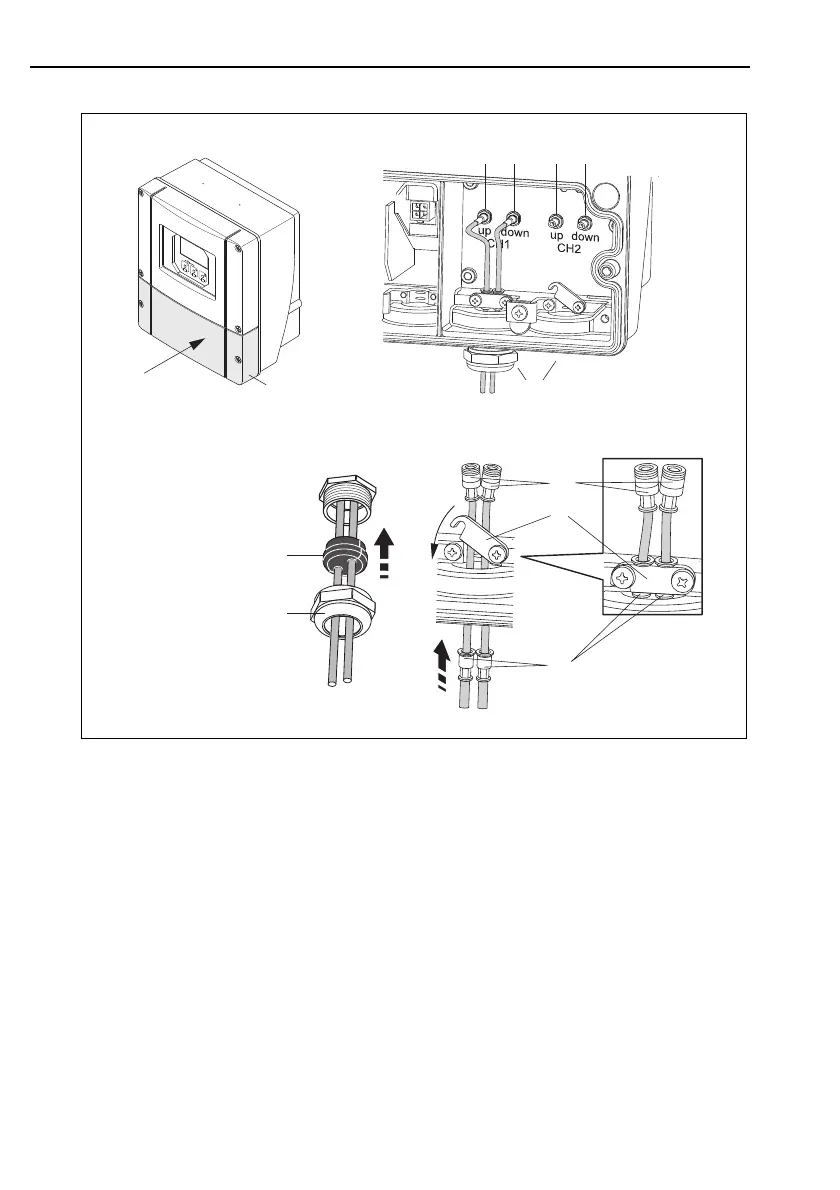

Fig. 25: Connecting the sensor/transmitter connecting cable
AView A
B Detail B
1 Sensor cable connector, channel 1 upstream
2 Sensor cable connector, channel 1 downstream
3 Sensor cable connector, channel 2 upstream
4 Sensor cable connector, channel 2 downstream
a Connection compartment cover
b Cable entries (with cable gland for two connecting cables per cable entry)
c Connecting cables
d Cable gland
e Cable retaining sleeves
f Ground contact terminals (only Prosonic Flow P DN 50 to 4000 (2 to 160"),
for grounding of the Prosonic Flow P DN 15 to 65 (½ to 2½"), see next section)
g Rubber seal
A
1
A
32 4
d
g
e
c
f
B
b
a
