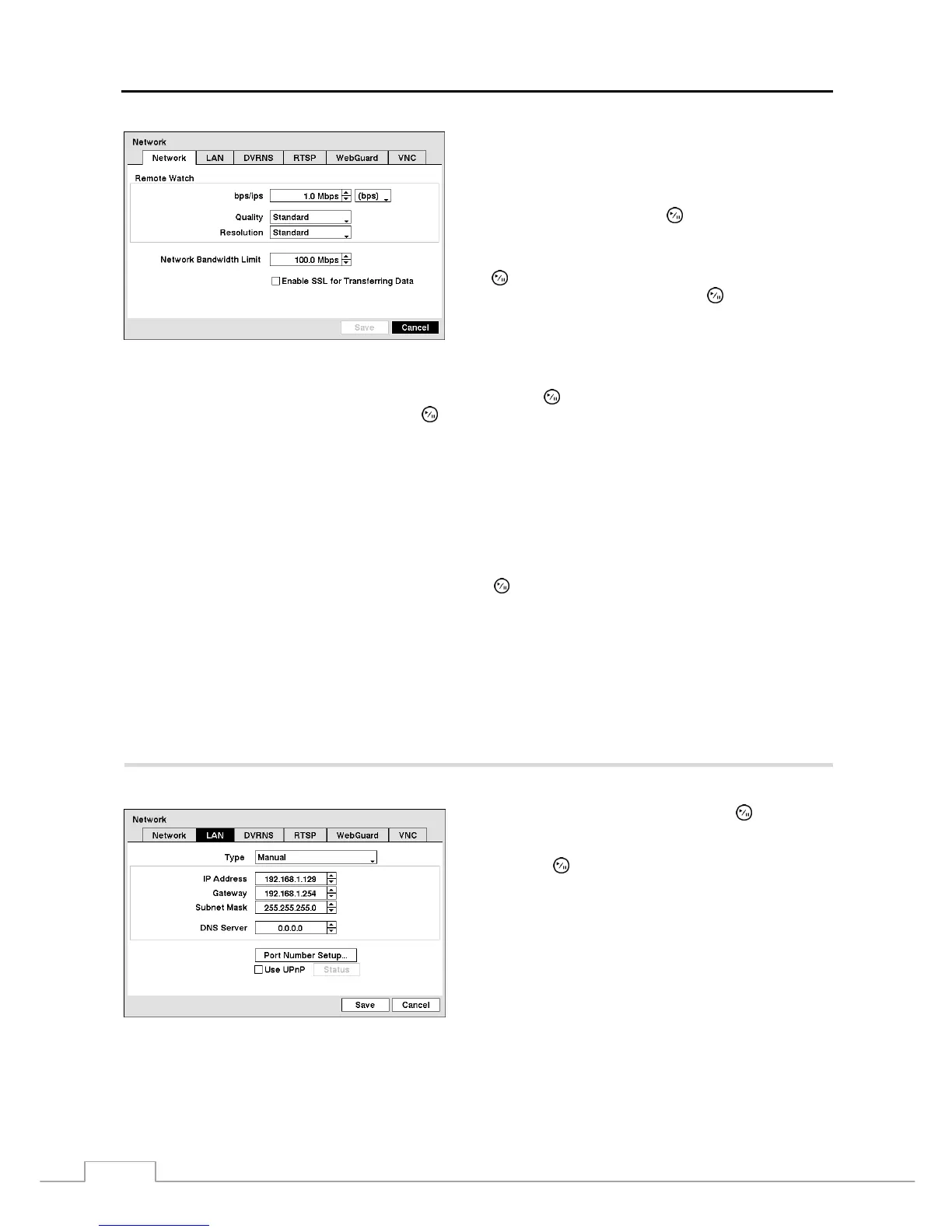

Eneo DLR4B-08/500DV - Figure 21 - Network Setup Screen; Figure 22 - LAN (Manual) Setup Screen

Operating Instructions
22
Highlight the first box beside Remote Watch – bps/ips.
You can select the Transfer Speed from 50Kbps to 100Mbps.
Highlight the second box beside Remote Watch – bps/ips.
You can select the unit of measure for the transfer speed
between: bps and ips. Press the button to set the transfer
speed.
Highlight the box beside Remote Watch – Quality and press
the
button. You can select the Quality from: Very High,
High, Standard and Basic. Press the
button to set the
Quality.
Figure 21 — Network setup screen.
Highlight the box beside Remote Watch – Resolution and press the button. You can select the Resolution from:
High (Half D1) and Standard (CIF). Press the
button to set the Resolution.
NOTE: The higher Quality and Resolution settings require higher Transfer Speed settings. The transfer speed
you set is the maximum speed. Depending on the network environment, this speed may not be achieved.
You can limit the network bandwidth settings so that system does not consume too much network bandwidth. Highlight the
box beside Network Bandwidth Limit and press the Up and Down arrow buttons to set the desired maximum bandwidth
from 10Kbps to 100Mbps.
NOTE: When limiting the network bandwidth, the remote watch image on the PC running RAS or WebGuard
might not be displayed properly.
Highlight Enable SSL for Transferring Data and press the button to toggle between On and Off. When it is On,
the security of data except video transmitted for remote monitoring or remote recording can be enhanced by using the
SSL (Secure Sockets Layer) authentication. When using the SSL function, the DVR cannot be connected with a remote
program or a network keyboard which does not support the SSL function.
CAUTION: The
r
emote connection will be disconnected temporaril
y
after changing the SSL settings.
NOTE: While the SSL function is enabled, the network transfer speed you selected may not be achieved.
This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
Highlight the LAN tab, and the LAN screen displays.
Figure 22 — LAN (Manual) setup screen.
Highlight the box beside Type and press the button. You
can select the type of network configuration from: Manual,
DHCP and ADSL (with PPPoE). Select the desired type
and press the
button.
Selecting Manual from the Type allows you to set up LAN
parameters manually.
Change the numbers by highlighting them and using the Up
and Down arrow buttons to increase or decrease the number.
The factory default LAN settings are:
IP Address: 192.168.1.129
Gateway: 192.168.1.254
Subnet Mask: 255.255.255.0
NOTE: You will need to get the appropriate IP Address, Gateway and Subnet Mask from your network
administrator.
Highlight the box beside DNS Server. Press the Up and Down arrow buttons to set the IP address of the DNS server.
