EnerSys PowerSafe mP Series User Manual

21
www.enersys.com
Publication No. US-MP-OM-001
March 2017

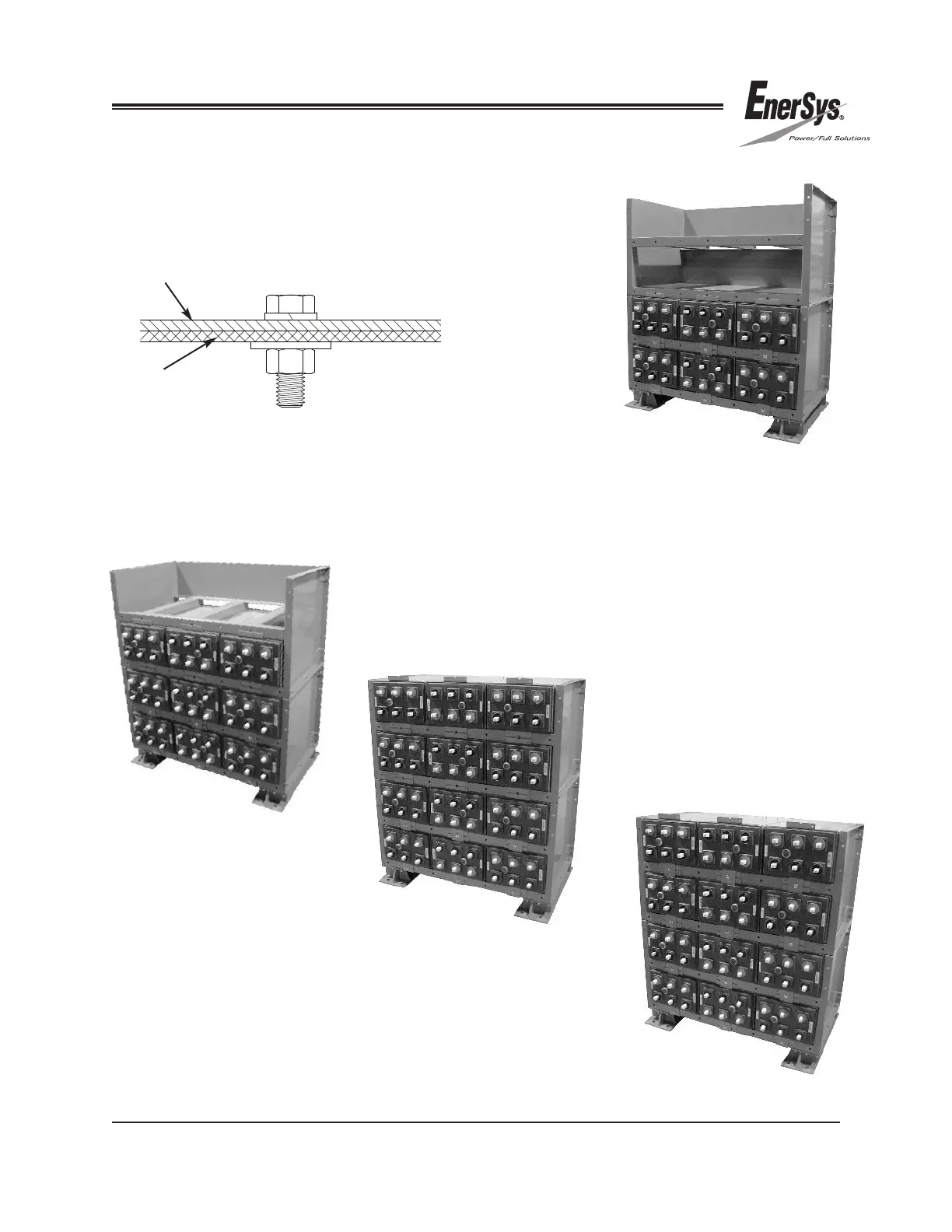

FIGURE 8
FIGURE 9
FIGURE 11
FIGURE 10
4. Install next empty frame module weldment as
described in Section 8.2. See Figure 8 and 8a.
Torque bolts to 75 ft-lbs.
5. Install cell modules and retainer plates as described
in Section 9.0 & 9.1. See Figures 9, 10, 11.
FIGURE 8a
Upper Frame Module Weldment
Lower Frame
Module Weldment
