EnerSys PowerSafe mP Series User Manual

22
www.enersys.com
Publication No. US-MP-OM-001
March 2017

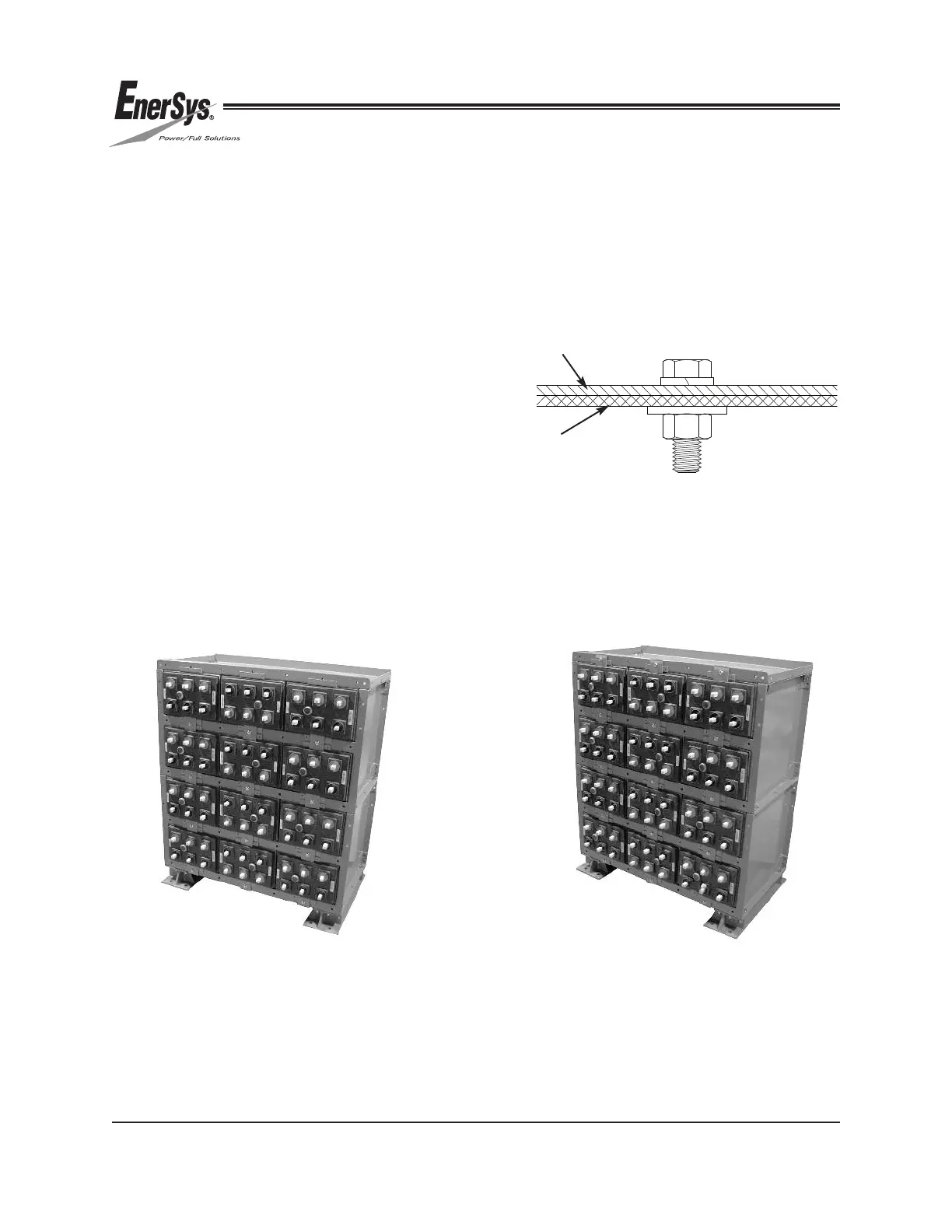

FIGURE 12
FIGURE 13
After all frame module weldments, cell modules and
retainer plates have been installed for a particular
system, install the top module weldment. See
Figure 12.
1. Bolt top module weldment to frame module.
Refer to below list for hardware order and
Figure 12a.
• Hex bolt (M12x1.75-40mm)
• Lock washer
• Top module weldment
• Frame module weldment
• Flat washer
• Hex nut
2. Install top row of retainer plates as described
in Section 9.1. See Figure 13.
10.0 TOP MODULE WELDMENT
FIGURE 12a
Top Module Weldment
Frame Module Weldment
