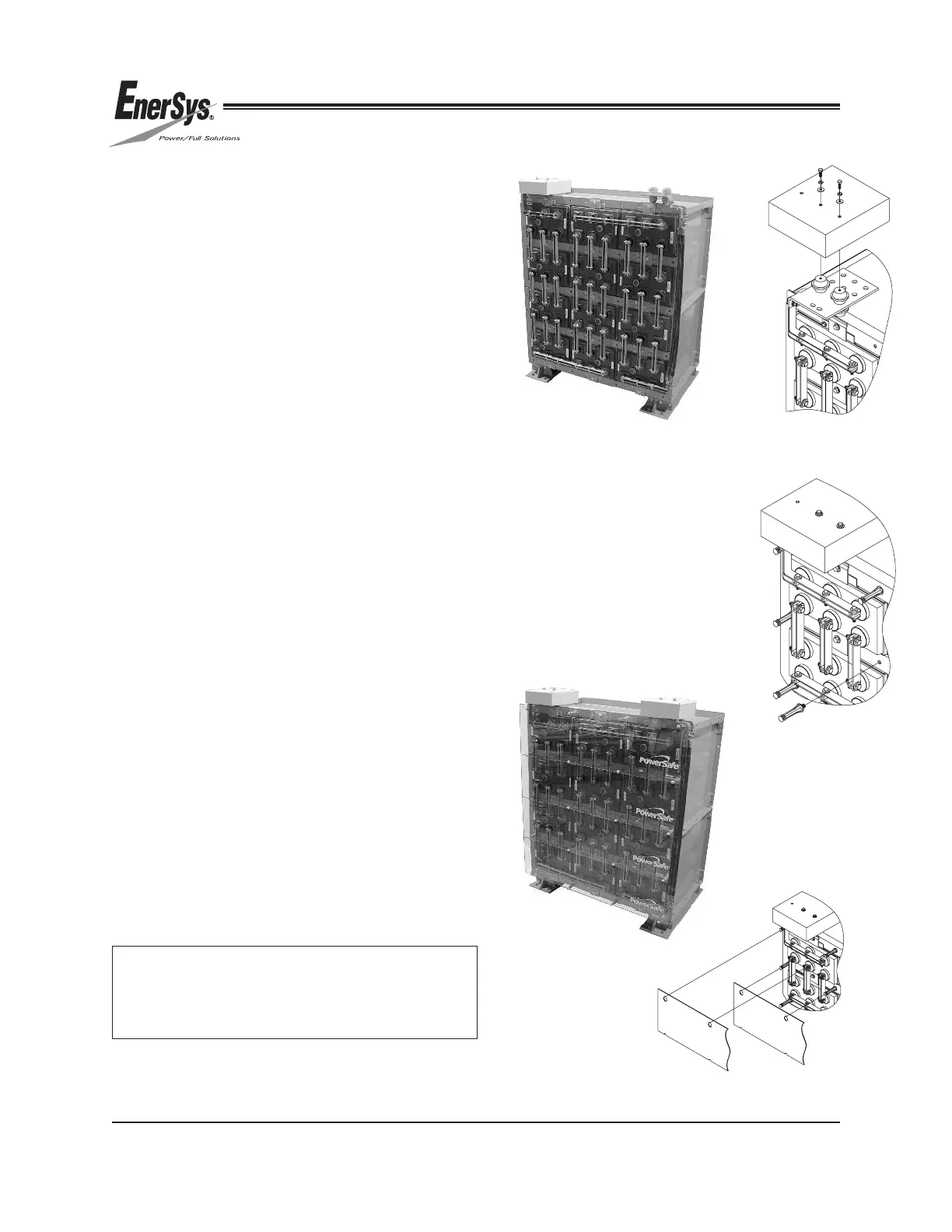

15.0 TERMINAL PLATE COVERS
AND SAFETY SHIELDS
Shields and covers are provided to help
prevent accidental contact with connections
after installation and during operations. Safety
shields and covers should remain in place at all
times during normal operation of the system.
Terminal plate covers are provided as
necessary to prevent accidental contact with
the “live” terminal plate. Safety shields are
designed to be removed for service or
maintenance.
15.1 Terminal Plate Covers
1.
Install terminal plate covers as shown in
Figure 19a. Use hardware that is identified
on the Assembly drawing located in the
terminal plate box included with your
shipment.
2.
An optional standoff is included in the
terminal plate assembly kit in case
additional space is needed between
terminal plate and its cover.
15.2 Safety Shields
1.
Install ALL safety shield standoffs into
modules as shown in Figure 20a.
2.
Starting with bottom row, hang safety
shields on standoffs as shown in
Figure 21a.
FIGURE 19 FIGURE 19a
FIGURE 20a
FIGURE 21
FIGURE 21a
NOTE:
The bottom of each safety shield will overlap,
on the outside, the top of the shield below it.
