10.3 WDS Bridge Mode
Use this feature to link multiple APs together in a network. All clients associated with any of
the APs can communicate with each other similar to an ad-hoc mode. The following
configuration will allow ENH200EXTs to communicate with a central AP.
WDS Bridge
Step 1 Login to the web-based configuration interface with default IP
192.168.1.1
Step 2 Select your country or region’s regulation.
Step 3 Change Operation Mode to WDS Bridge under System
Properties.
Step 4 Set the device’s IP settings under System -> IP Settings
Step 5 Set the WLAN settings under Wireless Network.
Step 6 Configure WDS Link Settings under Wireless.
Step 7 Specify the MAC address of the AP which you would like to
connect with.
Step 8 Press Apply under Save / Reload to process all of the
configurations.
Step 9 Verify the device’s settings by browsing to Status -> Main.
View the WDS link status.
Each WDS bridge device must use the same Subnet, Wireless Mode, Wireless
Channel, and Security Setting.

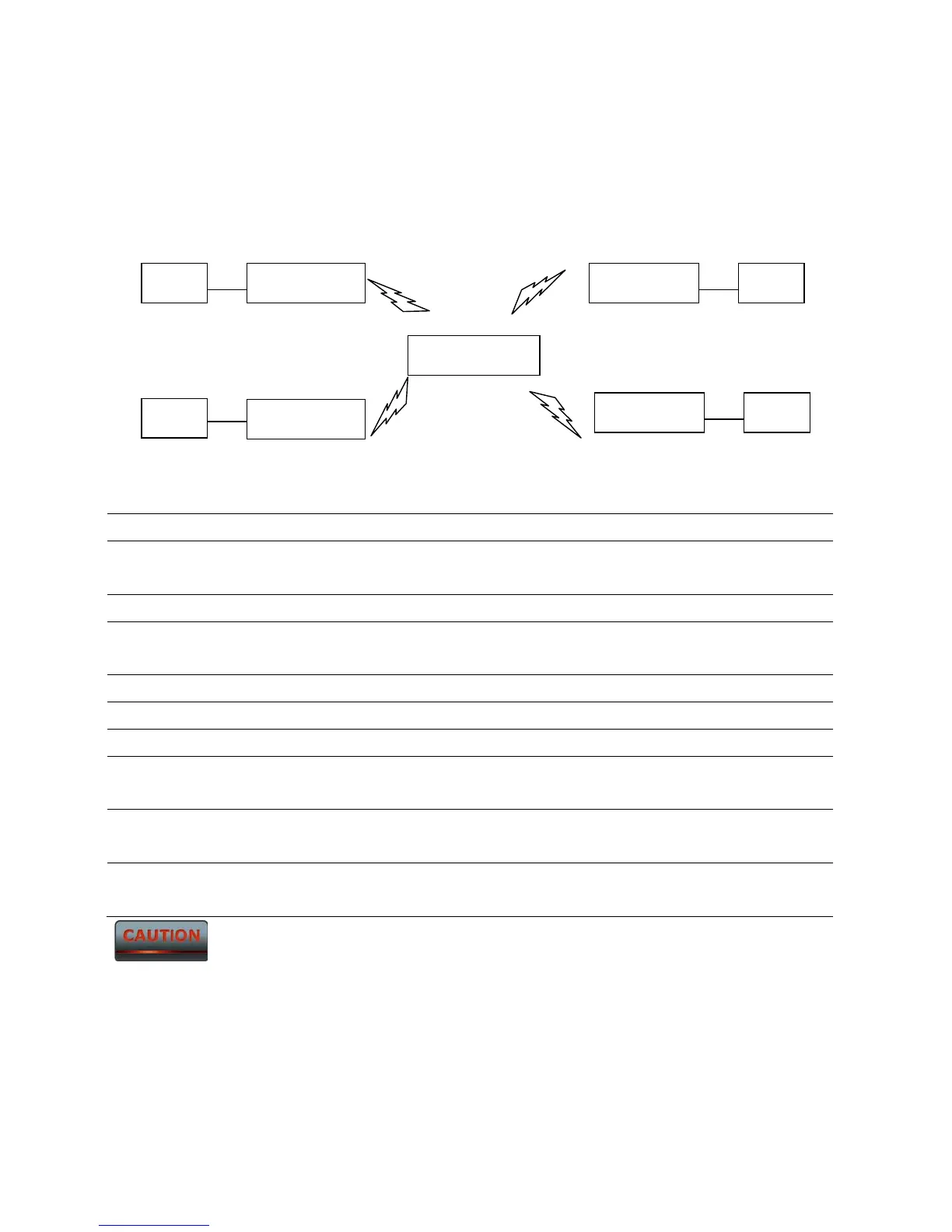

ENH200EXT
WDS
WDS
WDS WDS
Client
ENH200EXT ENH200EXT
Client
192.168.1.1
192.168.1.2
192.168.1.3
192.168.1.4
192.168.1.5
ENH200EXT
Client
Client
ENH200EXT
