INSTALLATION AND CONNECTION
Act as per instruction.
1. Settle the dispenser in foreseen area.

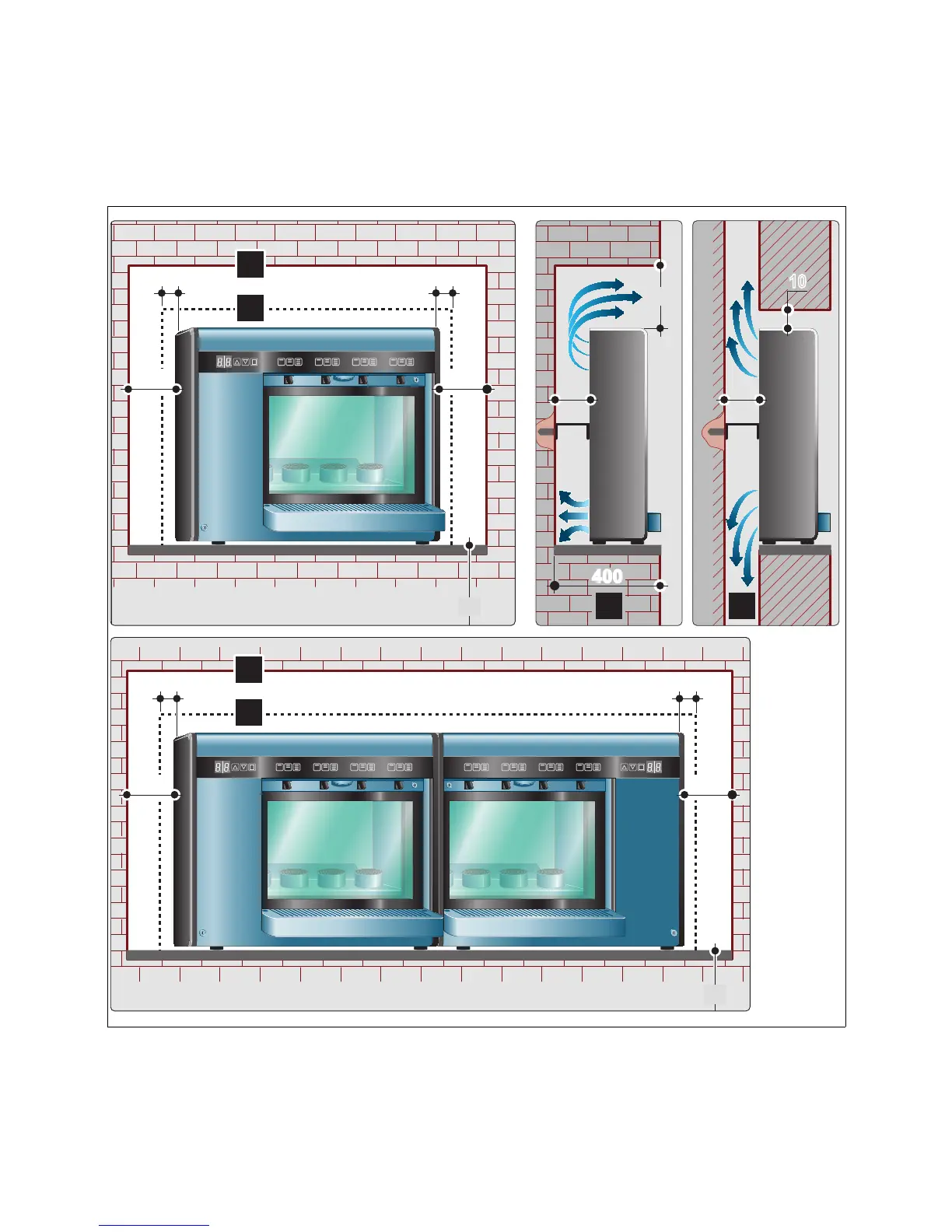

Illustration shows minimal distances to grant adequate ventilation.
2. Proportion gas supply duct regarding the features involved in the installation (nitrogen/
argon tanks, nitrogen generator, etc.).
Legend
A = No air duct installation example
B = Air duct installation example
B
100
250
100
400
A
1010
900
100 100
A
B
A
B
1010
900
100 100
10
