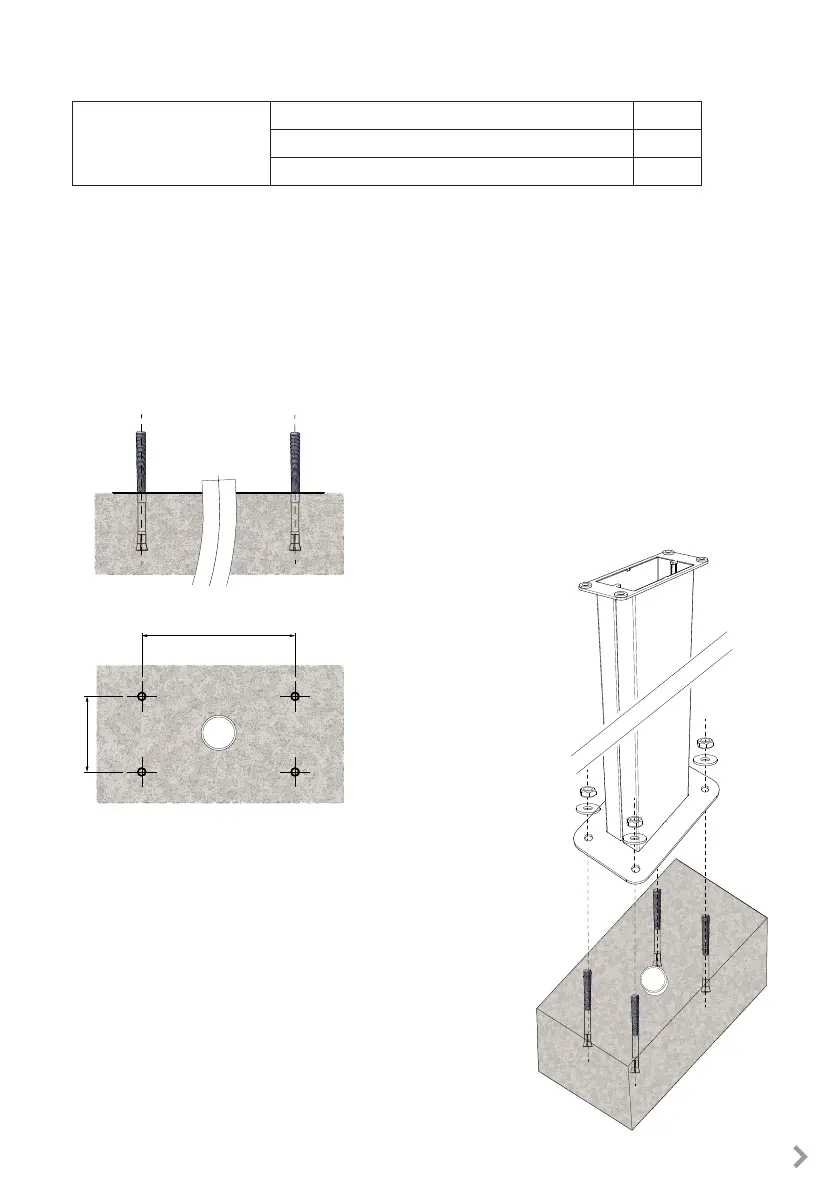

6.4. Ground mounting on concrete casting with ground mounting pole
Installation accessories
Ground mounting pole EVTL43.00 1 pcs
Anchor bolts M12 4 pcs
Bolts and nuts (not included)
Make sure that the materials used for the concrete casting and the installation procedures follow local
building regulations and safety standards.
• Dig a trench for cable conduits and an excavation pit for the concrete foundation. The pit oor
should be compacted and level.
• Put cable and possible drain pipes in place.
• Fill the pit with concrete.
• Let the concrete cure. Make sure that the surface stays level during the process.
Installation steps
1. Make sure that the concrete surface is compacted
and level.
2. Drill a hole in the concrete for the anchor bolts. For
more information, please see the anchor bolt instruc-
tions.
3. Put the anchor bolts in place.
4. Pull the electric cables approx. 1500 mm measured from
the concrete surface.
5. Attach the ground mounting pole to the anchor bolts
with washers and nuts.
6. Pull the electrical cables through the ground mounting
pole.
7. Attach the charging station to the mounting pole. See
instructions on page 15.
200
100
