ensto EVB200EB-B4BC - Ground Mounting on Concrete Foundation with Ground Mounting Pole

RAK139_ENG / 2023-09-14
12 / 36
6.5. Ground mounting on concrete foundation with ground mounting pole
Installation accessories
Ground mounting pole EVTL43.00 1 pcs
Adapter for concrete foundation EVTL44.00 1 pcs
Concrete foundation (from dierent manufacturers) 1 pcs
Bolts, washers and nuts
Installation steps
1. Dig a trench for cable conduits and an excavation pit
for the concrete foundation to applicable depths.
2. Add gravel to the bottom of the pit, to such thickness
that the top of the foundation will be at applicable
level when you lift the foundation into the pit. Take
into consideration the possible paving materials
when you set the level.
3. Lift the concrete foundation into the pit. For more
information, please see the concrete foundation
mounting instructions.
4. Put cable and possible drain conduits in place.
5. Lift the adapter EVTL44.00 into the concrete founda-
tion. Cut the adapter, if necessary. Adjust the adapter
in such a manner, that the top surface of the adapter
is horizontal. Make sure, that the adapter is securely
in place and does not swing.
6. Pull electric cables through the conduits and the
adapter approx. 1500 mm measured from the adapt-
er ange.
7. Tighten the foundation to its place by lling the ex-
cess space outside the foundation with gravel.

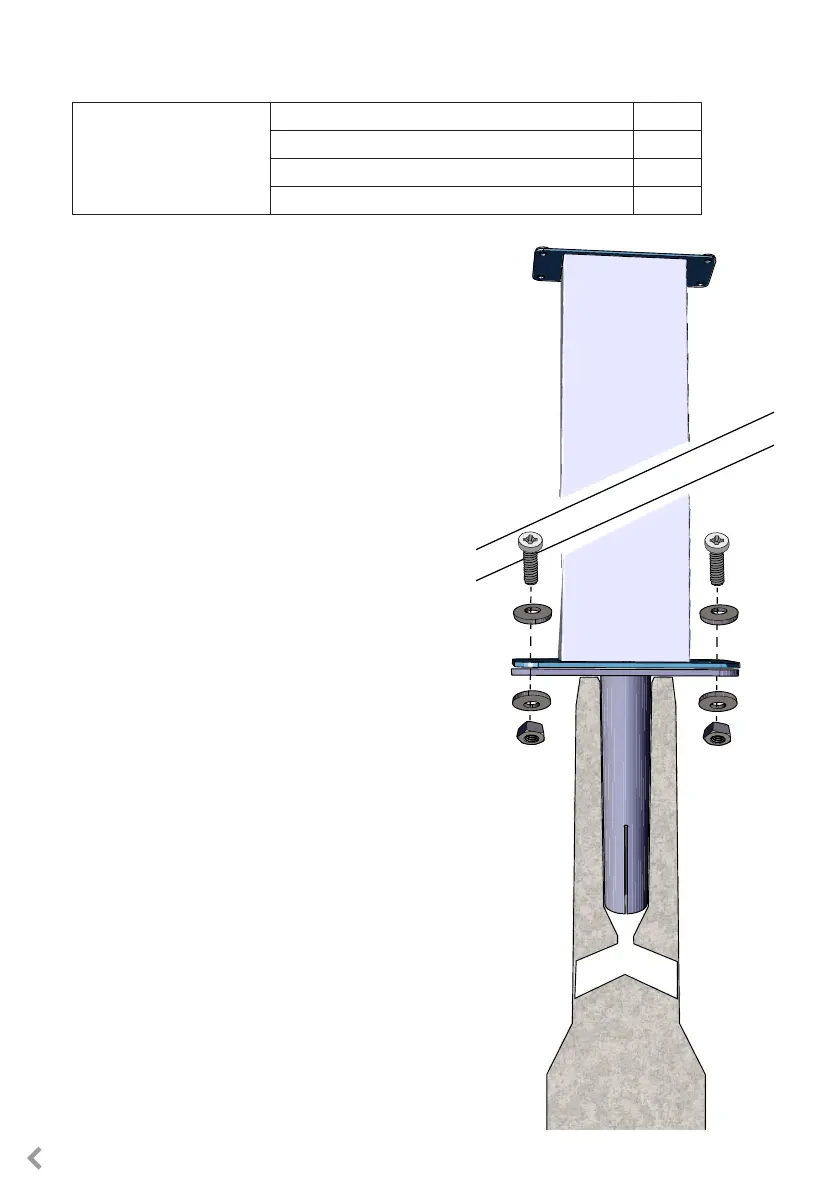

8. Attach the ground mounting pole on the adapter
with bolts, washers and nuts (included).
9. Pull the electrical cables through the ground mount-
ing pole.
10. Attach the charging station to the mounting pole.
See instructions on page 15.
x 4
x 8
x 4
