RAK139_ENG / 2023-09-14
13 / 36

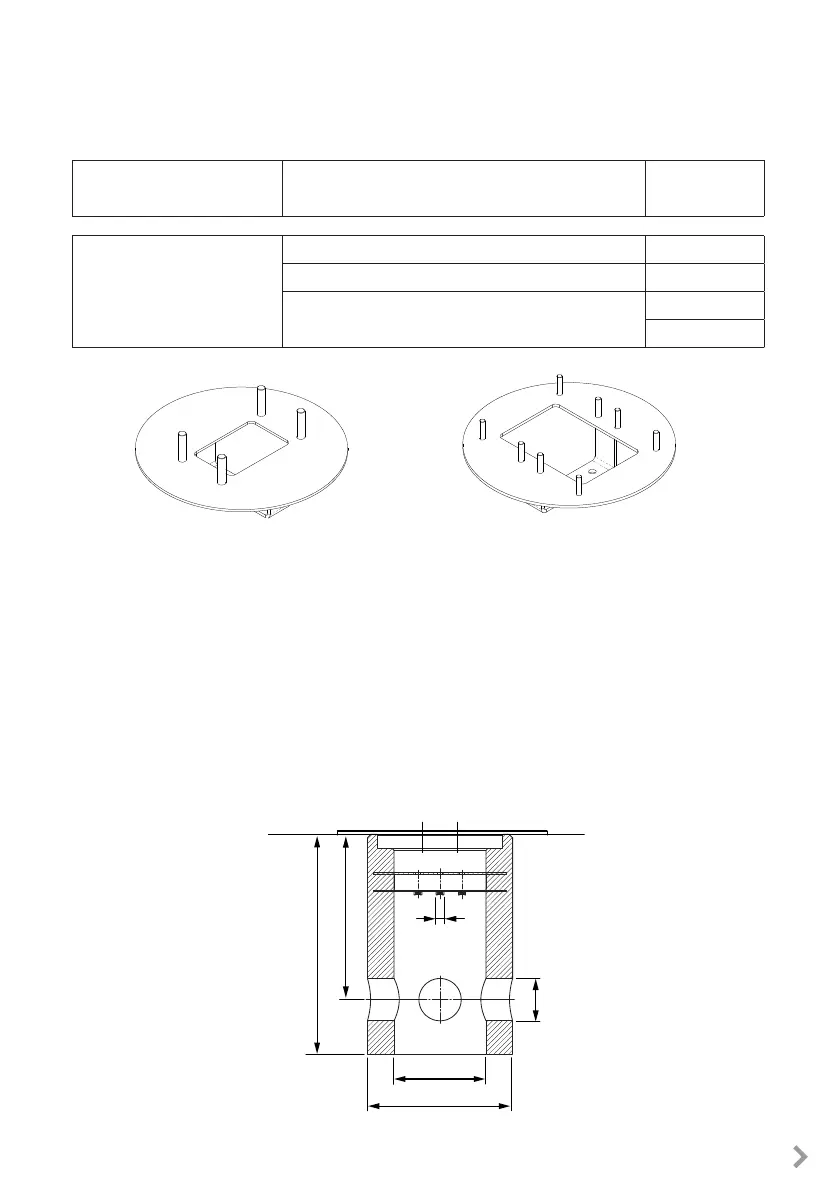

6.6. Ground mounting on Unimi concrete foundation
This installation example describes the installation procedure when a concrete foundation supplied by
Unimi - Solutions is used.
Installation accessories
Ground mounting pole EVTL43.00 1 pcs (1 x EVB)
2 pcs (2 x EVB)
Installation accessories,
order from www.unimi.se
Concrete foundation 1 pcs
Cover plate 1 pcs
Adapter for 1 x EVB, product code US7650 1 pcs
Adapter for 2 x EVB, product code US27657 1 pcs
Note! When using the adapter for two charging stations (US27657), you can get up to four charging outlets.
US7650 US27657
Installation steps
1. Dig a trench for cable conduits and an excavation pit for the concrete foundation to applicable
depths. The pit oor should be compacted and level.
2. Adjust the depth of the pit so that the top of the foundation will be ush with the nal surrounding
ground surface. Take into consideration the possible paving materials.
3. Cover the unused conduit openings with plugs, which are included in the foundation delivery.
395
250
Ø15
Ø115 (x4)
450
600
