16. Connect the plug-in couplers from the charger to the respective couplers in the extension box.
17. Attach the plastic shield in place.
18. Close the front cover.
19. A label set of RCBO testing instructions is included in the delivery. Attach a language specic label on
the extension box on a position where it can be seen.

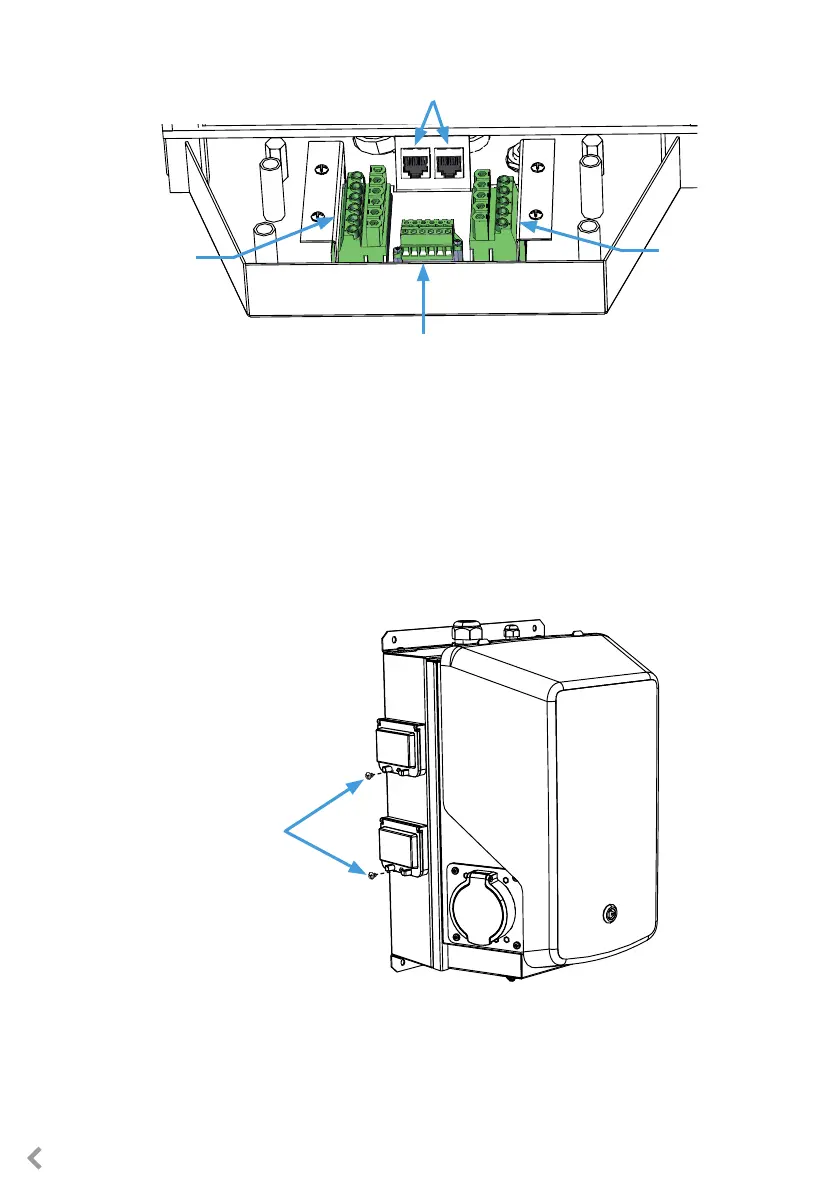

Connector for the
socket on the left
Connector for the
socket on the right
Bus connector for the
energy meters
Ethernet RJ45 connectors
You can lock the covers
with the screws included.
