The maximum quantity of connected charging stations depends on the system dimensioning made by
qualied professional.
Charging station 1 Charging station 2
L1
L2
L3
N
PE
L1
L2
L3
N
PE
L1L2L3NPE
IN
ETH1 ETH2
ETH1 ETH2
Charger

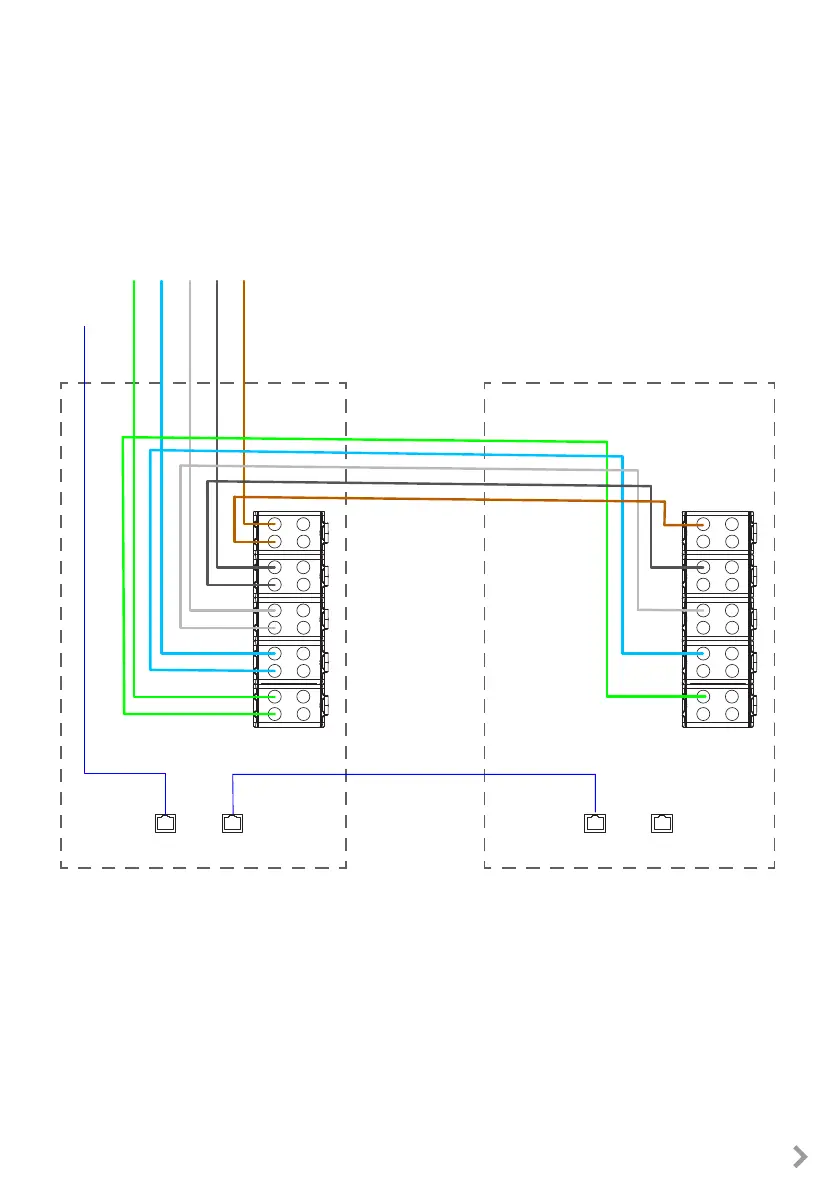

Parallel connection of charging stations
Supply cable Ø 18 - 25 mm
(MCMK 4x25+16)
Alternative cable entry from bottom
See chapter 6.2. Cable entries
Power Supply
Data cable
