Entrematic Ditec E2H - Example Application: One Swinging Door Wing

73
IP1967EN - 2016-08-01
When the E2H control panel is
used in applications for single
wing automations it is possible
to make the following connec-
tions.

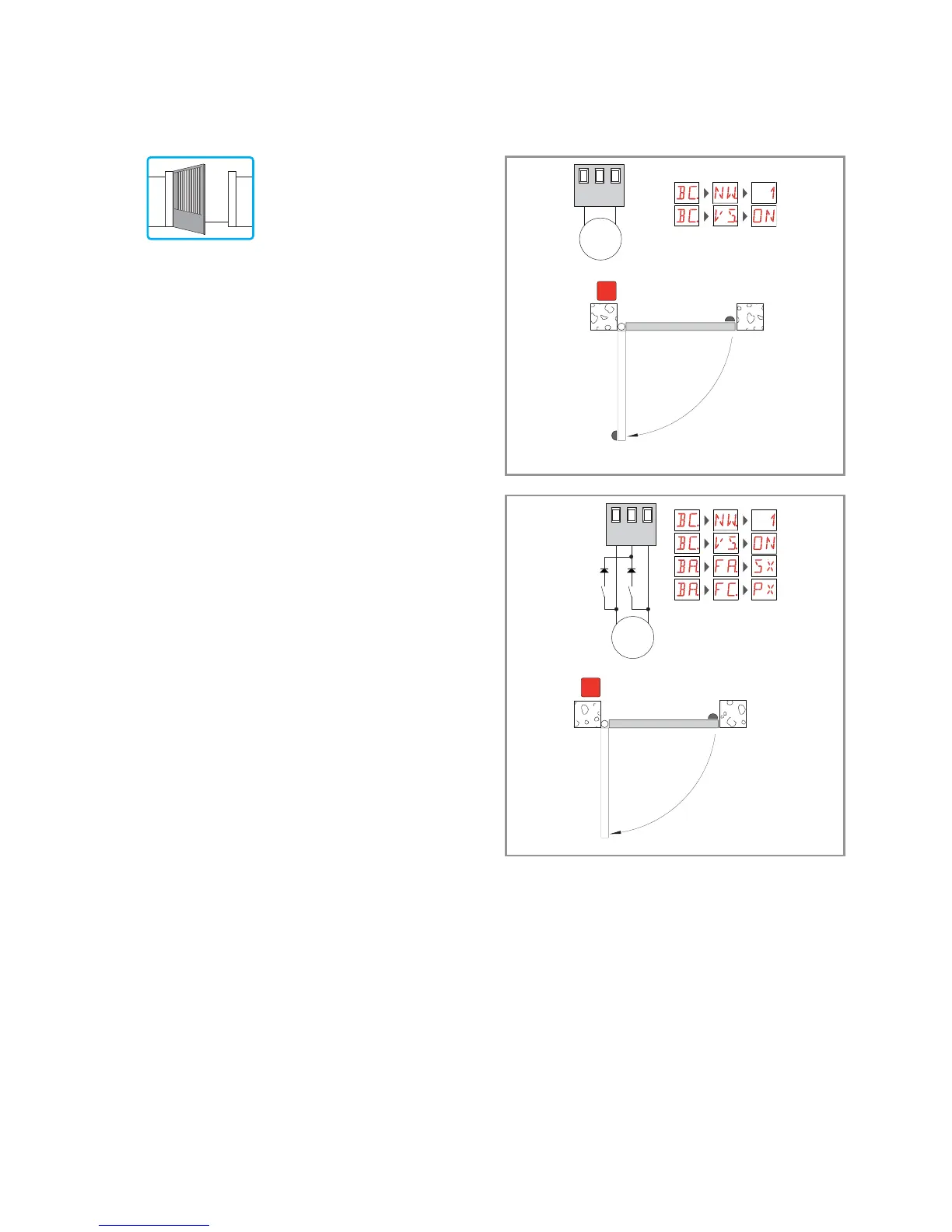

(Fig. 14.1) Installation with mechanical door-
stops in opening and closing phases, without
the use of electric limit switches.
(Fig. 14.2) Installation with mechanical door-
stop in closing phases, with the use of electric
limit switches.
33 32 31
24V=
1
Motor 1
33 32 31
1
24V=
Motor 1
Fig. 14.1
Fig. 14.2
14. Example applications for automation with
one swinging door wing
