IP1967EN - 2016-08-01

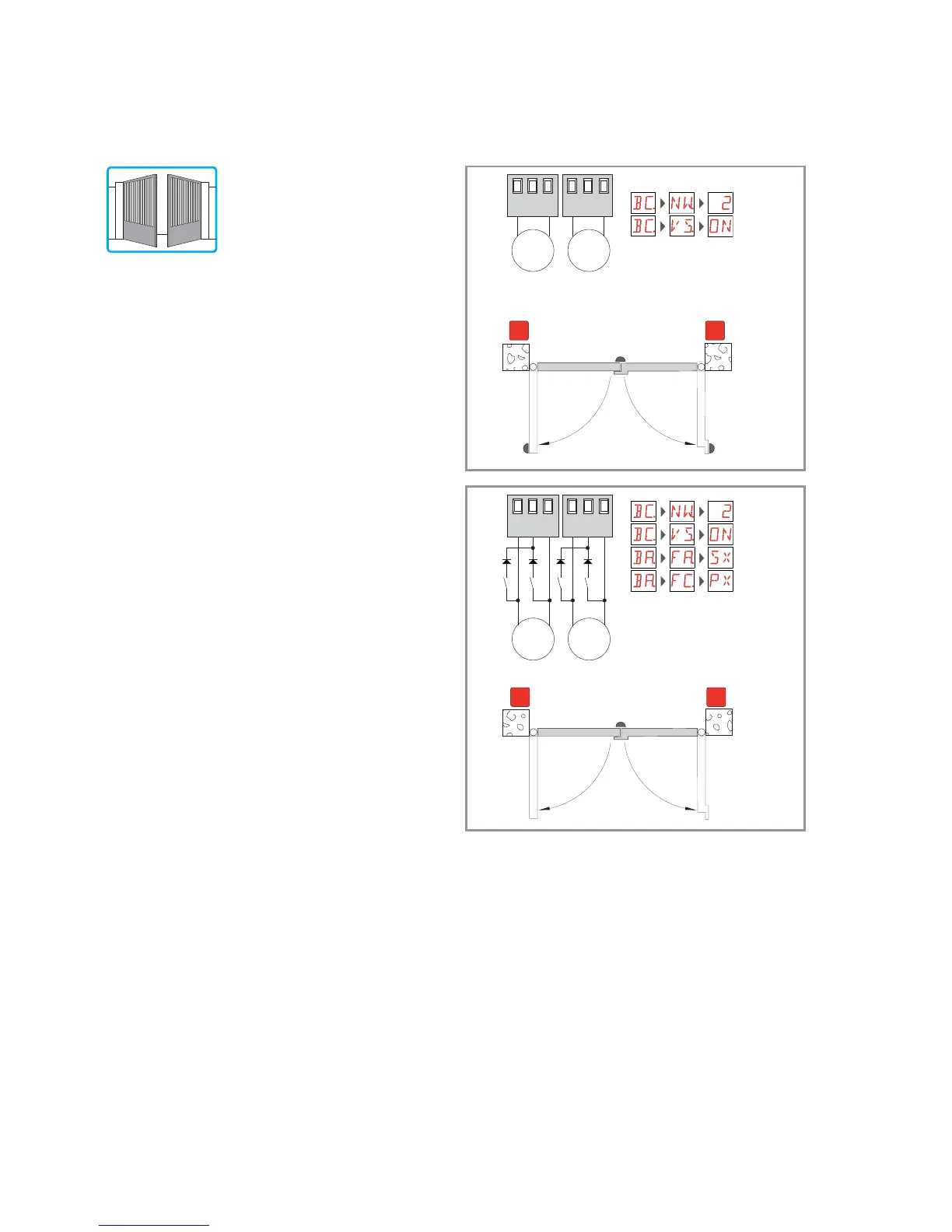

When the E2H control panel is
used in applications for double
wings automations with over-
lapping it is possible to make
the following connections.
(Fig. 13.1) Installation with mechanical door-
stops in opening and closing phases, without
the use of electric limit switches.
(Fig. 13.2) Installation with mechanical door-
stop in closing phases, with the use of electric
limit switches.
36 35 34 33 32 31
24V=24V=
Motor 1Motor 2
12
36 35 34 33 32 31
24V=24V=
Motor 1Motor 2
12
Fig. 13.1
Fig.13.2
13. Example application of automation with two
swinging door wings
