Envicool XRow Series - Page 18

Shenzhen Envicool Technology Co., Ltd.
13

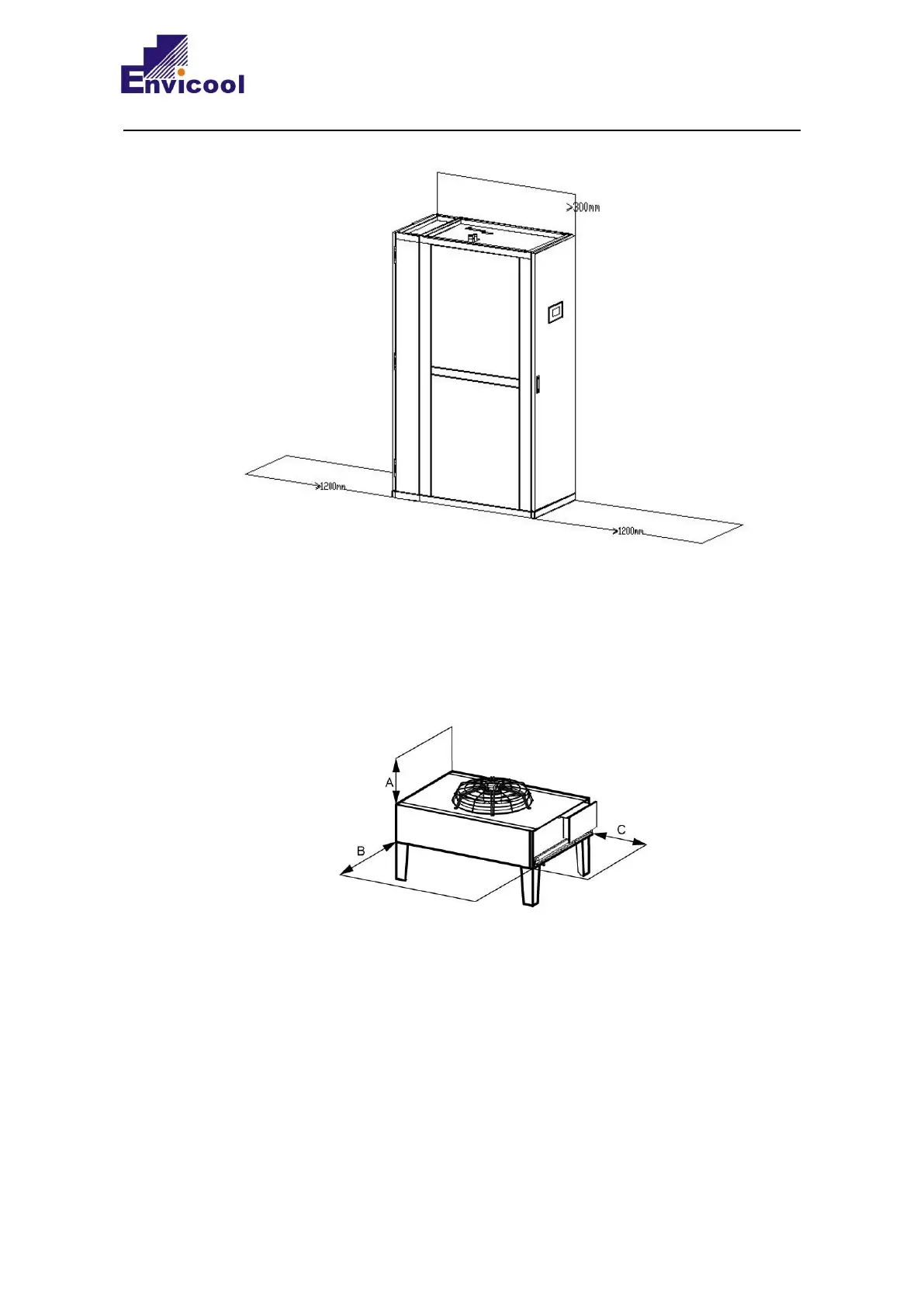

Fig. 2-7 Schematic diagram of installation and maintenance space of XRow series inter-row air
conditioner indoor unit
 CS/CD series air conditioner can be Horizontal Mounted and Side Mounted,installation and
maintenance space are refered in Fig.2-8~Fig.2-12 and Table 2-8.
Fig. 2-8 Schematic diagram of installation and maintenance space on the front of a single
fan outdoor unit
