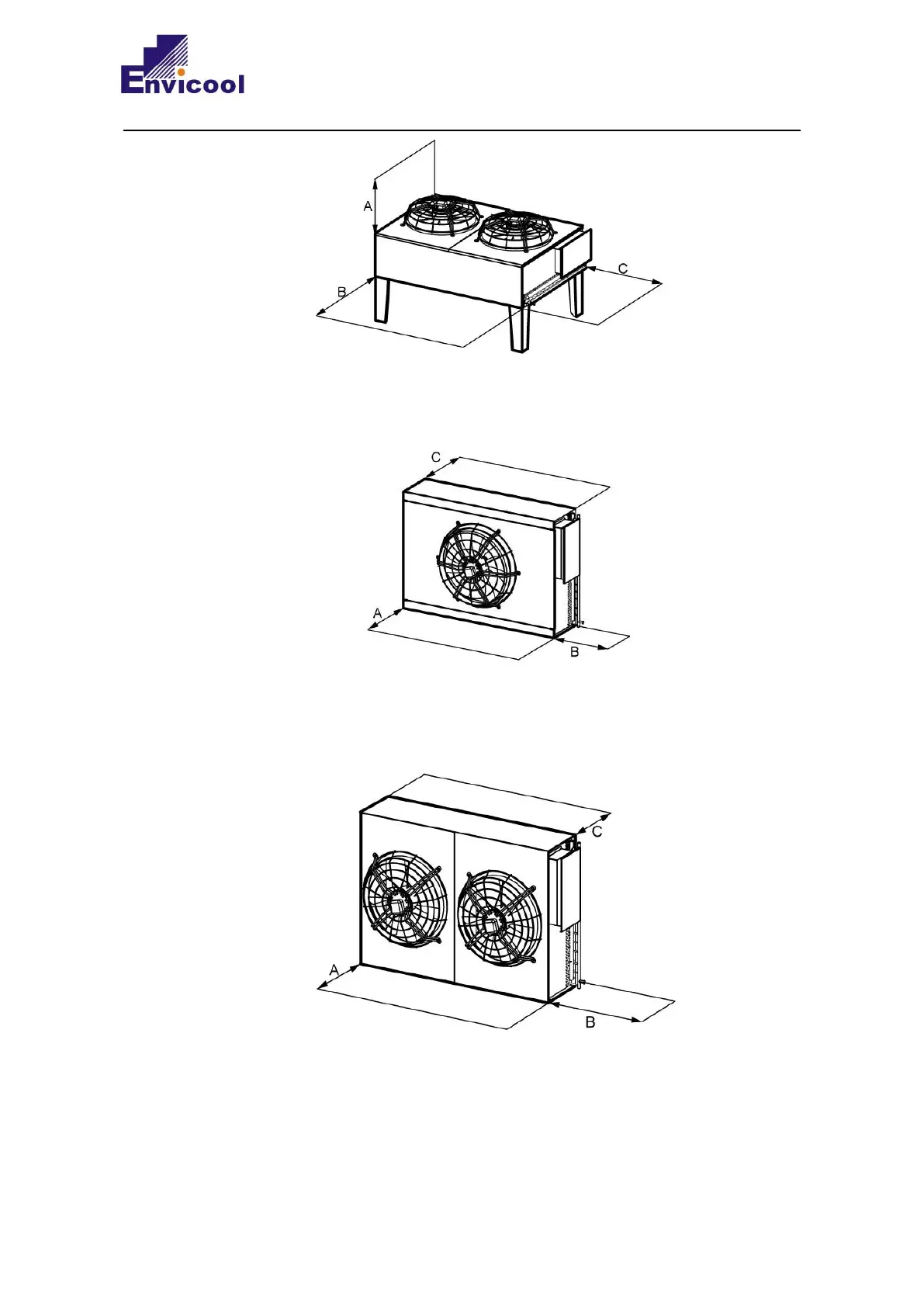

Fig. 2-9 Schematic diagram of the installation and maintenance space on the front of the
dual-fan outdoor unit
Fig. 2-10 Schematic diagram of installation and maintenance space on the side of a single
fan outdoor unit
Fig. 2-11 Schematic diagram of the installation and maintenance space on the side of the dual fan
outdoor unit
