15

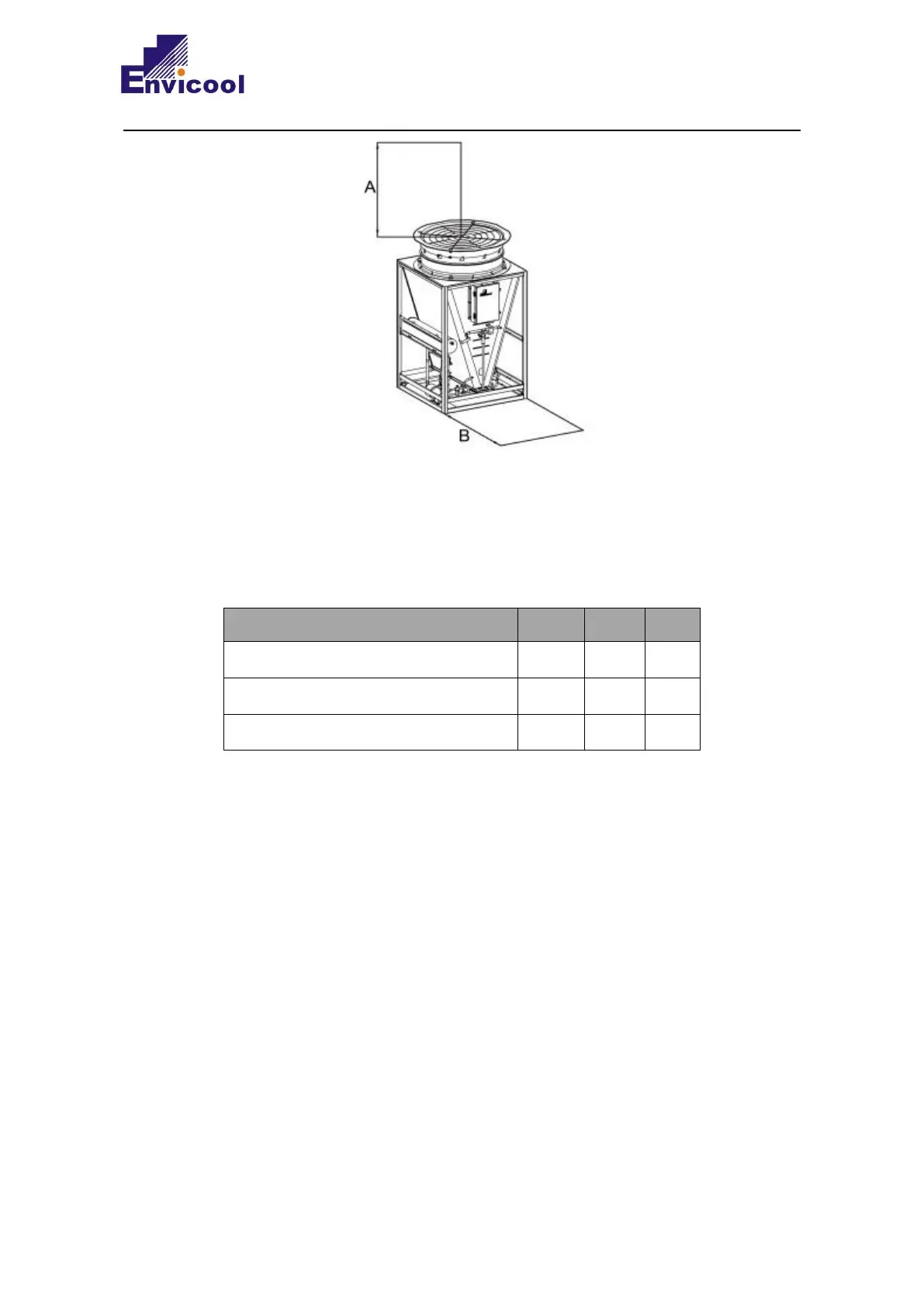

Fig. 2-12 Schematic diagram of V-shaped condenser installation and maintenance space
Table 2-8 Schematic diagram for the installation and maintenance space
of the outdoor unit of the CS series air conditioner(Unit:mm)
Model
A
B
C
CS38/CS46/CS54/CS66/CS78/CS86
≥4000
600
600
CS38U/CS46U/CS54U/CS66U/CS78U/CS86
U
≥4000
600
/
CS38P/CS46P/CS54P/CS66P
/CS78P/CS86P
≥4000
600
/
Installation requirements for multiple condensers：
 In order to ensure the heat dissipation performance of the unit, please install the condenser
where the outdoor air flow is smooth;
 In order to reduce the impact of noise on the surrounding environment, please install the
condenser as far as possible from the residential area;
 To ensure the normal oil return of the system, please avoid installing the condenser below
the indoor unit as much as possible;

Should be installed vertically upwards;

When installed side by side, the condensers should be installed at the same height to avoid
short circuit of return air. As shown in Figure 2-13
