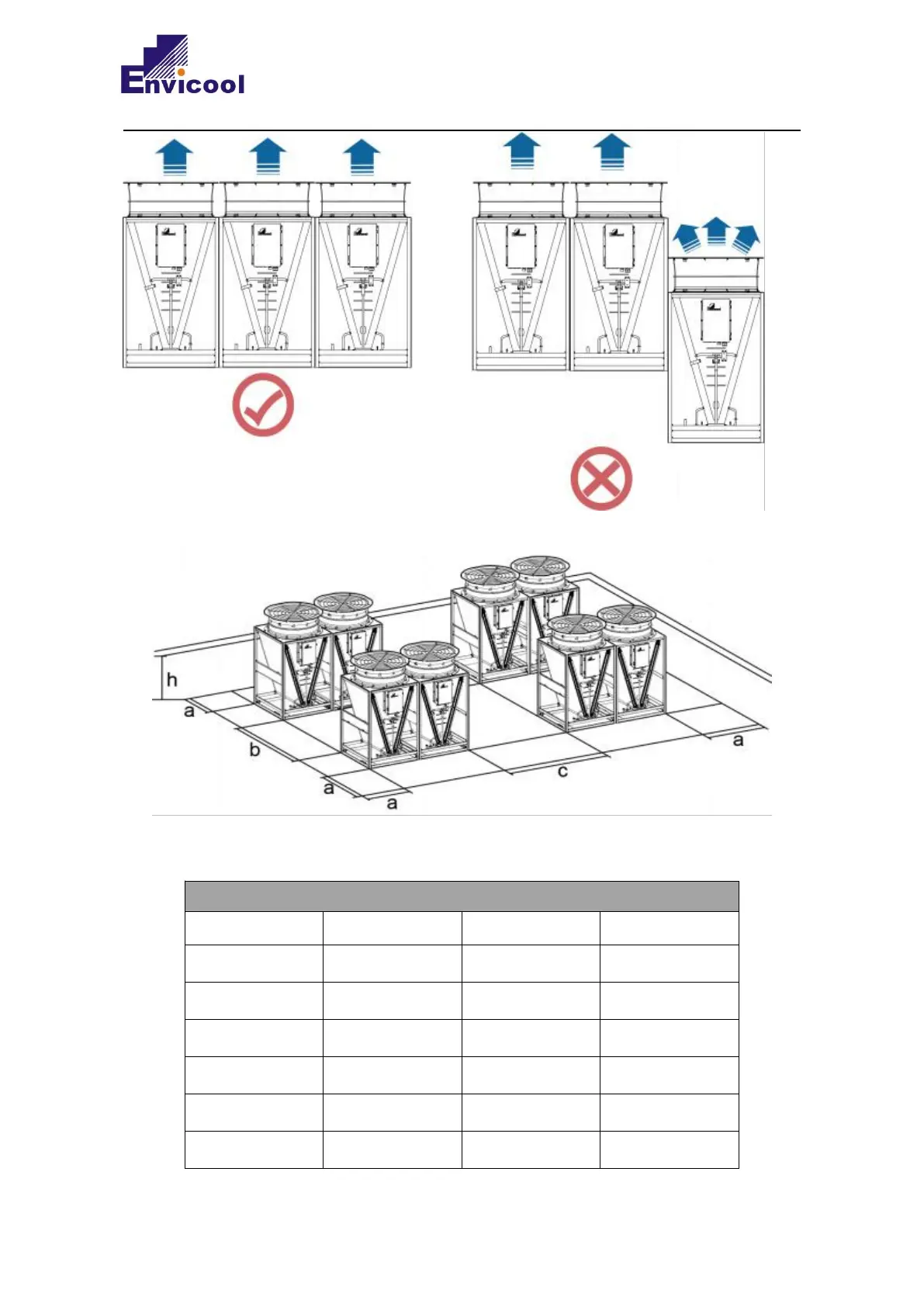

Fig. 2-13 Side-by-side installation layout
Fig. 2-14 Scattered installation space
Table 2-10 Scattered installation size table
Number of condensers installed separately 30 ~ 50
Model
a
b
c
CS38U
1200
1500
1500
CS46U
1200
1500
1500
CS54U
1200
1500
1500
CS66U
1200
1500
1500
CS78U
1200
1500
1500
CS86U
1200
1500
1500
