Enviro E33 - Optional 3 and 4 Sided Trim-Able Panels

Secondary Installation
oPtionaL 3 tRimmabLe PaneLs:
Modifying the Surround Panel:
The E33 Trimmable Surround Panels are large rectangular panels that may be cut for use in cases that a non-
standard replace opening (e.g. an arched opening) is to be lled. Optionally this surround can be left uncut
and placed in front of the replace opening.
1. Measure the replace opening and/or make a template of the replace opening.
2. Transfer the measurement to the Trimmable Surround.
3. If desired, offset the measurements by approximately
1
/8” (3mm) to the inside; this will allow for the panel
to be placed just inside the replace opening for a cleaner appearance.
4. Cut along the preferred line (from direct measurements of offset) and remove any sharp edges.
5. The panel can be touched up with a high temperature metallic black paint available from your dealer.
INSTALLATION:
1. Using the supplied hardware install a Trimmable Panel Bracket, on its short leg, onto each side of the stove
using a T-20 Torx screwdriver. See Figure 31 for the screw location and bracket orientation.
2. Install the Trimmable Panel, WITH THE FLANGES FACING OUT, onto the stove and in front of the Panel
Brackets by hooking the Panel’s top ange onto the alignment pins on top of the stove (See Figure 31)
3. Using the remaining hardware attach the Trimmable Panel to the Panel Brackets using a T-20 Torx
screwdriver (See Figure 32)
26

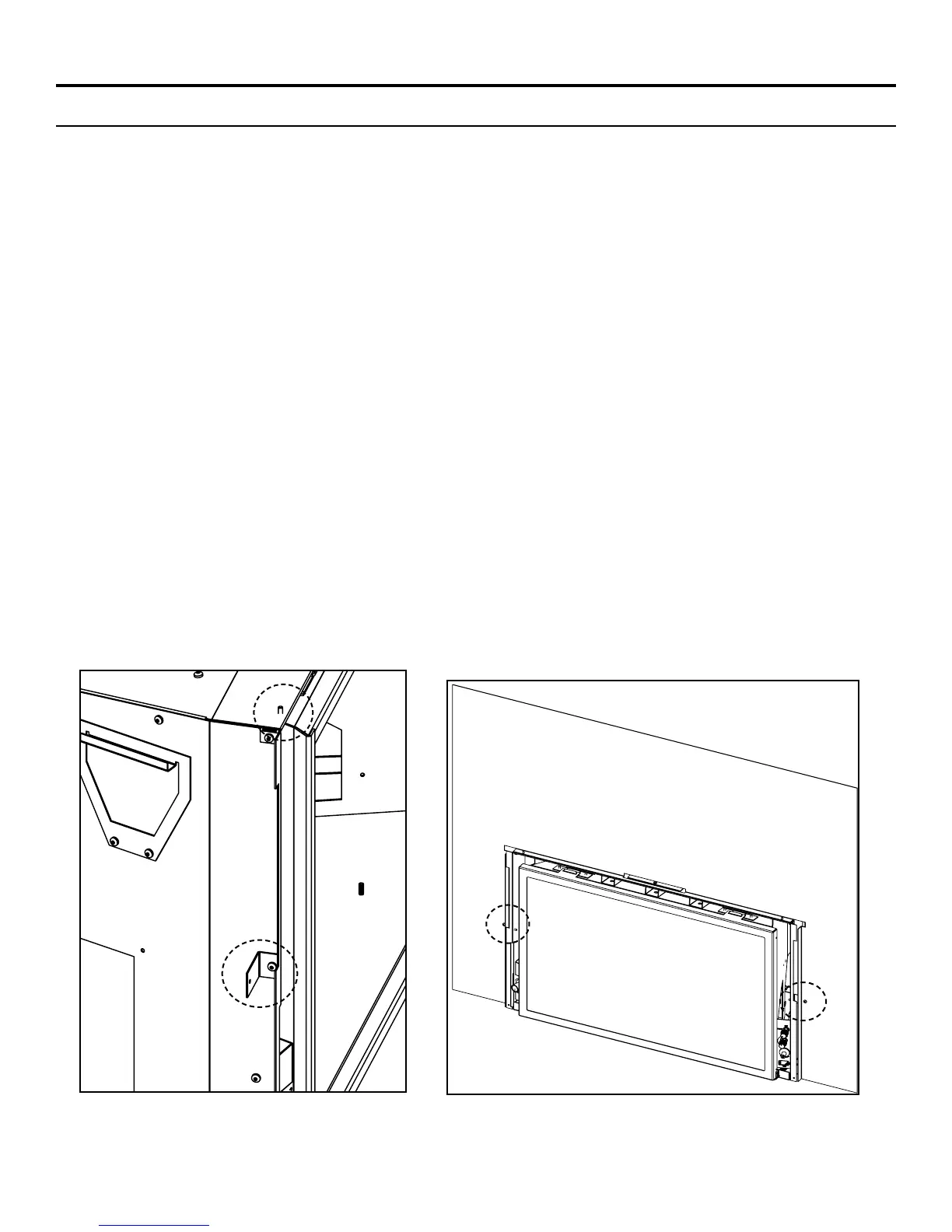

Figure 31: Panel Bracket
Installed and Pin Location
Figure 32: Trimmable
Panel Installed
