fiRebox LineR anD buRneR tube RemoVaL:
NOTE: The rebox liners are fragile and should be handled gently.
1. Ensure the E33 is turned off and allow the unit to cool.
2. Remove the glass door as shown in the
maIntenance anD serVIce - glass Door remoVal.
WARNING: Do not touch or attempt to remove the glass if the replace is not completely cool.
Never operate the replace with the glass removed.

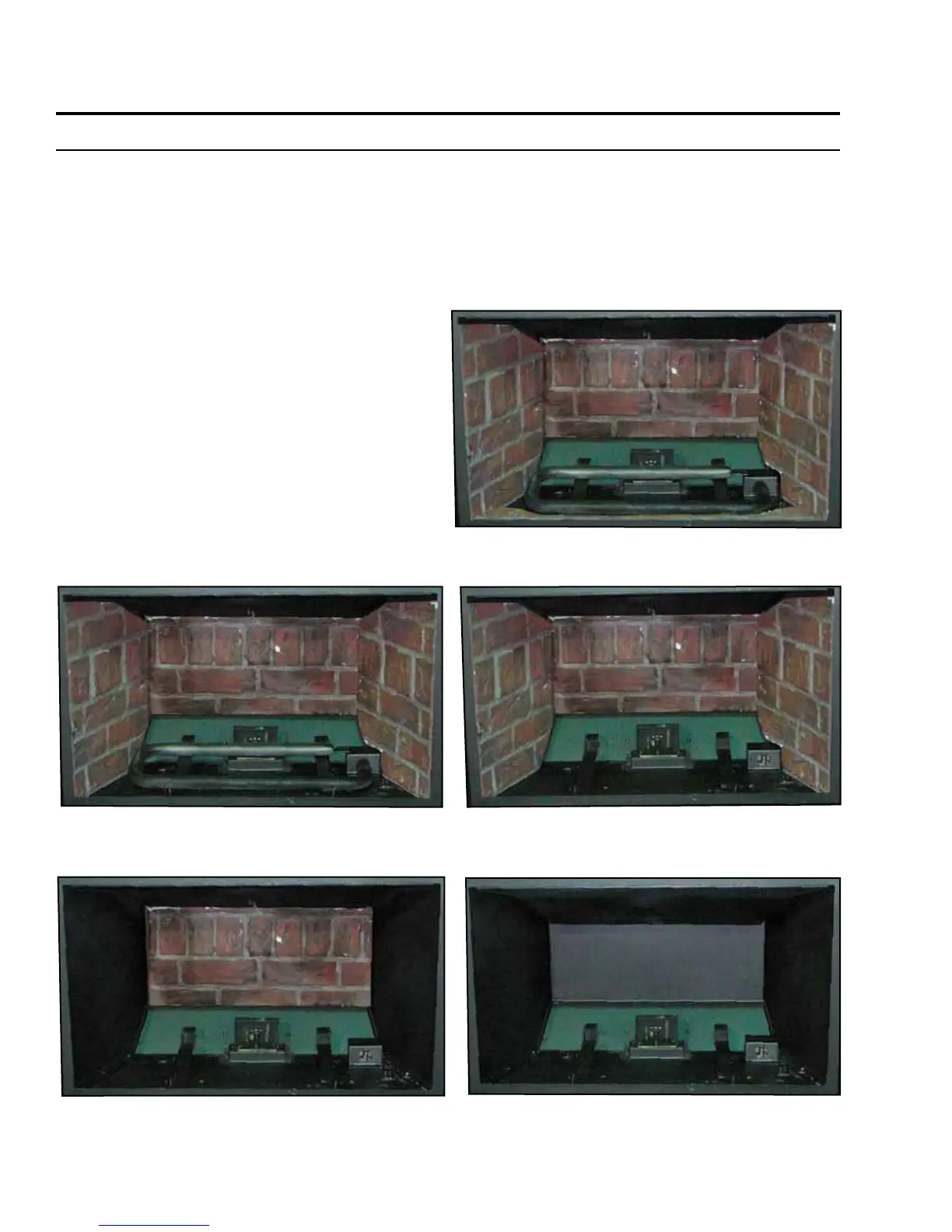

Figure 34: Carefully remove the front brick panel
on the bottom of the rebox by lifting it up.
Figure 36: The side brick panels can be removed
by pulling them towards the center of the rebox.
Secondary Installation
28
Figure 35: To remove the burner tube, gently pull
it out of the venturi box.
Figure 37: Remove the rear brick panel by pulling
it forward off of the ledge.
Figure 38: Firebox with all brick panels and burner
tube removed.
3. Remove the log set and all ember material (if
installed).
4. Use the following steps to remove the liners and
the burner tube.
NOTE: Follow the steps in the reverse order for
reassembly.
