27
Secondary Installation
suRRounD PaneL instaLLation:
WARNING: The surround becomes hot when the unit is operating; ensure that the unit is turned off, and that
it has cooled to room temperature before beginning this installation.
Height Width
3-Sided Surround 26
1
/2” (673 mm) 44
1
/8” (1121 mm)
Table 7: Surround Dimensions.
Please check components supplied with this kit. If components are missing or have been damaged, contact your
dealer, distributor or courier company before starting this installation.
IMPORTANT: The panel must not seal ventilation openings in the replace.
INSTALLATION:
If Installing a Contemporary or Extruded surround panel lift the access door up until it locks in place. Lift the
panel upright in front of the replace with the top mounting ange pointing towards the replace. Slide the panel
over the corresponding screws on top of the stove and at the bottom of the stove on each side (see Figure 33).
Ensure the panel is secure before releasing it. The bottom screws can be tightened on the Contemporary and
Extruded surrounds for a more permanent install.
REMOVAL:
Lift the surround straight up in order to unhook it from the screws. Pull the surround away from the replace.

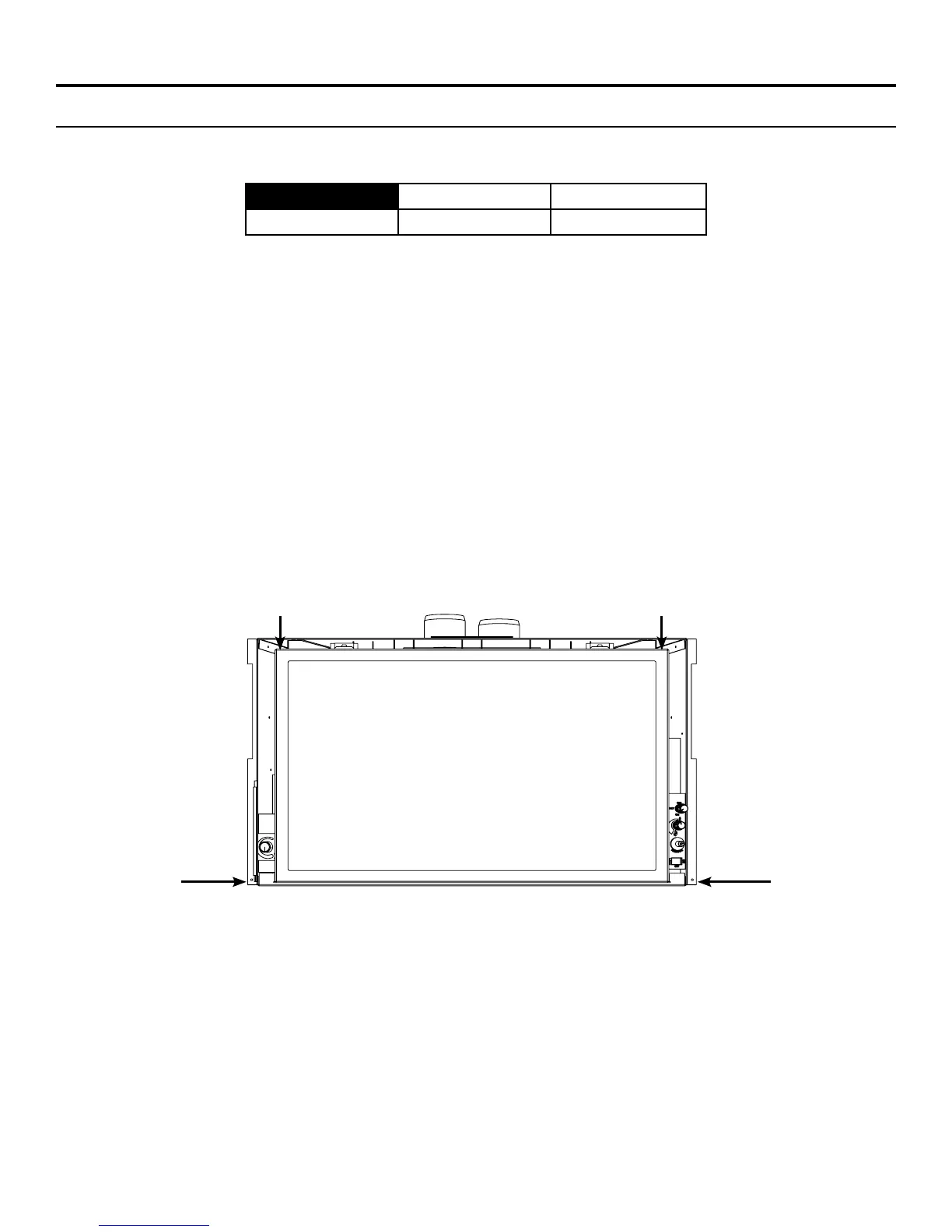

Figure 33: Screw Locations.
BURNER SWITCH WIRING INSTALLATION:
The burner switch supplied with the surround comes pre-installed and wired. The wiring from the burner switch
simply needs to be connected to the wiring on the E33 unit.
The wiring harness for the burner switch has one (1) blue wire, one (1) grey wire and two (2) purple wires.
The blue wire connects to the blue wire on the E33 unit, the grey wire connects to the grey wire on the E33 unit,
and the purple wires are used to connect an optional thermostat.
CLEANING:
Painted surfaces should be periodically wiped with a damp cloth. Never clean the face when it is hot.
