29
Secondary Installation
Log set anD embeR instaLLation:
NOTE: The logs are fragile and should be handled gently.

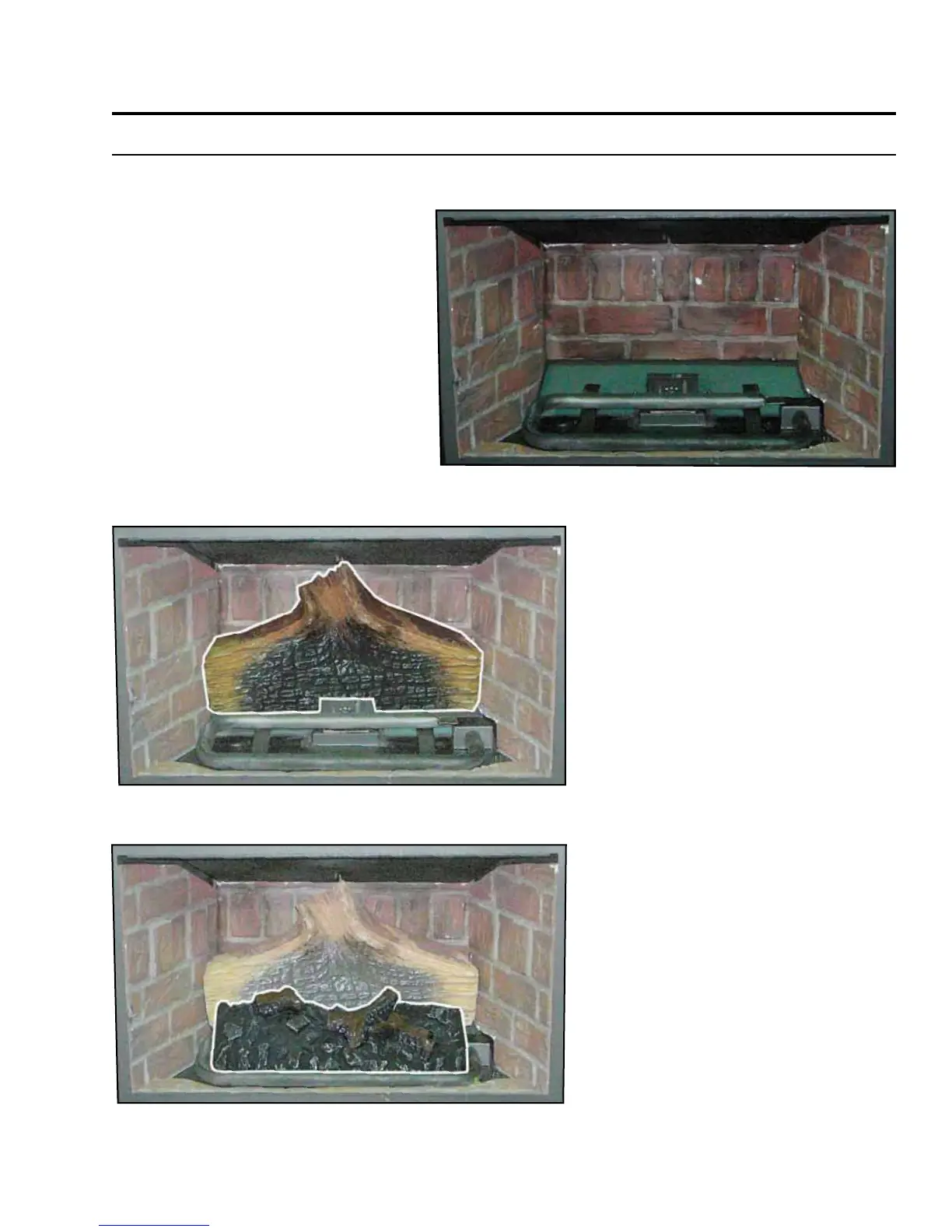

Figure 39. Empty rebox.
Figure 40. First Stage Log Set Installation.
Figure 41. Second Stage Log Set Installation.
Figure 40: The back log rests on top
of the pilot and against the back brick
panel. There are two screws sticking
up from the support brackets that go
into holes in the bottom of the back
log.
Figure 41: Place the ember bed in
the center of the burner tube and pull
it forward as far as it will go. Ensure
it does not obstruct any part of the
burner.
WARNING: Failure to position the
parts in accordance with these diagrams
or failure to use only parts specically
approved with this appliance may result
in property damage or personal injury.
The underside of the logs are contoured
to make alignment easier. Using the
pictures provided, carefully set the logs
in place (see Figures 39 through 47).
Figure 39: The rebox showing the brick
panels and burner tube already installed.
