24
aDjusting the PiLot fLame:
The pilot ow adjustment is set to maximum at the factory and should not need to be adjusted. The pilot
ame should envelope ⅜” to ½” (10 to 13mm) of the thermocouple (see Figure 28). However, should
the need arise, follow Steps 1- 2 below.

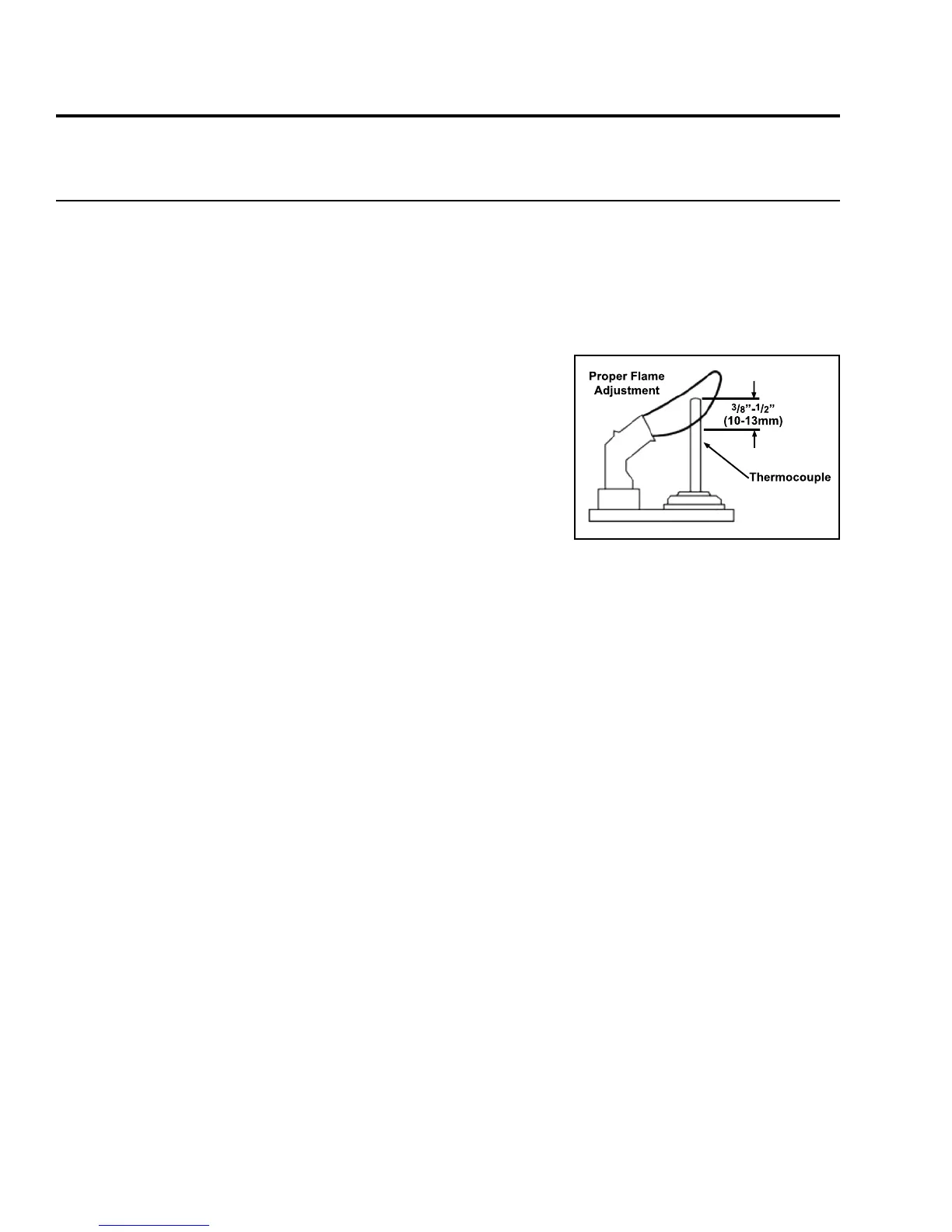

Figure 28: Proper Pilot Flame.
3
/
8
”-
1
/
2
”
(10-13mm)
Thermocouple
Proper Flame
Adjustment
Initial Installation
QUALIFIED INSTALLERS ONLY
1. The adjustment screw can be reached through the front of the
unit using a 10 inch at head screw driver (see Figure 27 for
location on valve).
2. Turn the adjustment screw clockwise to decrease or
counterclockwise to increase pilot ame.
