Secondary Installation

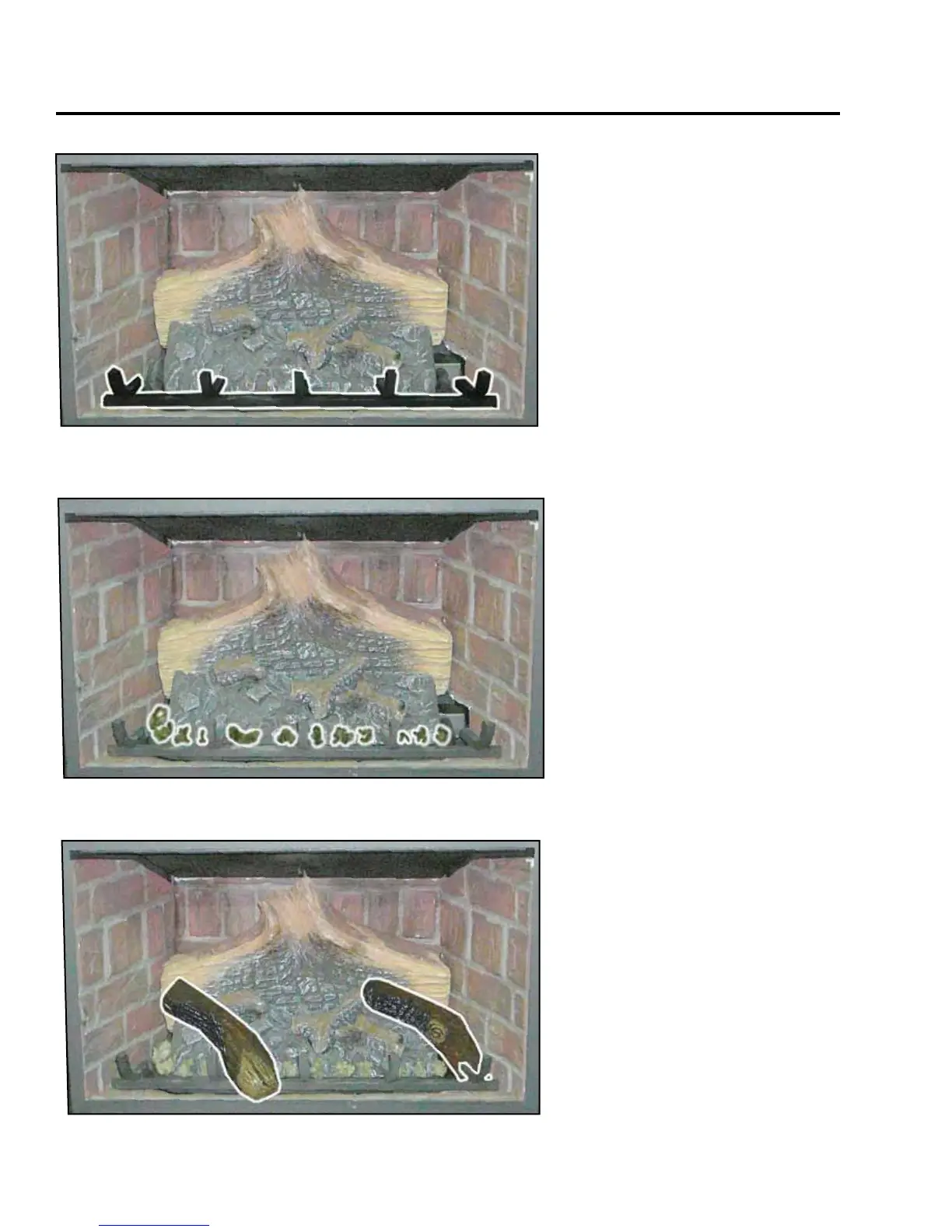

Figure 42. Third Stage Log Set Installation.
Figure 44. Fifth Stage Log Set Installation.
Figure 43. Fourth Stage Log Set Installation.
Figure 42: Place the log grate in
front of the burner tube using the two
slotted mounts underneath.
Figure 43: The ember wool comes in
chunks that can be ripped into smaller
pieces.
Place quarter-sized pieces of the ember
wool irregularly onto and around the
front of the burner to create a realistic
look.
WARNINGS: DO NOT pack this
ember material as this could create an
unsafe condition. The pieces should
be lightly placed so they don’t block
any of the burner ports.
CAUTION: Use only the type of ember
material supplied with this replace.
Due to the irregular size of the ember
material, there is more than required.
Use of other foreign materials on
the burners may create dangerous
conditions.
Figure 44: The left and right logs t as
shown. The bottom of the left log is
contoured to t the log grate.
30
