Secondary Installation
NOTE: While the glass is still removed,
it is recommended that the gas line be
purged by lighting the pilot.
When lighting the replace for the
rst time since the log set and embers
have been installed/replaced, watch
for ignition at ALL the burner ports.
If a long delay is noticed, turn the
appliance off and wait for it to cool
down. Remove the glass and rearrange
the ember material, making sure none
of the burner port holes are blocked.
Never operate the replace with
the glass door removed.

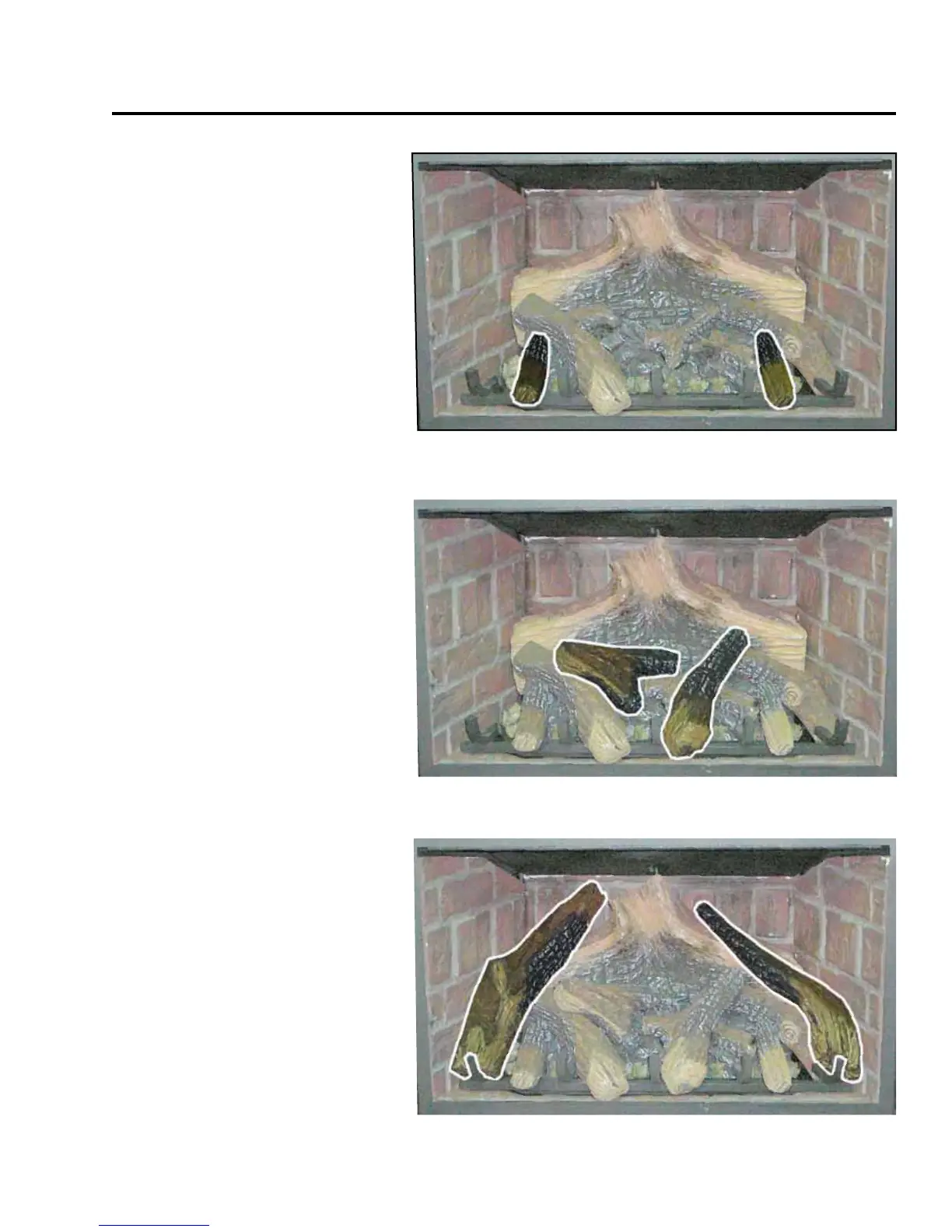

Figure 45. Sixth Stage Log Set Installation.
Figure 45: Place the small left and
right logs as shown. The bottoms of
both pieces have contours to t on the
log grate.
Figure 46: Place the two center logs
as shown.
Figure 47: Place the two large outer
logs as shown. The bottom ends of
the logs will t the shape of the log
grate.
Figure 46. Seventh Stage Log Set Installation.
Figure 47. Eighth Stage Log Set Installation.
