Division:
33 I 77
In total, the alarm system consists of the following components:
1. Display
2. Electronics box
3. Sensor

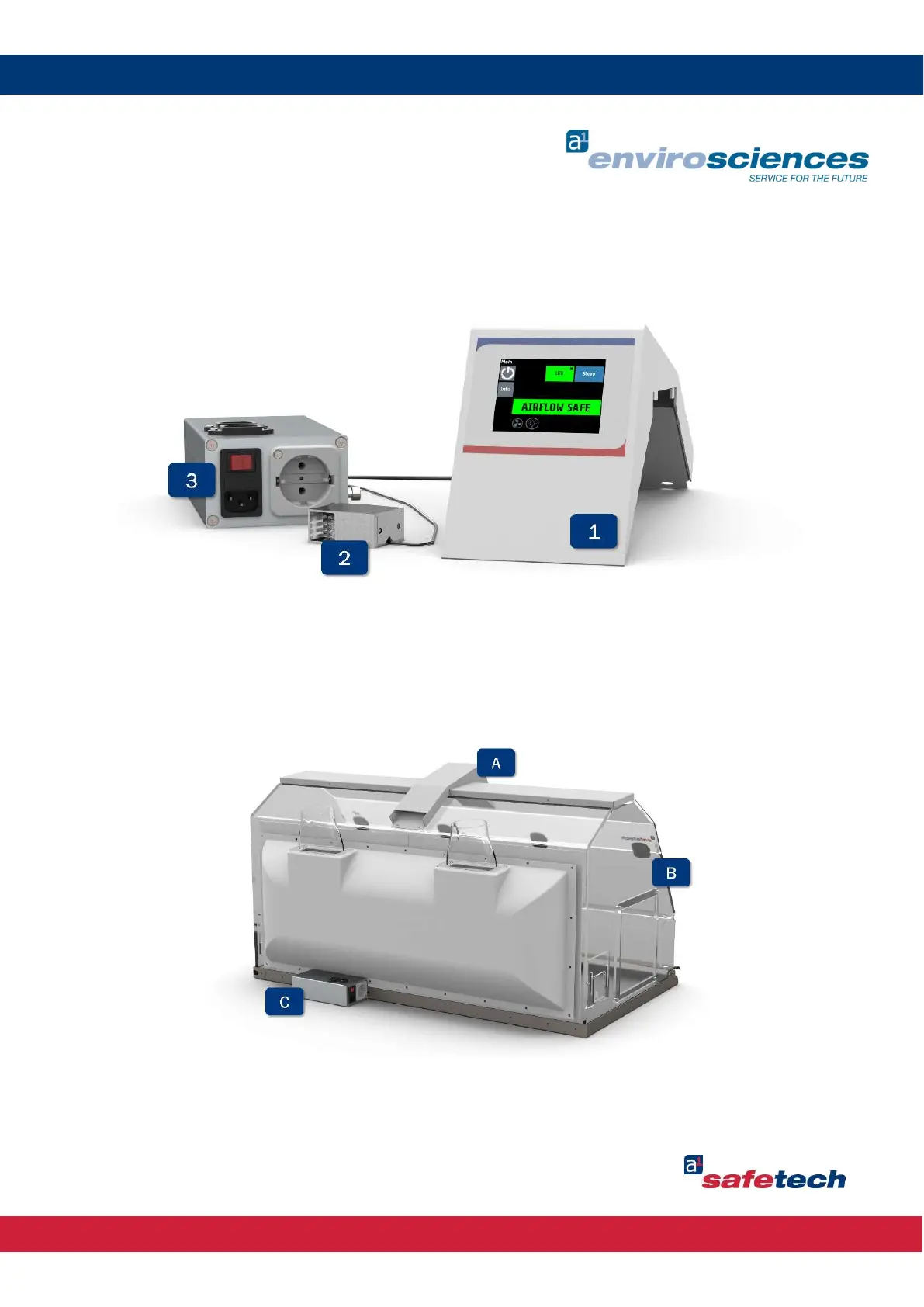

Figure 15 - Individual presentation of the alarm system components for ST1 safety weighing enclosures
The display (A) is centred on the top of the safety weighing enclosure (B). In the standard
version, the electronics box (C) is mounted at the rear of the stainless steel frame of the
enclosure. Optionally, it can also be mounted under the table or next to the system.
Figure 16 - Position of the alarm components on ST1-1200
