Envirosight Verisight Pro
+
Display Features
This section describes the characteristics of the front panel LCD display.
Introduction
The front panel of the Verisig
ht Pro+
unit houses an (8inch) 20cm Sunlight
Readable Liquid Crystal Display (LCD) which is used to display live and recorded
video and on screen menus. The display parameters such as contrast, brightness,
color and backlight intensity may be adjusted to suit the environment in which
the unit is being viewed.

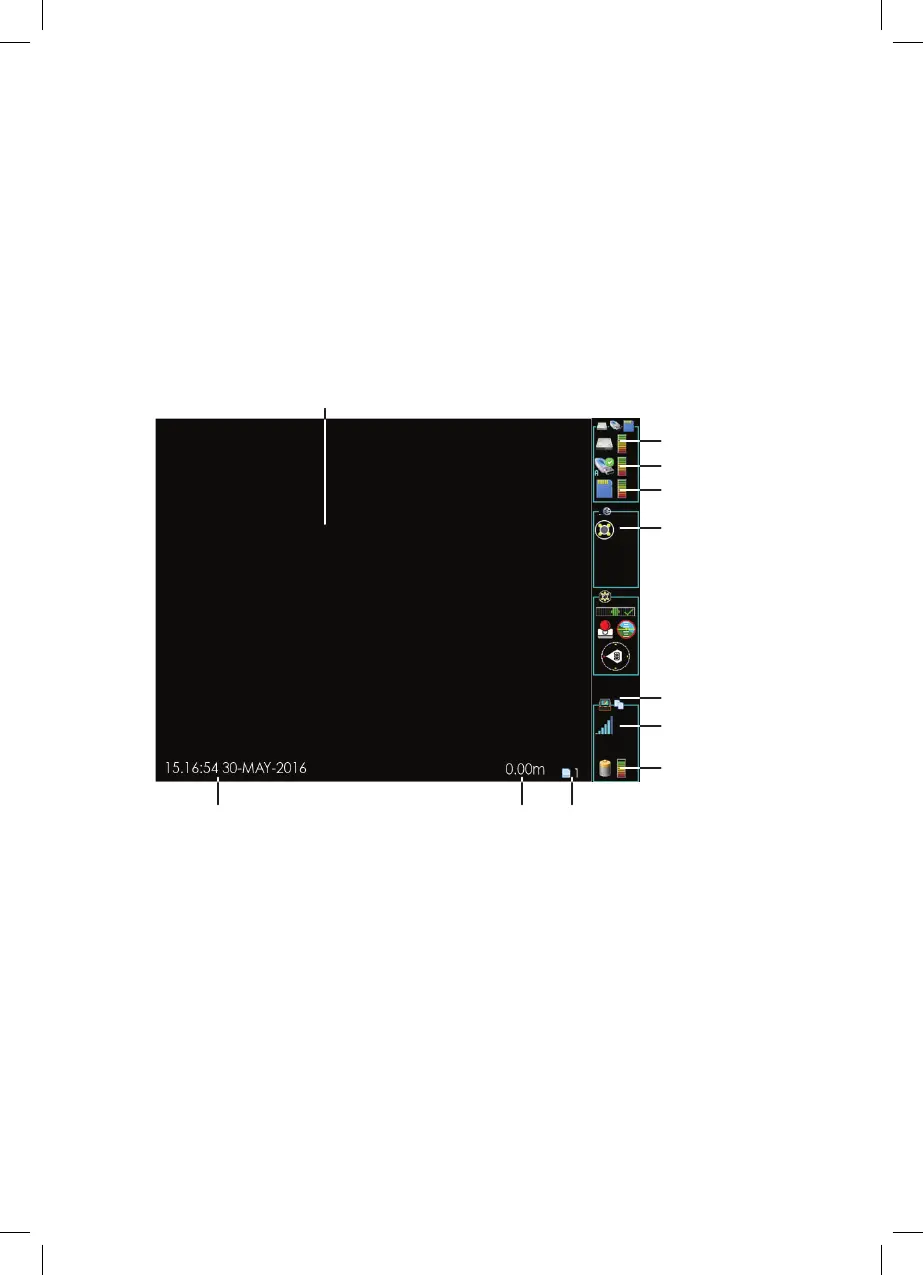

The live or recorded video picture is displayed in the left portion of the screen.
The right hand side is used to display a number of status icons which are seen
on the screen but are not recorded.
There are areas of text at the bottom of the picture showing date, time and
camera distance. This text is recorded with the video picture. Text can be also be
entered manually anywhere on the display. This is free text and is used to
annotate the survey and is recorded with the video picture. The color and
position of this text may be controlled with dedicated keys on the keypad.
Time and date Distance
Free text
Page number
Internal memory
SD card memory
USB stick memory
WiFi status
Camera status
Battery gauge
CCU status
31
