EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-23
Installation

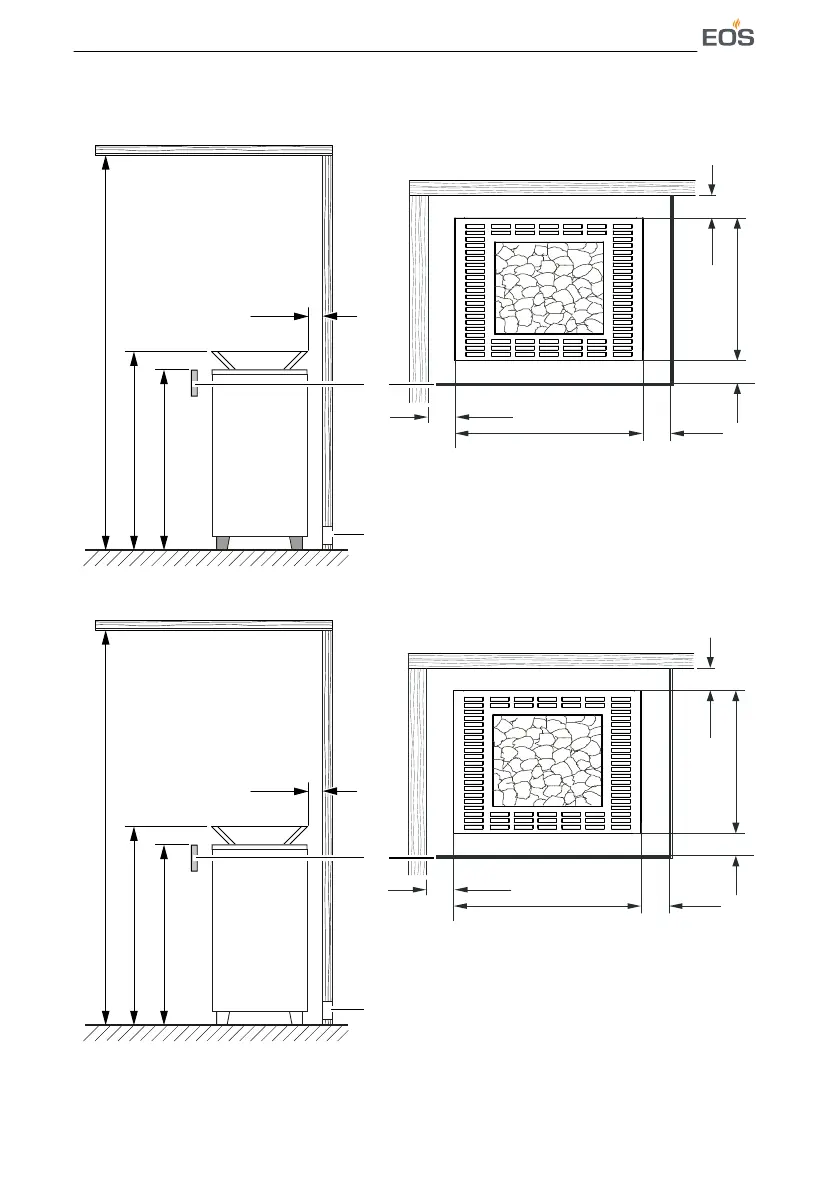

Dimensions and clearances for Cubo Avantgarde
 Cubo Avantgarde
A Heater guard rail B Air inlet
2.4 "
2.4 "
1.3 ft
1.26 ft
2.4 "
2.4 "
min. 190
cm
72 cm
79 cm
6 cm
6 cm
6 cm
40 cm
38,5 cm
6 cm
6 cm
A
B
min. 6.5 ft
2.4 ft
2.6 ft
2.4 "
A
B
Dimensions in cm
Dimensions in ft/in.
