EOS Cubo User Manual

EN-24 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde
EN Installation

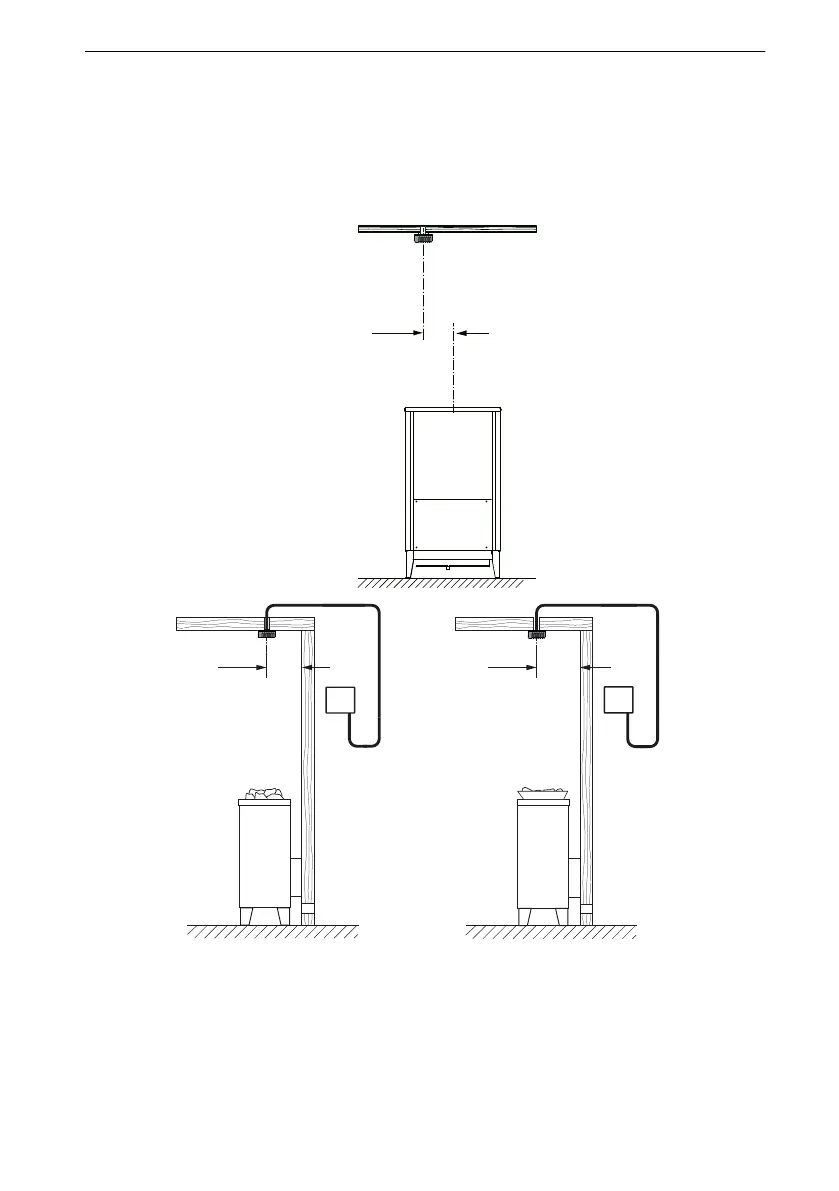

3.1.2 Temperature sensor
It is essential that the temperature sensor with the safety temperature lim-
iter (STB) is installed.
This temperature sensor must be installed where expected temperatures
are the highest, meaning above the heater.
The temperature sensor with the safety temperature limiter is not included
in the scope of delivery. For installation information, see the installation
instructions for EmoTec D/H USA/CAN.
Connect the sensor as shown in the circuit diagram for the respective con-
trol unit.
13 cm
5.1 "
11 cm
4.3 "
17 cm
6.7 "
Front view
Side view
EOS Cubo EOS Cubo Avantgarde

EOS Cubo Specifications

General

Brand	EOS
Model	Cubo
Category	Heater
Language	English
