18

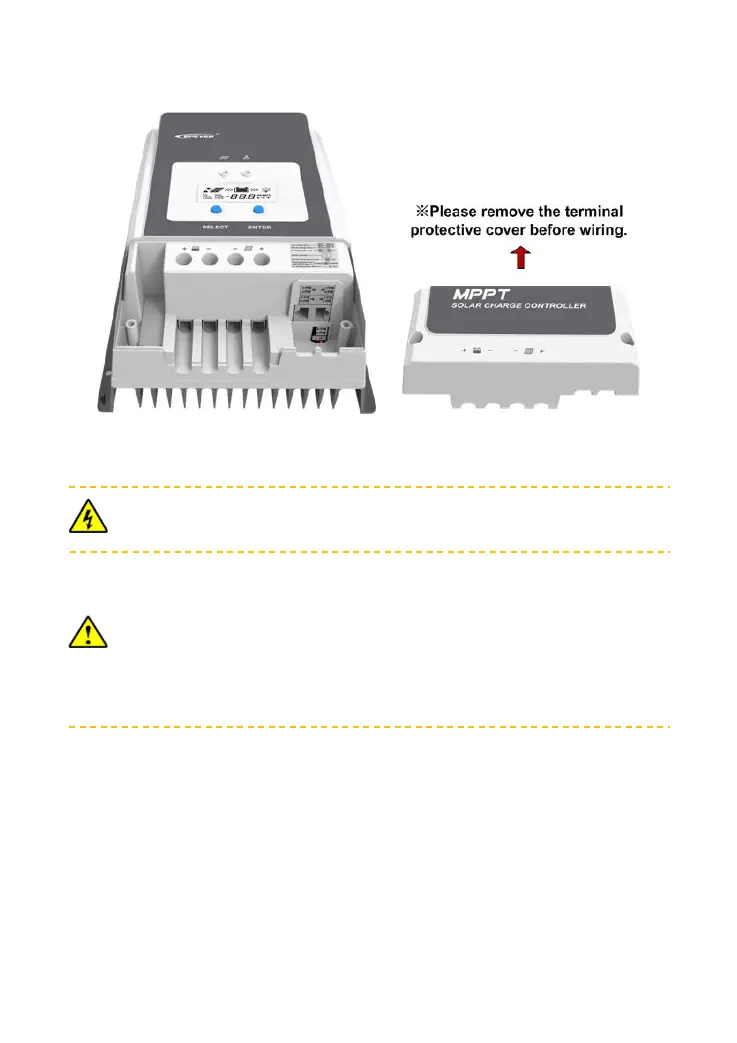

Step2: Remove the terminal protective cover.
Step 3: Connect the battery (Left) and PV (Right)
NOTE: Disconnect the system in the reverse order.
Tracer-AN series controllers have no battery reverse protection. Do not reverse
the battery during the wiring. Otherwise, the controller may be damaged.
During the wiring, please do not close the circuit breaker or fuse. Ensure that
the leads of "+" and "-" poles are polarity correctly.
A fuse whose current is 1.25 to 2 times the controller's rated current must be
installed on the battery side with a distance from the battery no longer than
150 mm.
Please connect the inverter directly to the battery, not to the controller's load
side.
