1.2 Characteristics

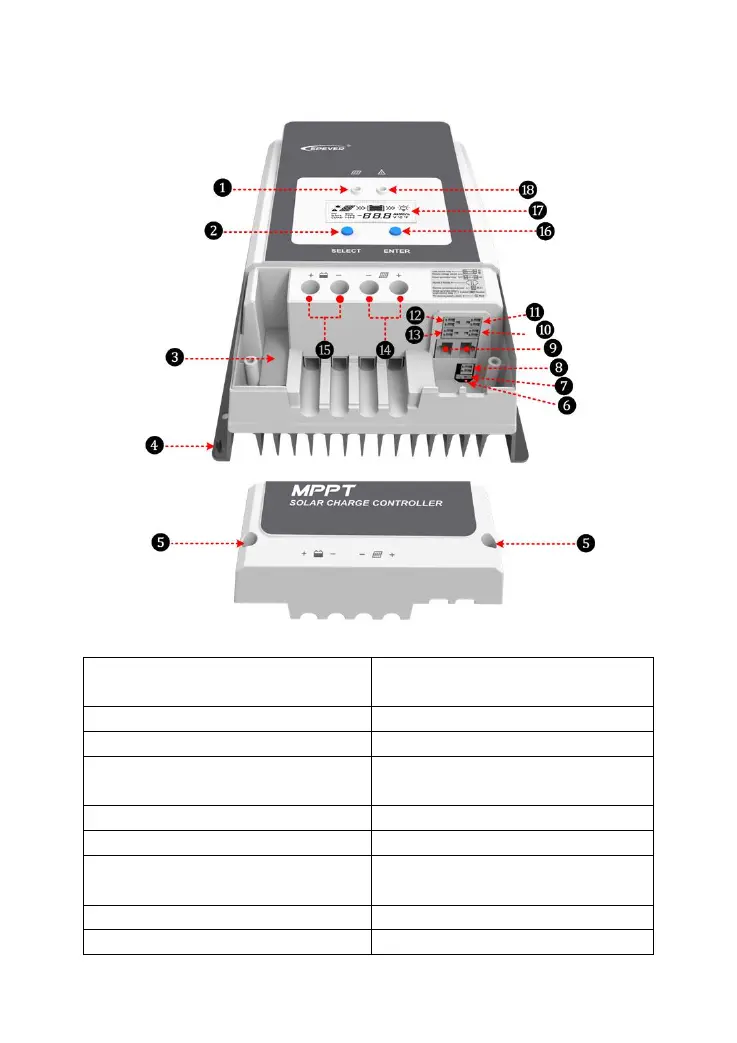

Figure 1 Product Characteristics
❶ Charging indicator
❿ (Utility/Generator) dry contact ON
interface
❷ SELECT button
⓫ RBVS interface
(4)
❸ External fuse
⓬ (Load) dry contact interface
(5)
❹ Grounding terminal
⓭ (Utility/Generator) dry contact OFF
interface
❺ Screw hole(M4)
⓮ PV terminals
(6)
❻ (PV reverse polarity) alarm indicator
⓯ Battery terminals
(6)
❼ (Generator/Load) dry contact enable
switch
⑴
⓰ ENTER button
❽ RTS interface
(2)
⓱ LCD
❾ RS485 port(5VDC/200mA)
(3)
⓲ Fault indicator

Epever Tracer AN series Specifications

General

Brand	Epever
Model	Tracer AN series
Category	Controller
Language	English
