40

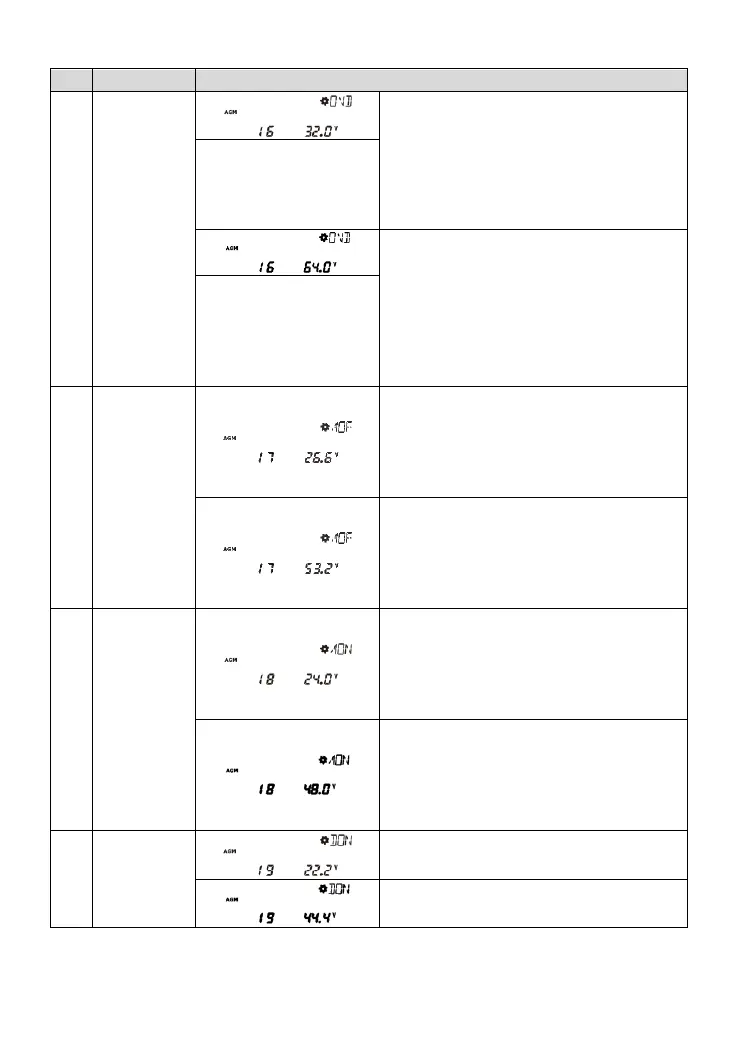

NO.
Instruction
Setting
16
Over voltage
disconnect
voltage
User define for the 24V system: 21.6~32.0V
Step size: long press for 1V, short press for 0.1V
AGM(Default)/GEL/FLD:
32.0V
LFP8: 29.0V
LNCM7: 30.0V
User define for the 48V system: 43.2~64.0V
Step size: long press for 1V, short press for 0.1V
AGM(Default)/GEL/FLD:
64.0V
LFP15: 54.5V
LFP16: 58.0V
LNCM14: 60.0V
17
Auxiliary
module OFF
voltage
(namely,
Utility
charging OFF
voltage)
User define for the 24V system: 21.6~32.0V
Step size: long press for 1V, short press for 0.1V
NOTE: The difference between AOF and AON should
be larger than or equal to 0.5V, or else the setting
cannot be saved.
User define for the 48V system: 43.2~64.0V
Step size: long press for 1V, short press for 0.1V
NOTE: The difference between AOF and AON should
be larger than or equal to 1V, or else the setting
cannot be saved.
18
Auxiliary
module ON
voltage
(namely,
Utility
charging ON
voltage)
User define for the 24V system: 21.6~32.0V
Step size: long press for 1V, short press for 0.1V
NOTE: The difference between AOF and AON should
be larger than or equal to 0.5V, or else the setting
cannot be saved.
User define for the 48V system: 43.2~64.0V
Step size: long press for 1V, short press for 0.1V
NOTE: The difference between AOF and AON should
be larger than or equal to 1V, or else the setting
cannot be saved.
19
Dry contact
ON voltage
User define for the 24V system: 21.6~32.0V
Step size: long press for 1V, short press for 0.1V
User define for the 48V system: 43.2~64.0V
Step size: long press for 1V, short press for 0.1V
