Installing the tractor in the rear push position
Before installing the tractor in the rear push position, remove it from its current position. If the tractor
is in the front push position, remove it by pressing the tractor’s lock tabs while lifting it out. If the
tractor is in the pull position, remove it as described in “Removing the tractor from the rear push
position” on page 25.
1. Make sure the printer is turned off. Then open the paper guide cover by pulling its back edge
forward.

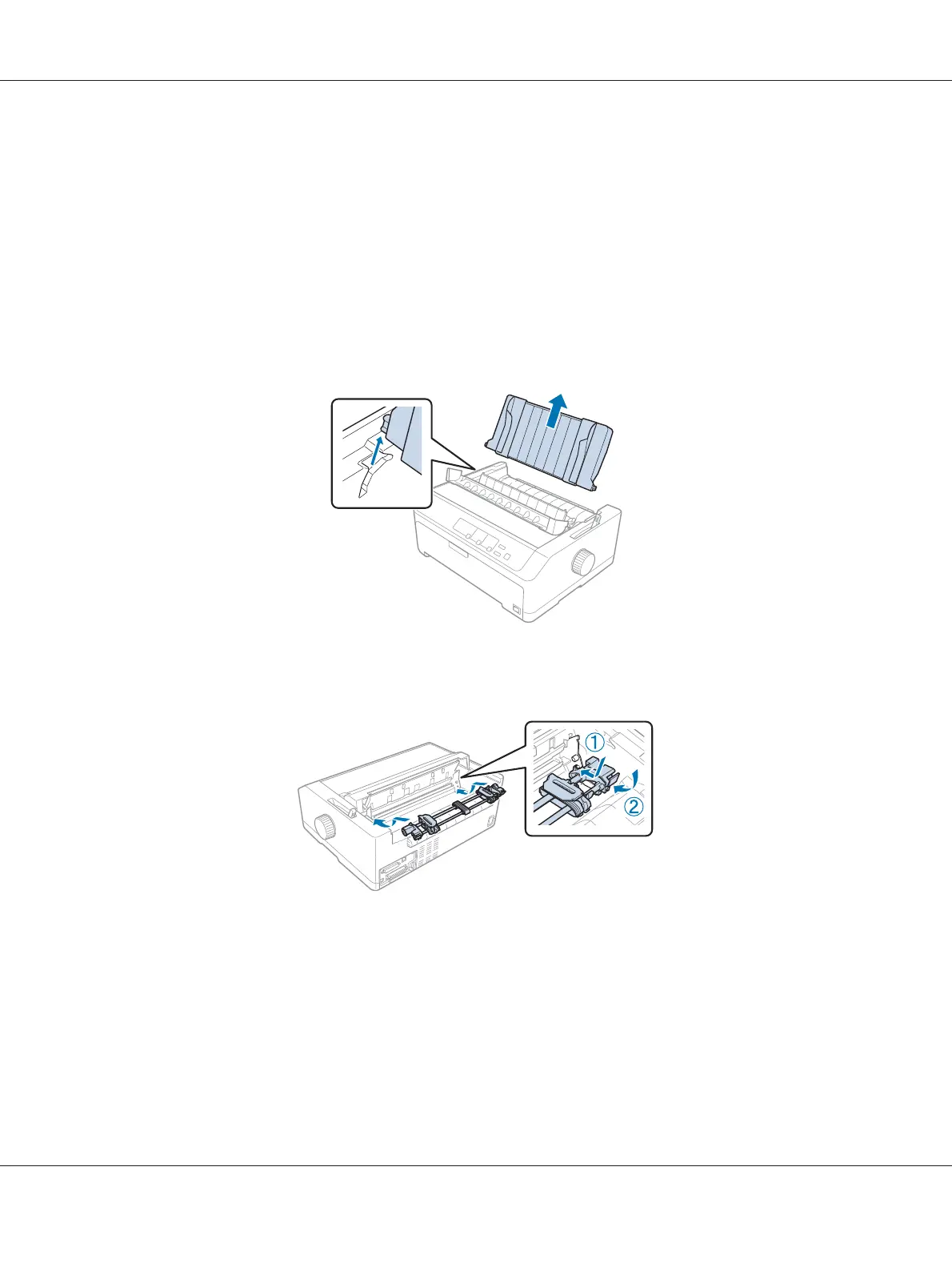

2. Slide the sheet guide along the path and lift it at an angle to remove it.
3. Lower the tractor into the printer’s mounting slots and press down both ends of the tractor to
make sure that it is firmly seated.
See “Loading paper with the rear push tractor” on page 22 for instructions on loading continuous
paper using the rear push tractor.
Loading paper with the rear push tractor
Follow these steps to load paper using the rear push tractor:
1. Make sure the printer is turned off.
LQ-590II/LQ-590IIN/LQ-2090II/LQ-2090IIN User’s Guide
Paper Handling 22
